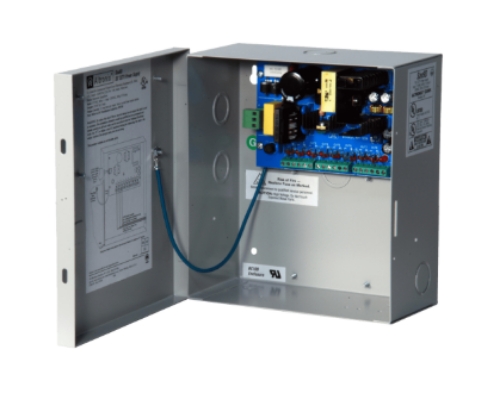

Altronix SAV9D CCTV Power Supply, 9 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC, Grey Enclosure

**Altronix SAV9D CCTV Power Supply, 9 PTC Class 2 Outputs, 12VDC @ 5A, 115VAC, Grey Enclosure, Lifetime Warranty

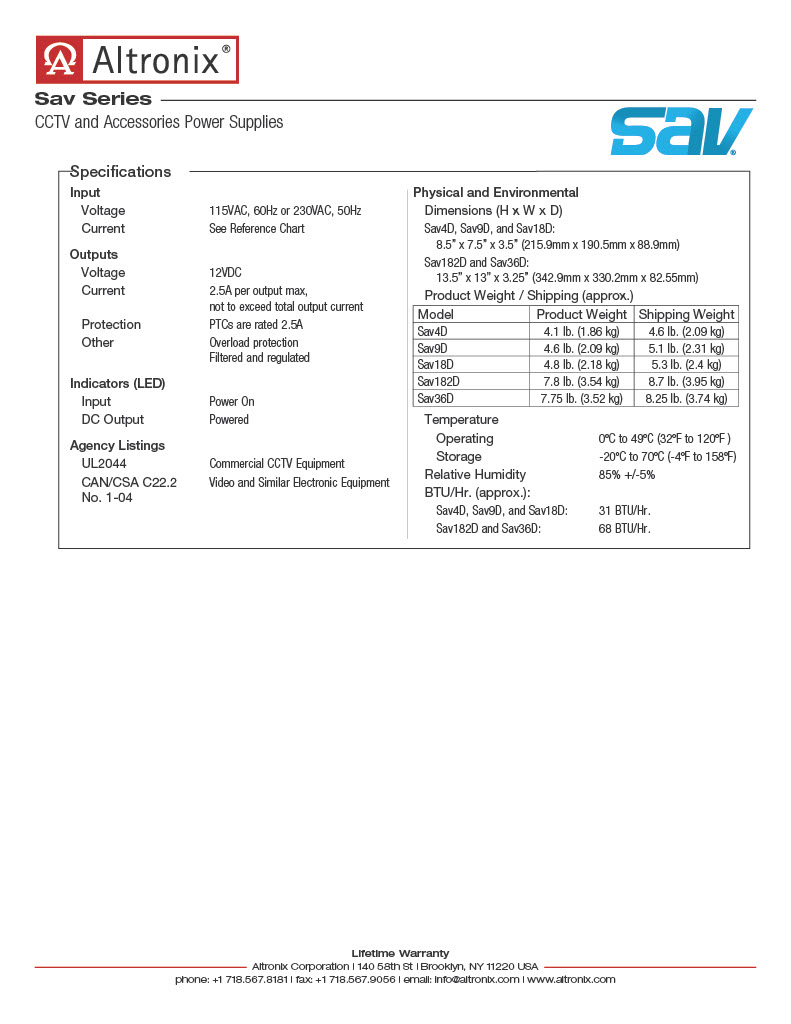

Specifications:**

Input: 115VAC 60Hz, 1.5A / 230VAC 50Hz, 0.75A.

Output: 12VDC @ 5A total output current (0.55A per device, 2.5A max.). 9 Class 2 Rated PTC protected power limited auto-resettable outputs. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Features: Power LEDs. Field installable 3-wire line cord with integral strain relief. Unit maintains camera synchronization. Ease of installation saves time & eliminates costly labor.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 31 BTU/Hr. System AC input VA requirement: 172.5VA.

Enclosure: Wall mount enclosure for indoor use.

Dimensions: 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:4.6 Lbs. (2.08 kg). - Shipping Weight: 5.1 Lbs. (2.31 kg).
