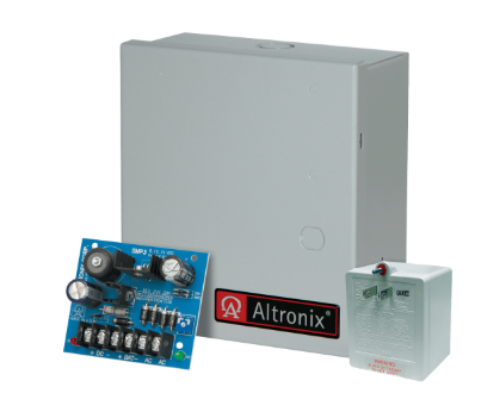

Altronix SMP3ET High Current Power Supply/Charger, 16VDC Input from TP1640 Plug-in Transformer, 6/12VDC at 2.5A Output, Grey Enclosure

**Altronix SMP3ET High Current Power Supply/Charger, 16VDC Input from TP1640 Plug-in Transformer, 6/12VDC at 2.5A Output, Grey Enclosure, Lifetime Warranty

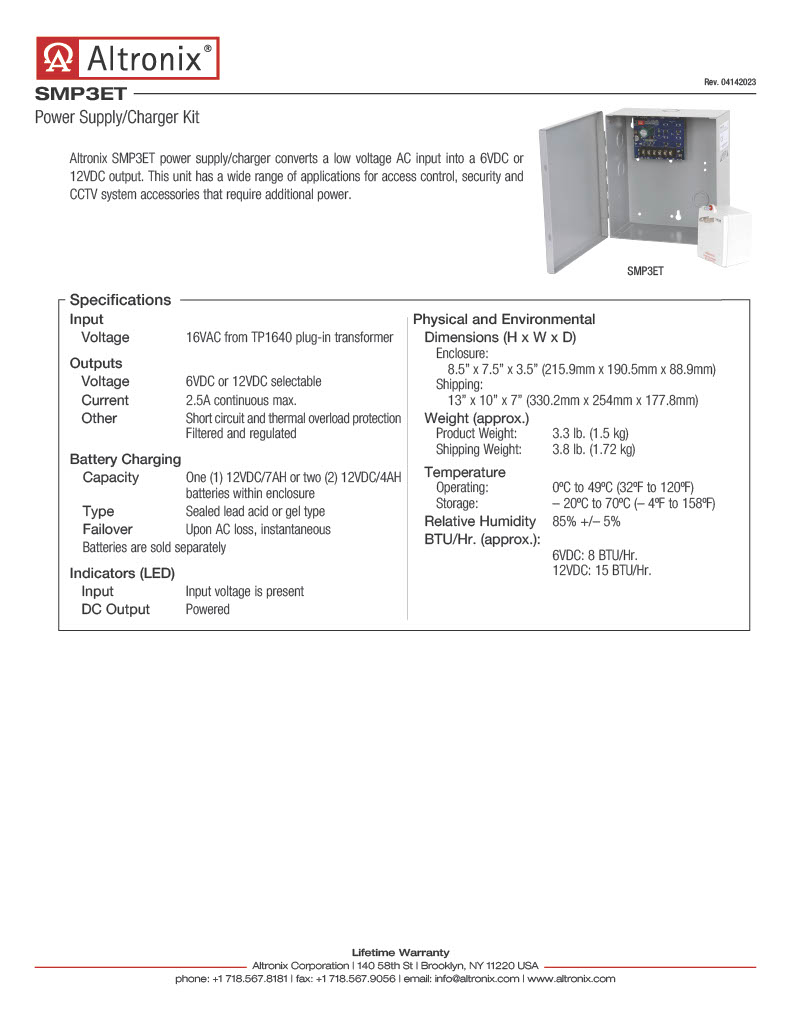

Specifications:**

Input: 16VDC from TP1640 plug-in transformer.

Output: 6VDC or 12VDC selectable output. 2.5A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Battery short circuit protection (circuit breaker).

Visual Indicators: AC input and DC output LED indicators.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Storage: - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 6VDC: 8 BTU/Hr. - 12VDC: 15 BTU/Hr. System AC input VA requirement: 6VDC/12VDC: 276VA.

*Batteries sold separately

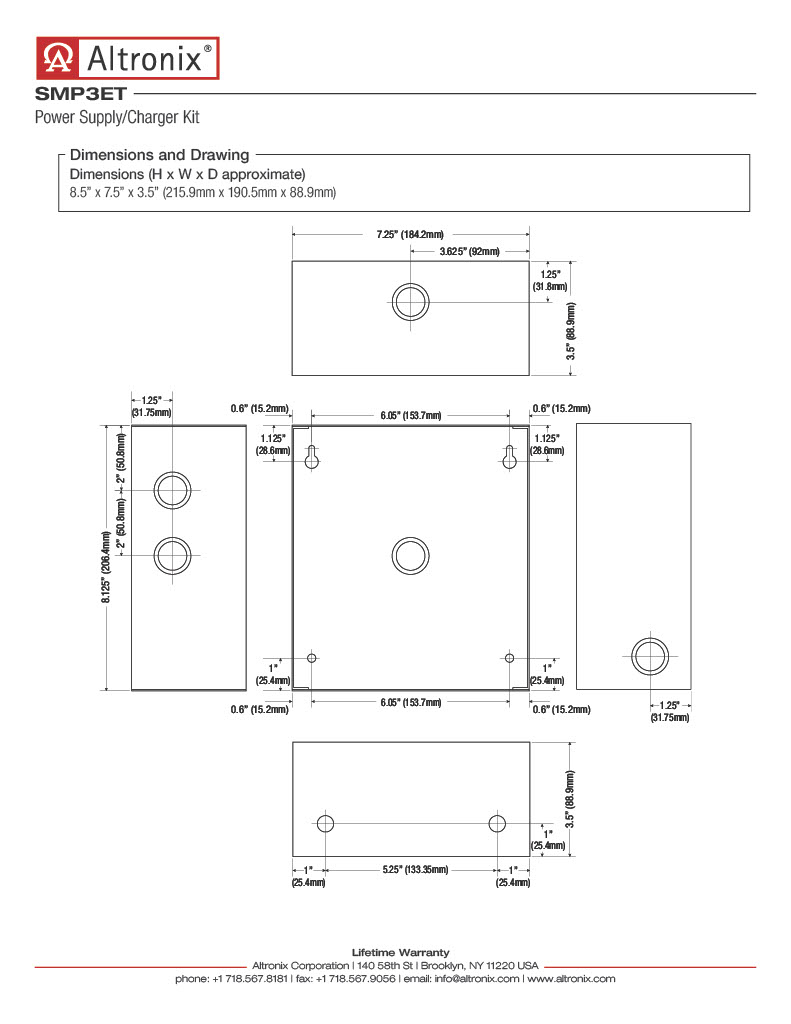

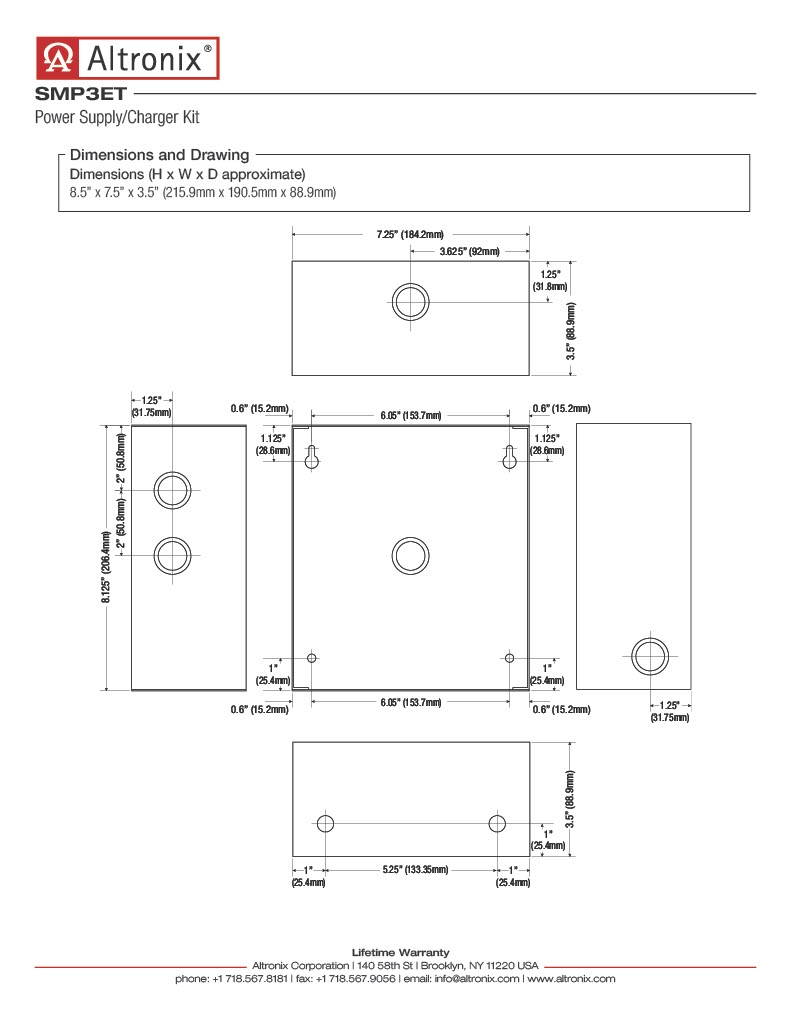

Enclosure: Wall mount enclosure for indoor use. Accommodates up to 1 12VDC/7AH Batteries. Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Product Weight: 3.3 Lbs. (1.5 kg). Shipping Weight: 3.8 Lbs. (1.72 kg).
