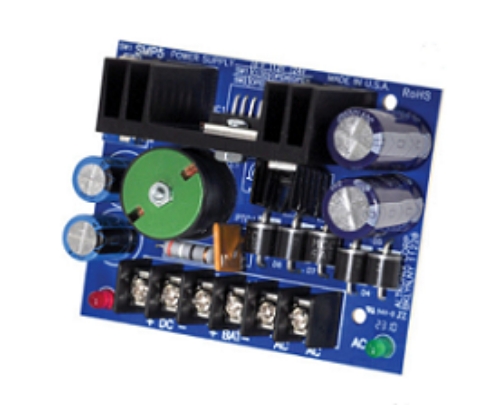

Altronix SMP5 Power SMP5 Power Supply Charger, Single Output, 6/12/24VDC @ 4A, 24/28VAC, Board

Altronix SMP5 Power SMP5 Power Supply Charger, Single Output, 6/12/24VDC @ 4A, 24/28VAC, Board, Lifetime Warranty

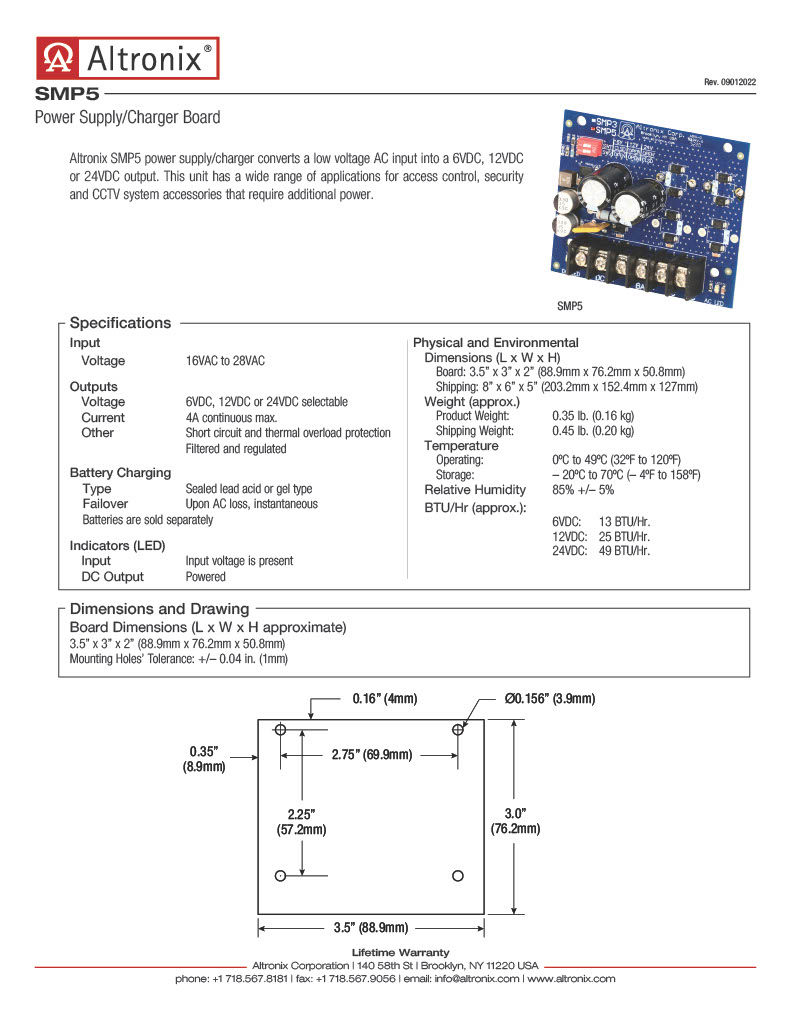

Specifications:

Input: 6VDC applications use TP1640. 12VDC applications use T2428100. 24VDC applications use T2428175.

Output: 6VDC, 12VDC or 24VDC selectable output. 4A supply current. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Zero voltage drop when switching over to battery backup.

Visual Indicators: AC input and DC output LED indicators.

Electrical:

Temperature: Operating: 0 Degree C to 49 Degree C (32 Degree F to 120 Degree F).

Storage: - 20 Degree C to 70 Degree C ( - 4 Degree F to 158 Degree F).

Relative Humidity 85% +/- 5%.

BTU/Hr (approx.): 6VDC: 13 BTU/Hr. 12VDC: 25 BTU/Hr. 24VDC: 49 BTU/Hr.

System AC input VA requirement: 6VDC: 55.2VA. 12VDC/24VDC: 115VA.

Features: Extremely compact design. Includes battery leads. Snap Trac compatible (order Altronix model number ST3)

Dimensions (approximate): 3"W x 3.5"L x 2"H (76.2 mm W x 88.9 mm L x 50.8 mm H).

Product Weight:0.35 Lbs. (0.158 kg). Shipping Weight:0.45 Lbs. (0.204 kg).

Dimensions (approximate): 3"W x 3.5"L x 2"H (76.2 mm W x 88.9 mm L x 50.8 mm H). Weights (approximate): Product Weight: 0.35 Lbs. (0.158 kg). Shipping Weight: 0.45 Lbs. (0.204 kg).
