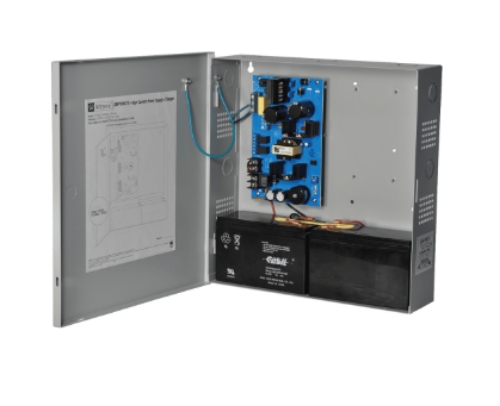

Altronix SMP7PMCTX Supervised Power Supply/Charger, 115VAC 60Hz at 2.5A Input, 12/24VDC at 6A Output, Grey Enclosure

*Altronix SMP7PMCTX Supervised Power Supply/Charger,  115VAC 60Hz at 2.5A Input, 12/24VDC at 6A Output, Grey Enclosure, Lifetime Warranty *

Specifications:

Input: 115VAC, 60Hz, 2.5A.

Output: 12VDC or 24VDC selectable output. 6A supply current. Filtered and electronically regulated outputs. Short circuit and thermal overload protection.

Battery Backup: Built-in charger for sealed lead acid or gel type batteries. Zero voltage drop when switching over to battery backup.

Supervision: AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators:

AC input and DC output LED indicators.

Temperature: Operating: 0 C to 49 C (32 F to 120 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 12VDC: 37 BTU/Hr. - 24VDC: 74 BTU/Hr. System AC input VA requirement: 287.5VA.

Enclosure: Wall mount enclosure for indoor use. Accommodates up to 2 12VDC/7AH Batteries.

*Batteries sold separately

Dimensions: 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:8.3 Lbs. (3.76 kg). - Shipping Weight: 9.3 Lbs. (4.22 kg).
