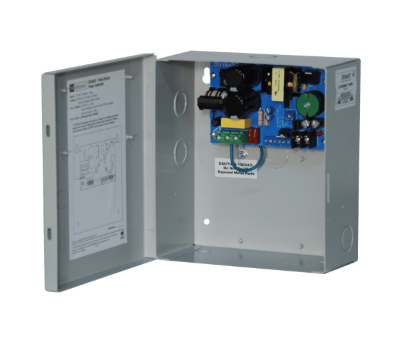

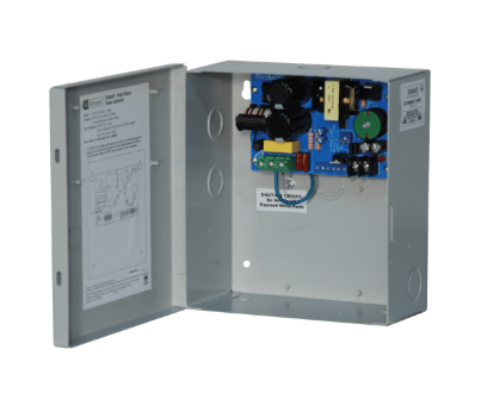

Altronix STRIKEIT2 Panic Device Controller / Power Supply/Charger, 24VDC @ 16A in-Rush, 115VAC, Grey Enclosure

**Altronix STRIKEIT2 Panic Device Controller / Power Supply/Charger, 24VDC @ 16A in-Rush, 115VAC, Grey Enclosure, Lifetime Warranty

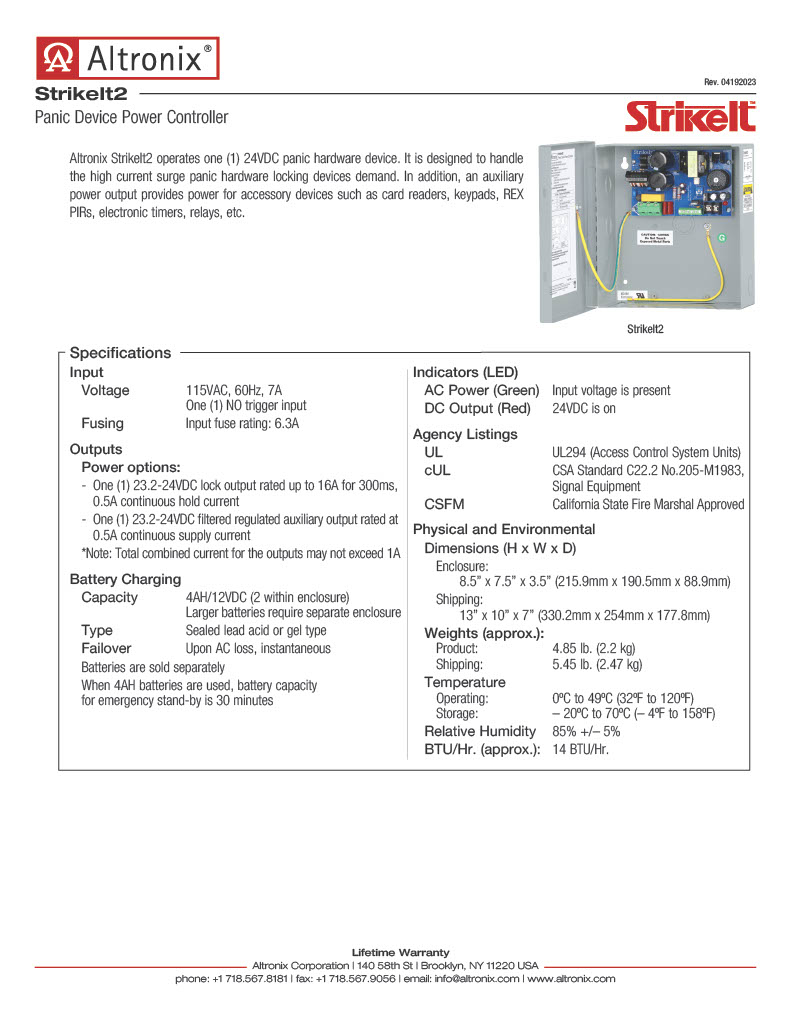

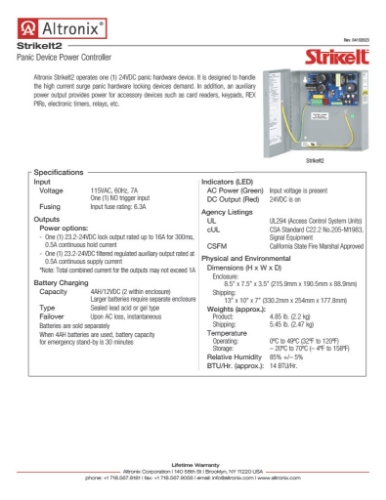

Specifications: ** Input: 115VAC 60Hz, 7A. 1 N/O trigger input.

Output: 1 23.2-24VDC lock output rated up to 16A for 300ms, 0.5A continuous hold current.* 1 23.2-24VDC filtered regulated auxiliary output rated @ 0.5A continuous supply current. * * Note: Total combined current for the outputs may not exceed 1A.

Battery Backup: Battery leads included. Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. When 4AH batteries are used, battery capacity for emergency stand-by is at least a 1/2 hour.

Visual Indicators: Green AC Power LED indicates 115VAC present. Red LED indicates presence of 24VDC.

Temperature: Operating 0 C to 49 C (32 F to 120 F). Storage - 20 C to 70 C ( - 4 F to 158 F). Relative Humidity 85% +/- 5%. BTU/Hr (approx.): 151 BTU/Hr. System AC input VA requirement: 805VA.

*Batteries sold separately

Enclosure: Wall mount enclosure for indoor use. Accommodates up to 2 12VDC/4AH Batteries.

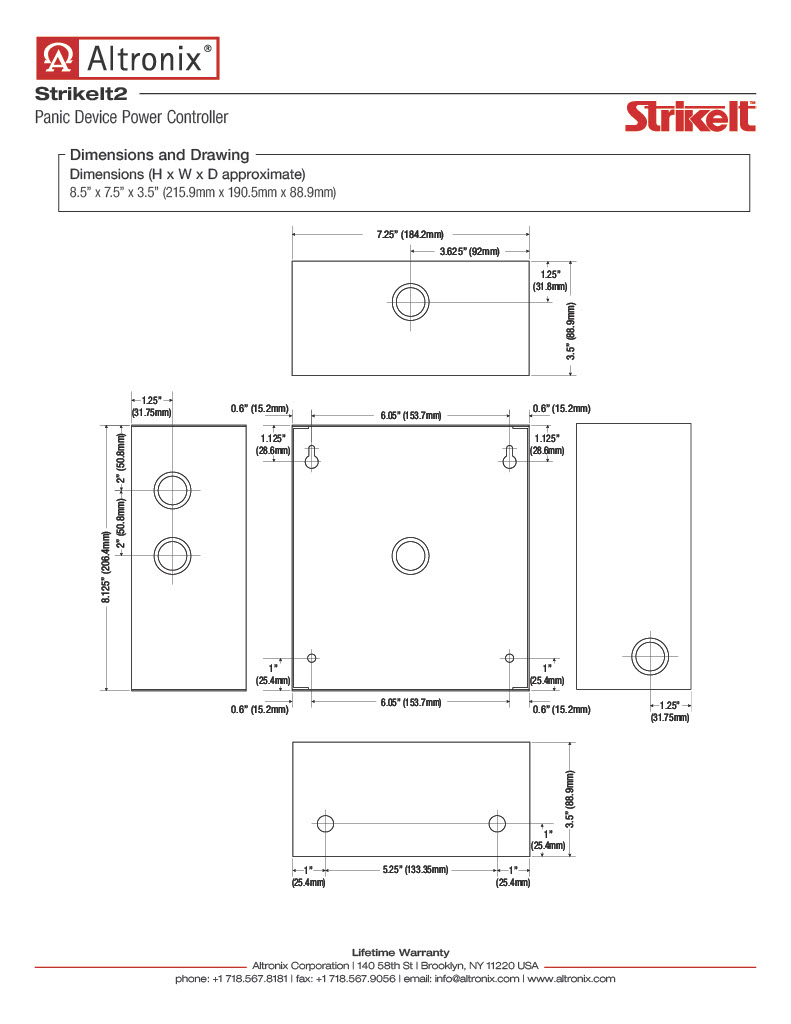

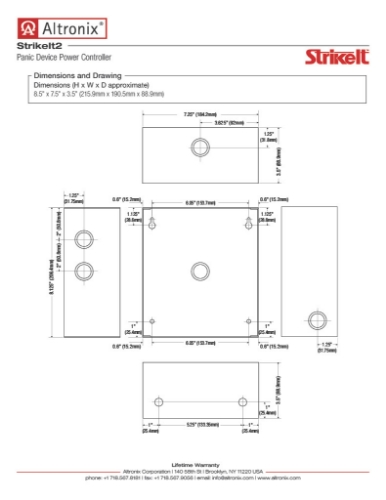

Dimensions:7 .5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D). 1/2" and 3/4" combination knockouts.

Product Weight:4.65 Lbs. (2.109 kg). - Shipping Weight: 5.75 Lbs. (2.608 kg).
