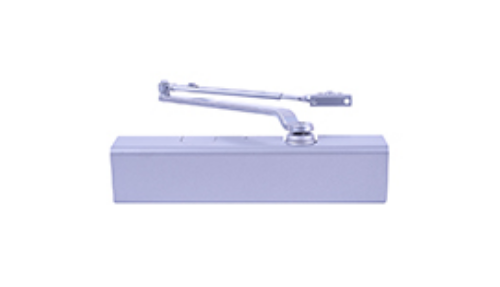

Arrow 5016NP Door Closer, Parallel Arm, Size 1-6, Full Plastic Cover

Arrow 5016NP Door Closer, Parallel Arm, Size 1-6, Full Plastic Cover

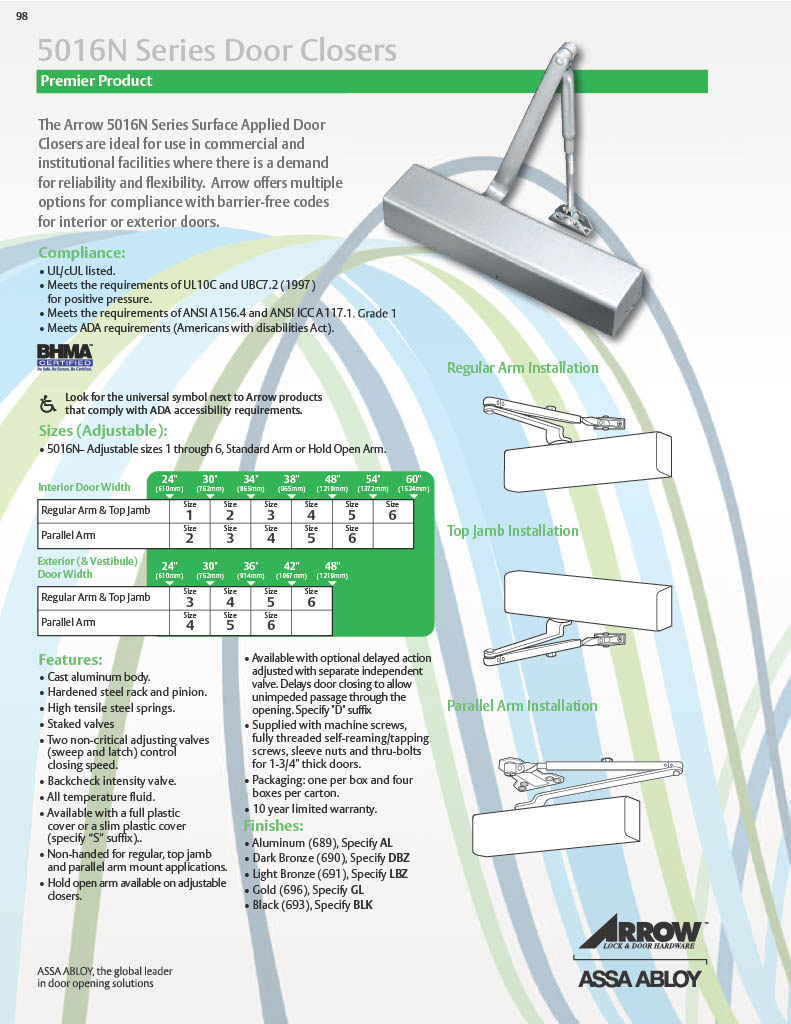

Sizes (Adjustable): 5016N closers are adjustable for spring sizes 1 through 6, Standard Arm or Hold Open Arm.

Mounting Style:Parallel Arm.

Features:

Cast aluminum body.

Hardened steel rack and pinion.

High tensile steel springs.

Staked valves.

Two non-critical adjusting valves (sweep and latch) control closing speed.

Backcheck intensity valve.

All temperature fluid.

Available with a full plastic cover or a slim plastic cover (specify S suffix).

Non-handed for regular, top jamb and parallel armmount applications.

Hold open armavailable on adjustable closers.

Available with optional delayed action adjustedwith separate independent valve. Delays door closing to allow unimpeded passage through the opening. Specify "D" suffix.

Supplied with machine screws, fully threaded self-reaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors.

10 year limited warranty.

Certification: UL/cUL listed. UL10C listed for positive pressure to comply with UBC-72 (1997). Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.

ADA/Americans with Disabilities Act: Meets ADA requirements (Americans with Disablities Act).

Model:Arrow 5016NP, 5016NP Arrow, 5016NHP 5016NH Arrow, Arrow 5016NHP
