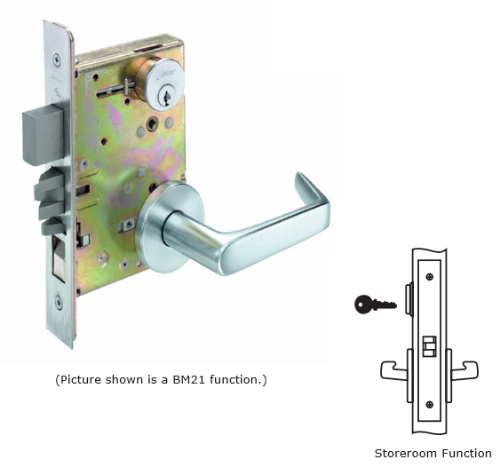

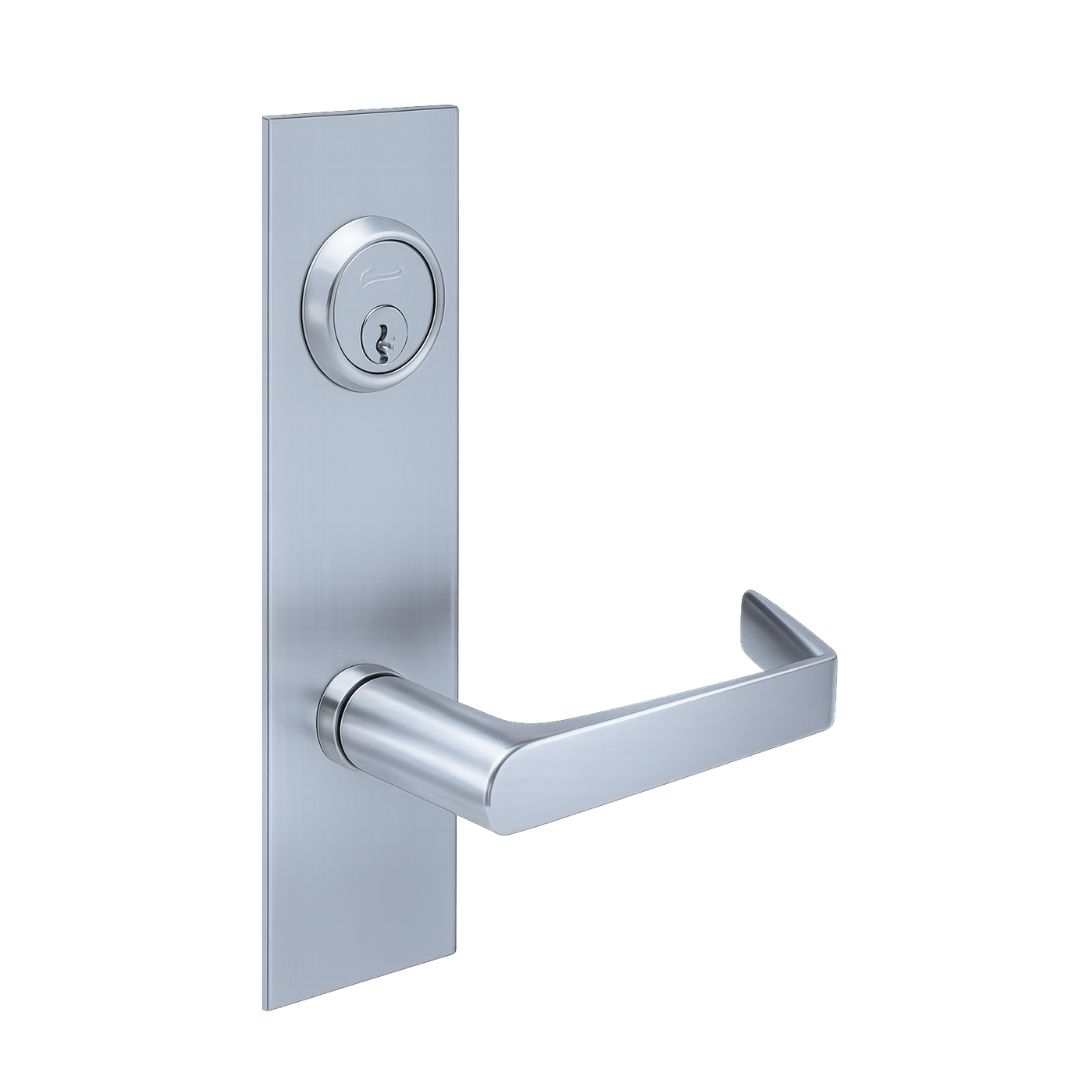

Arrow BM24 Storeroom Lock

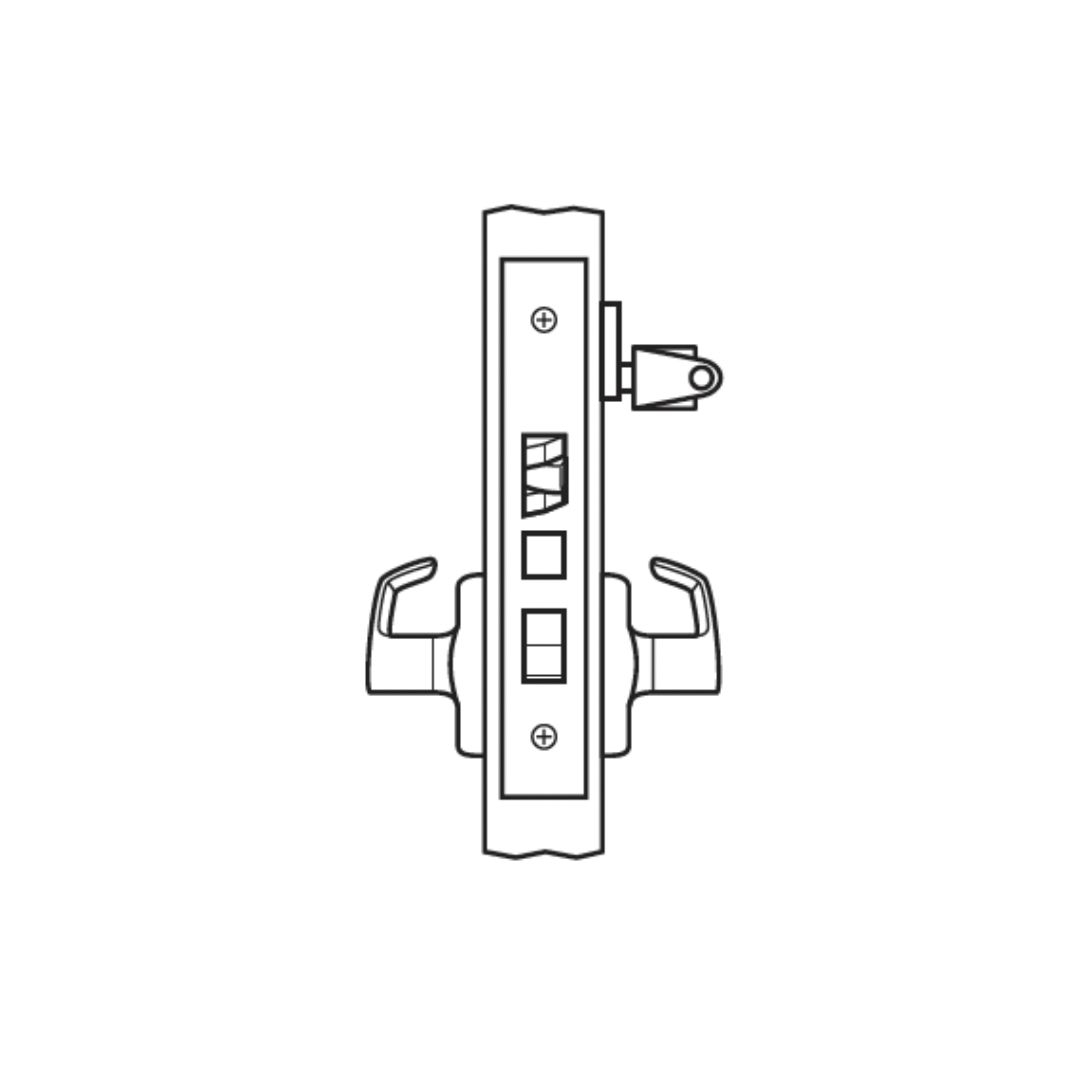

Latchbolt operated by lever inside and by key outside. Outside lever always rigid. Inside lever always free.

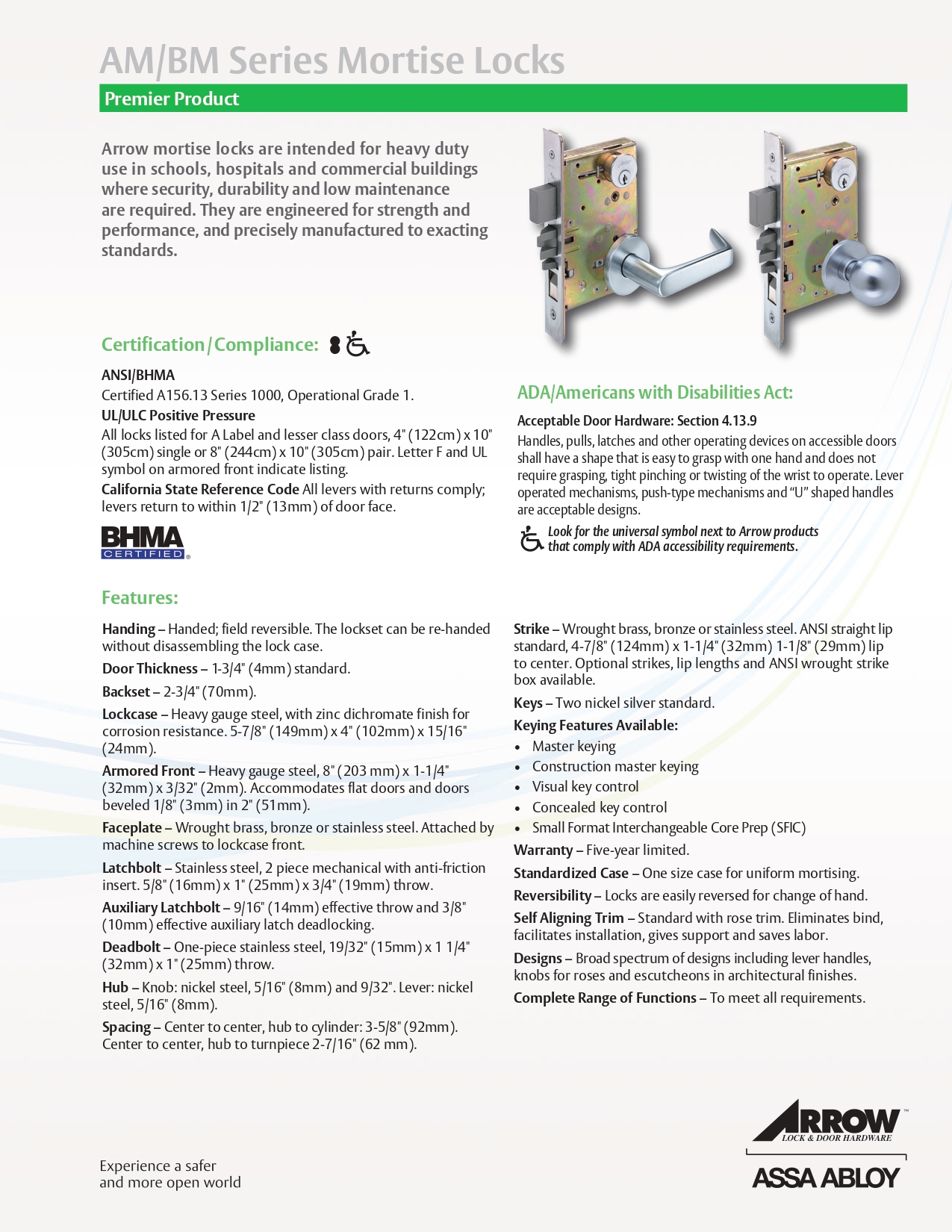

BM/AM Series Features:

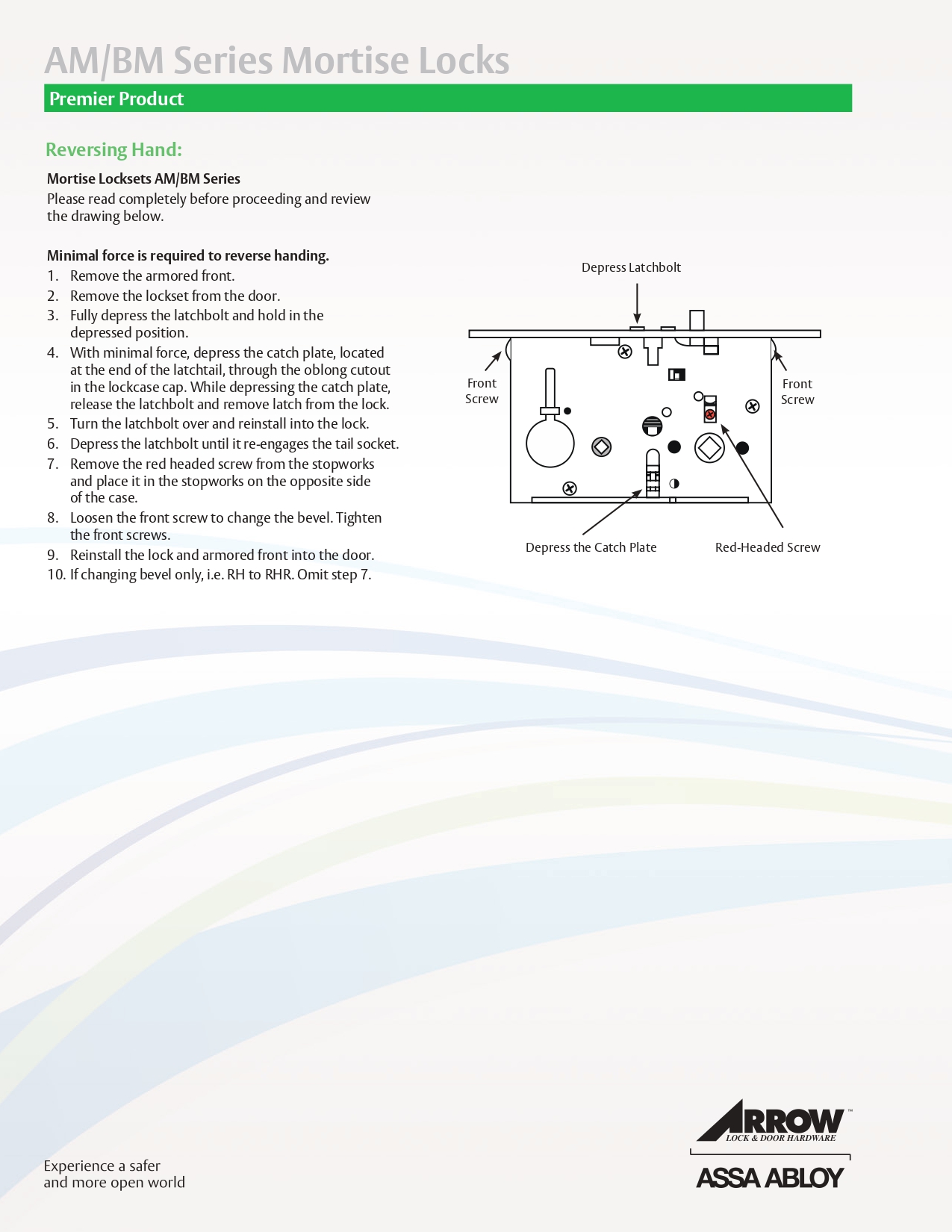

Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
Door Thickness: 1-3/4" (4mm) standard.
Backset: 2-3/4" (70mm).
Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Faceplate: Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.

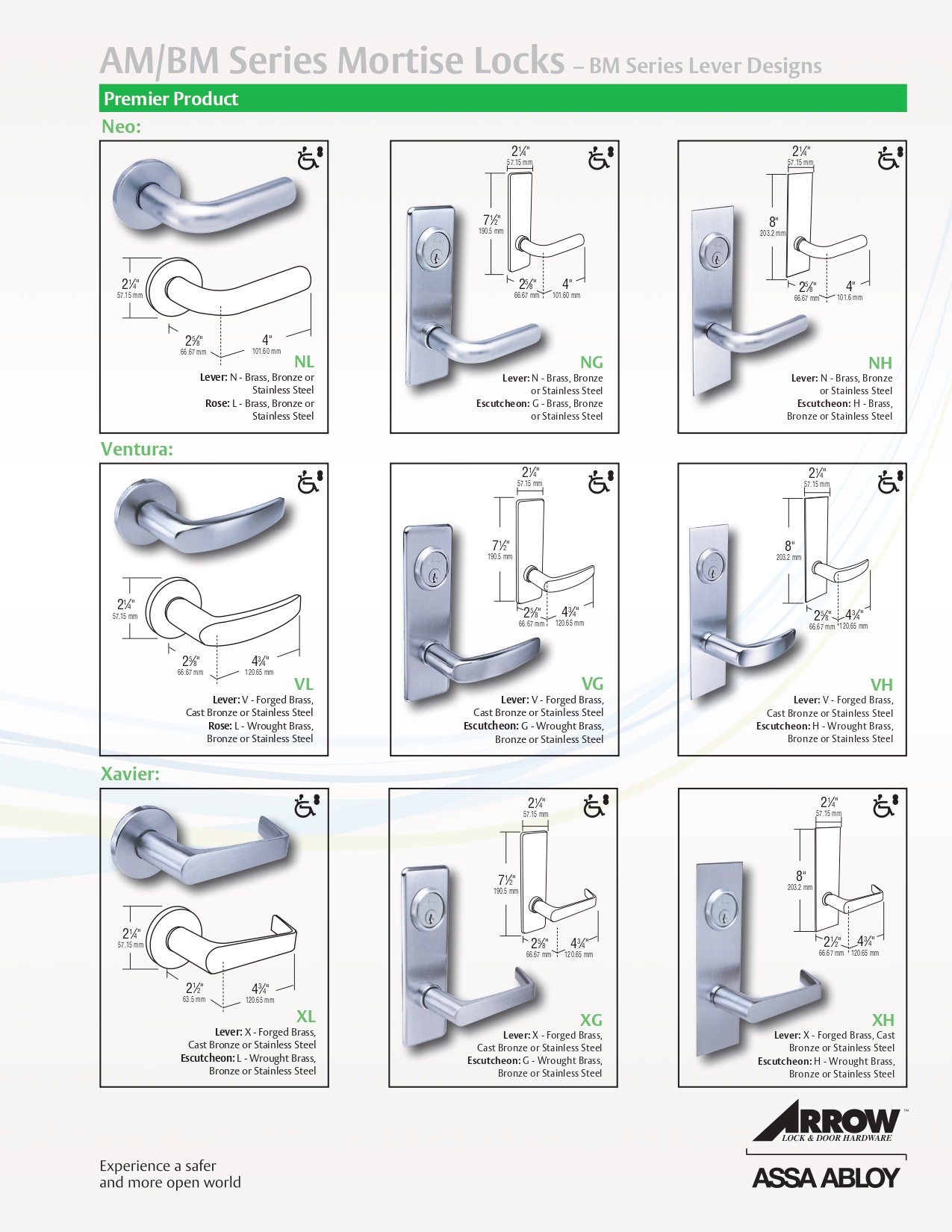

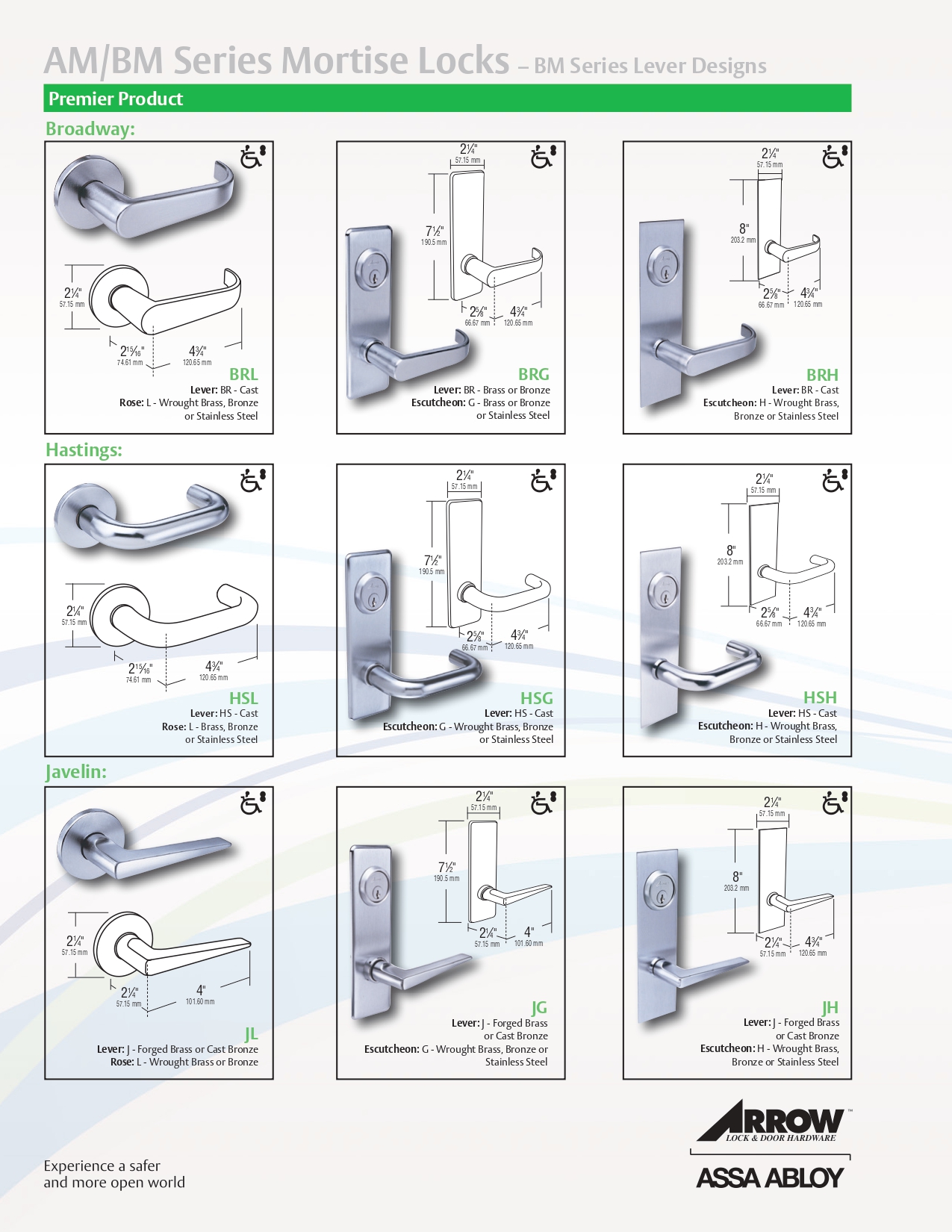

Hub Knob: nickel steel, 5/16" (8mm) and 9/32". Lever: nickelsteel, 5/16" (8mm).
Spacing: Center to center, hub to cylinder: 3-5/8" (92mm). Center to center, hub to turnpiece 2-7/16" (62 mm).
Strike: Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strikebox available.
Keyway - A keyway standard.
Keys: Two nickel silver standard.
Warranty: Five-year limited.

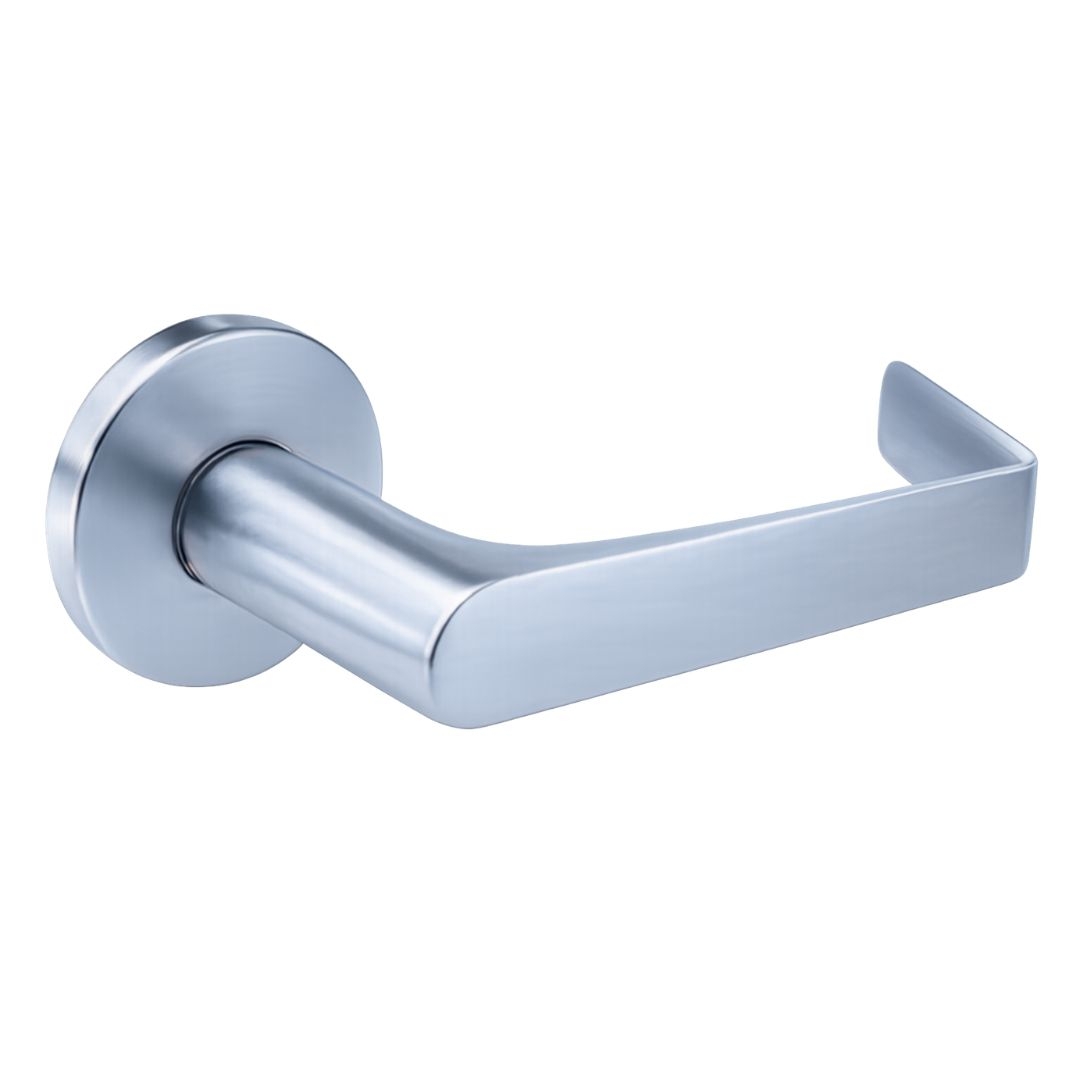

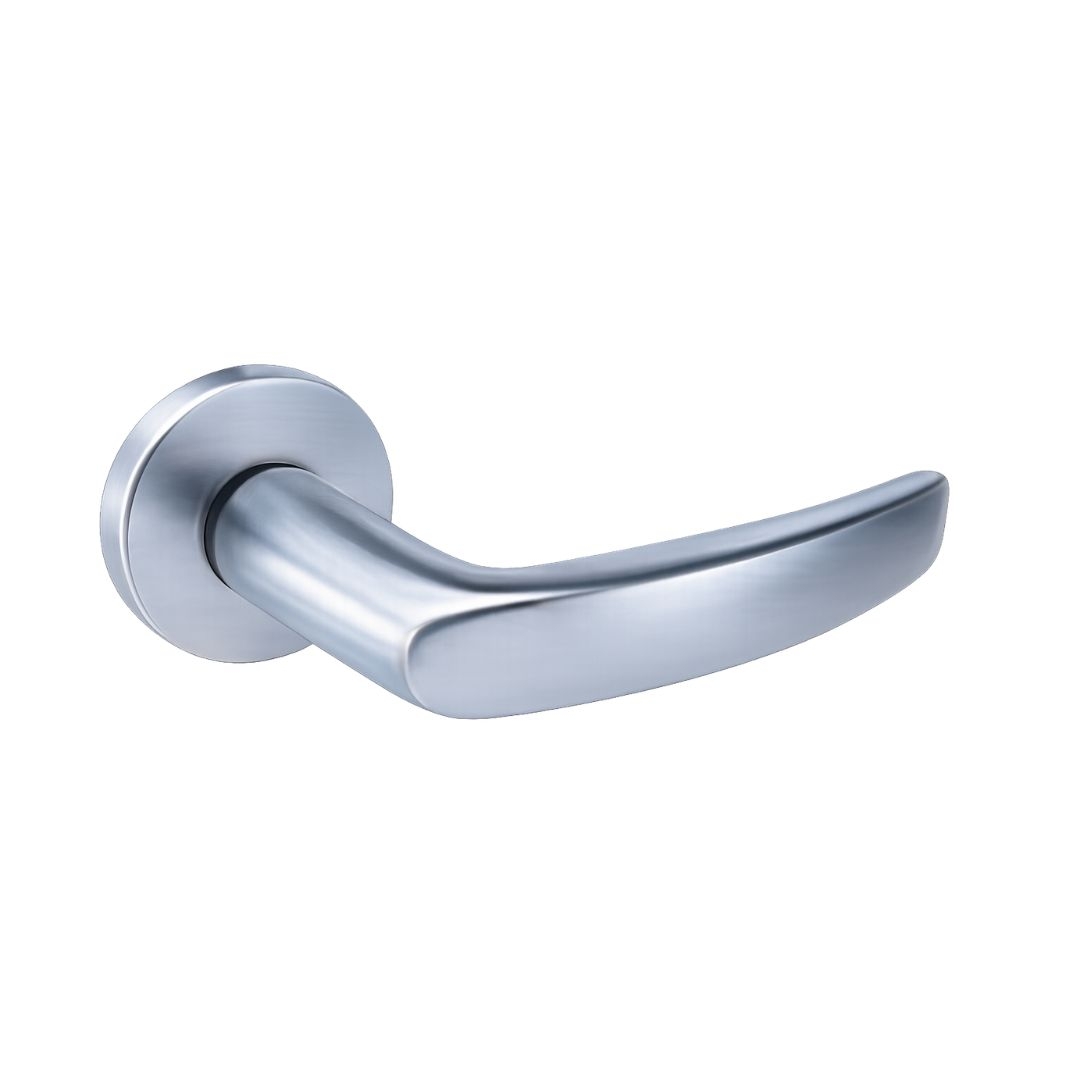

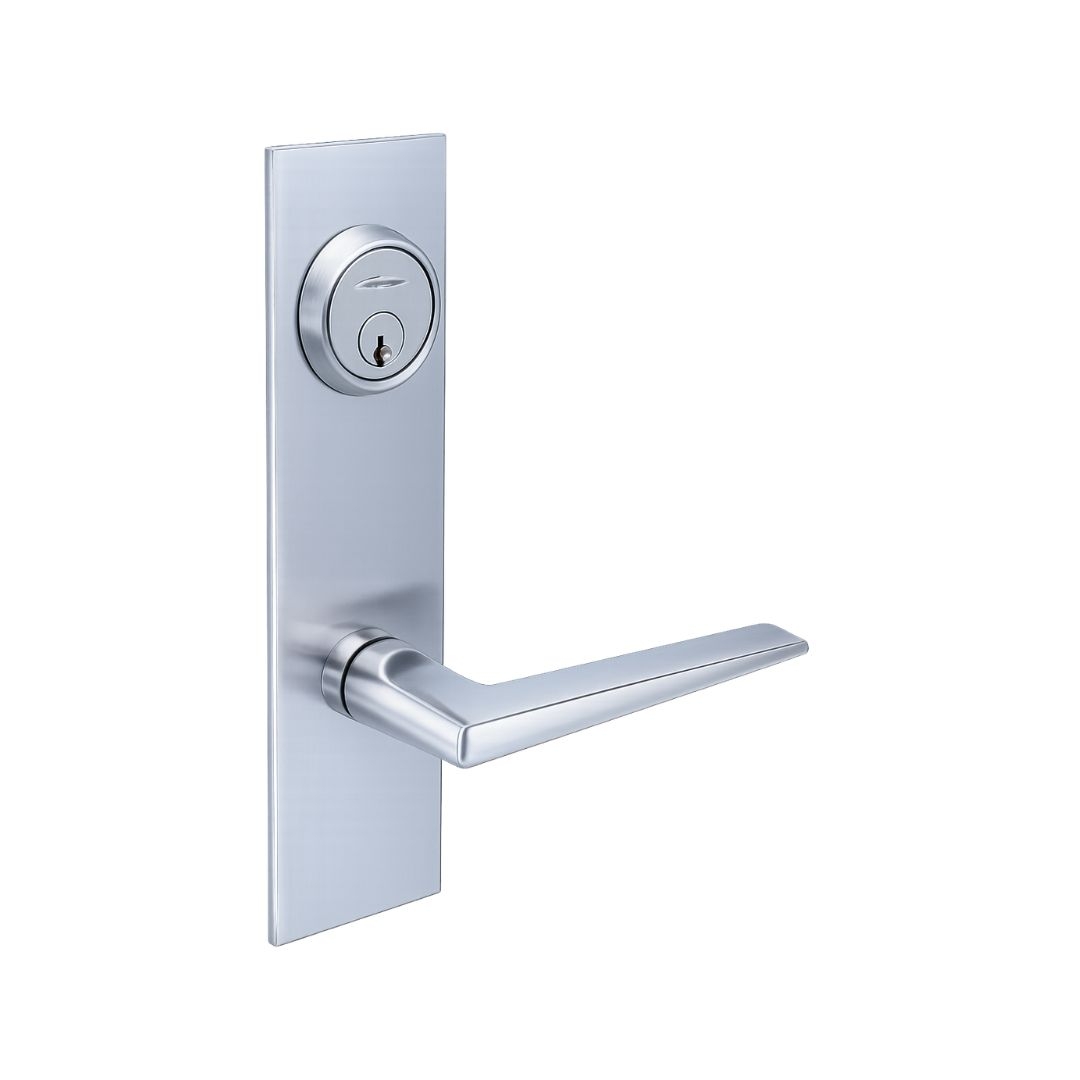

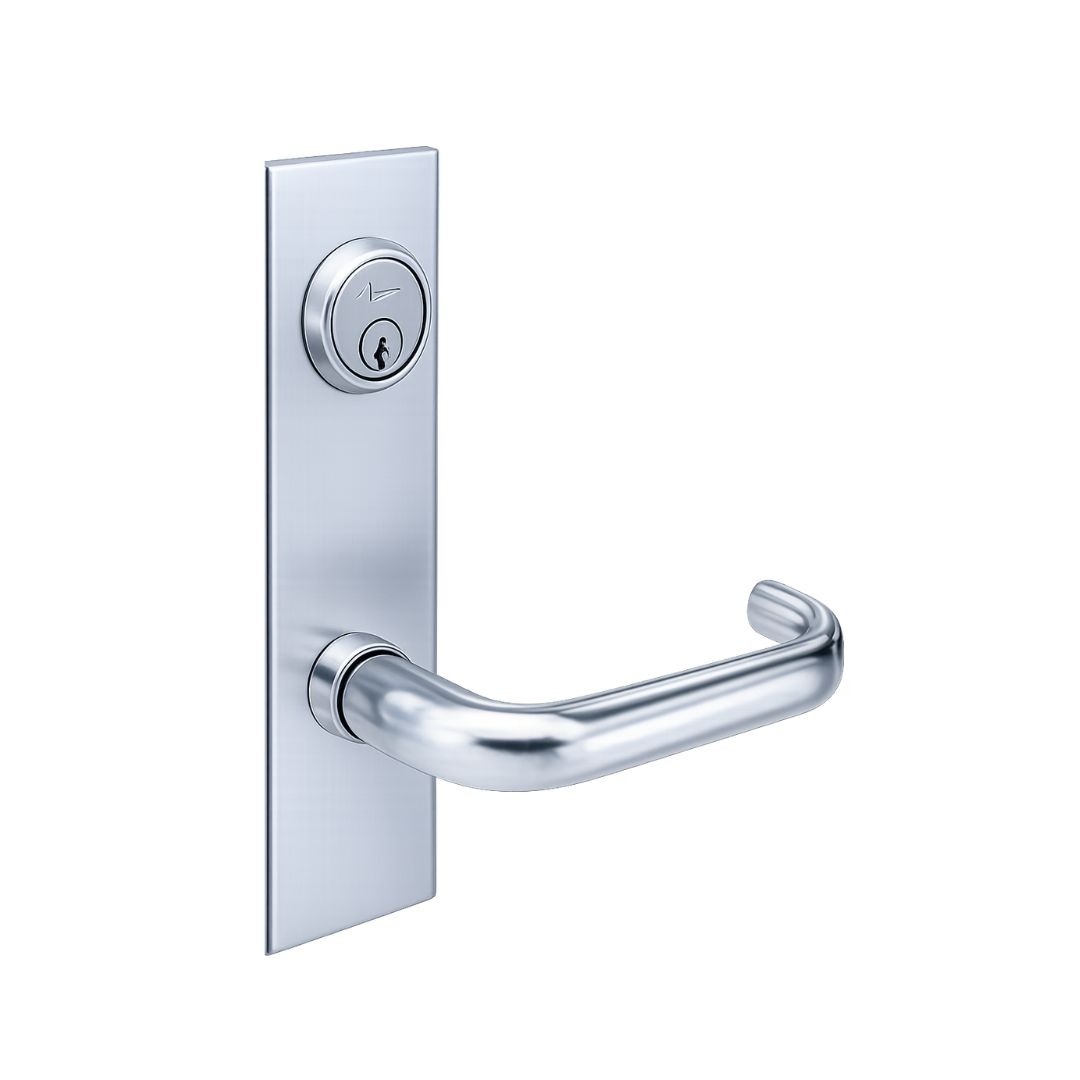

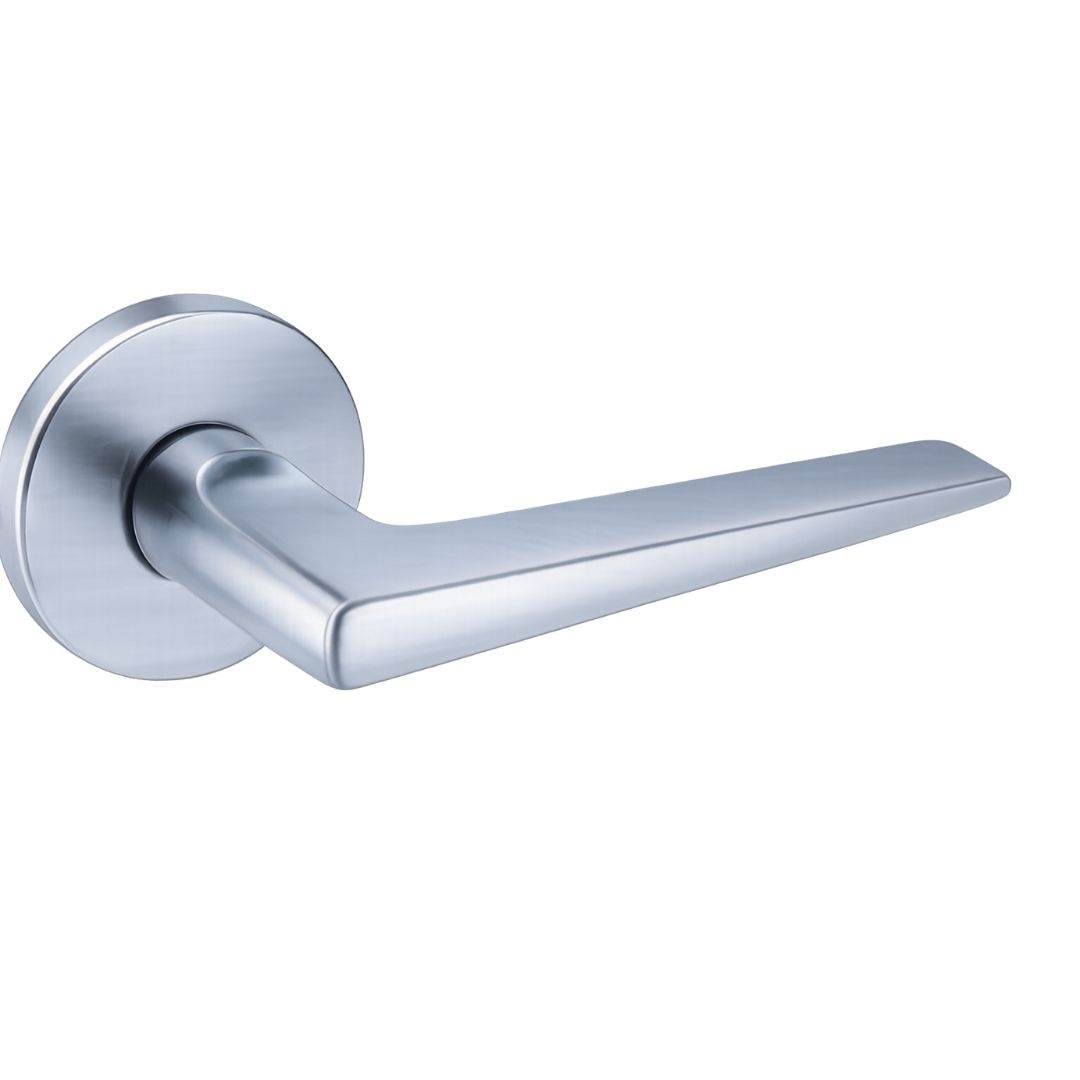

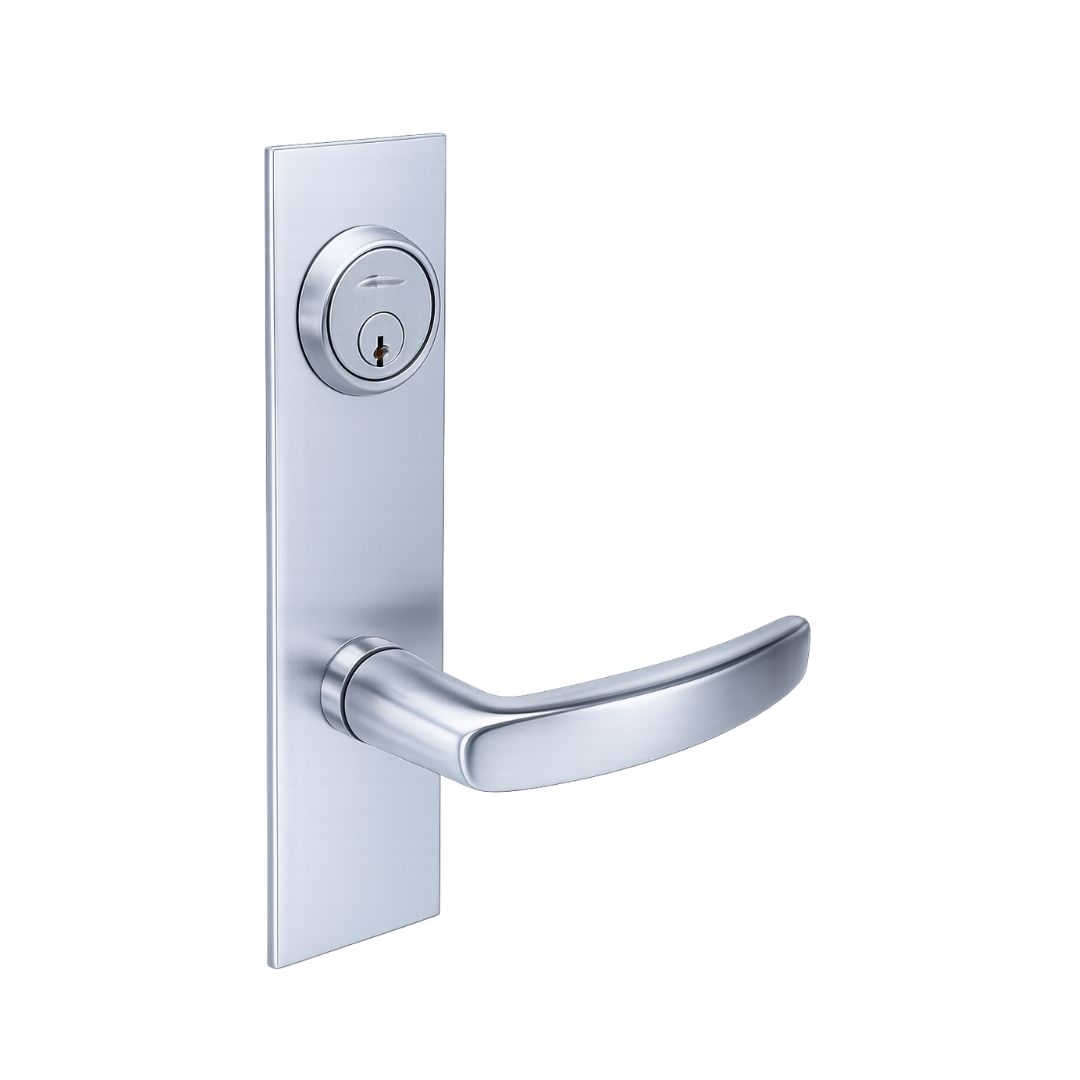

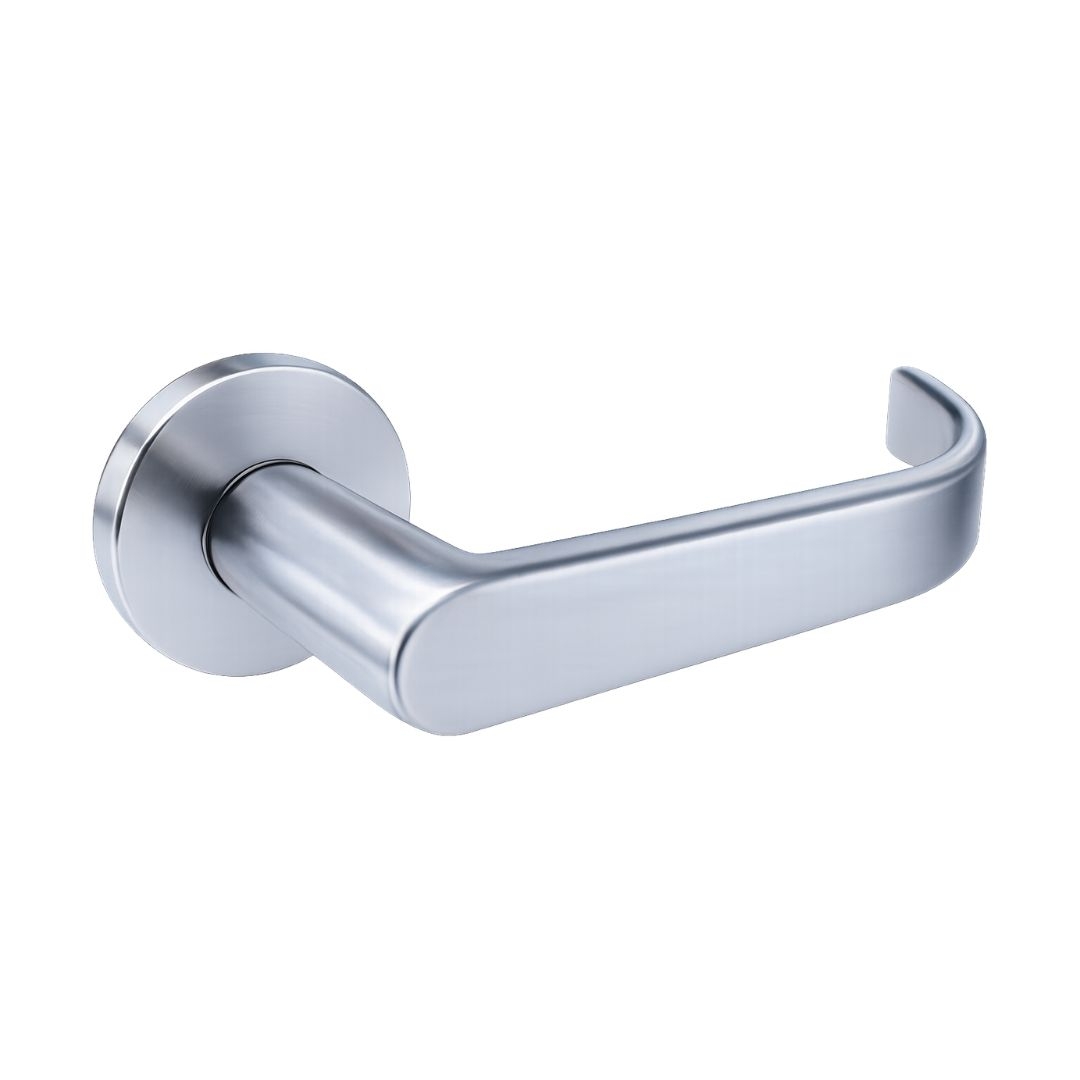

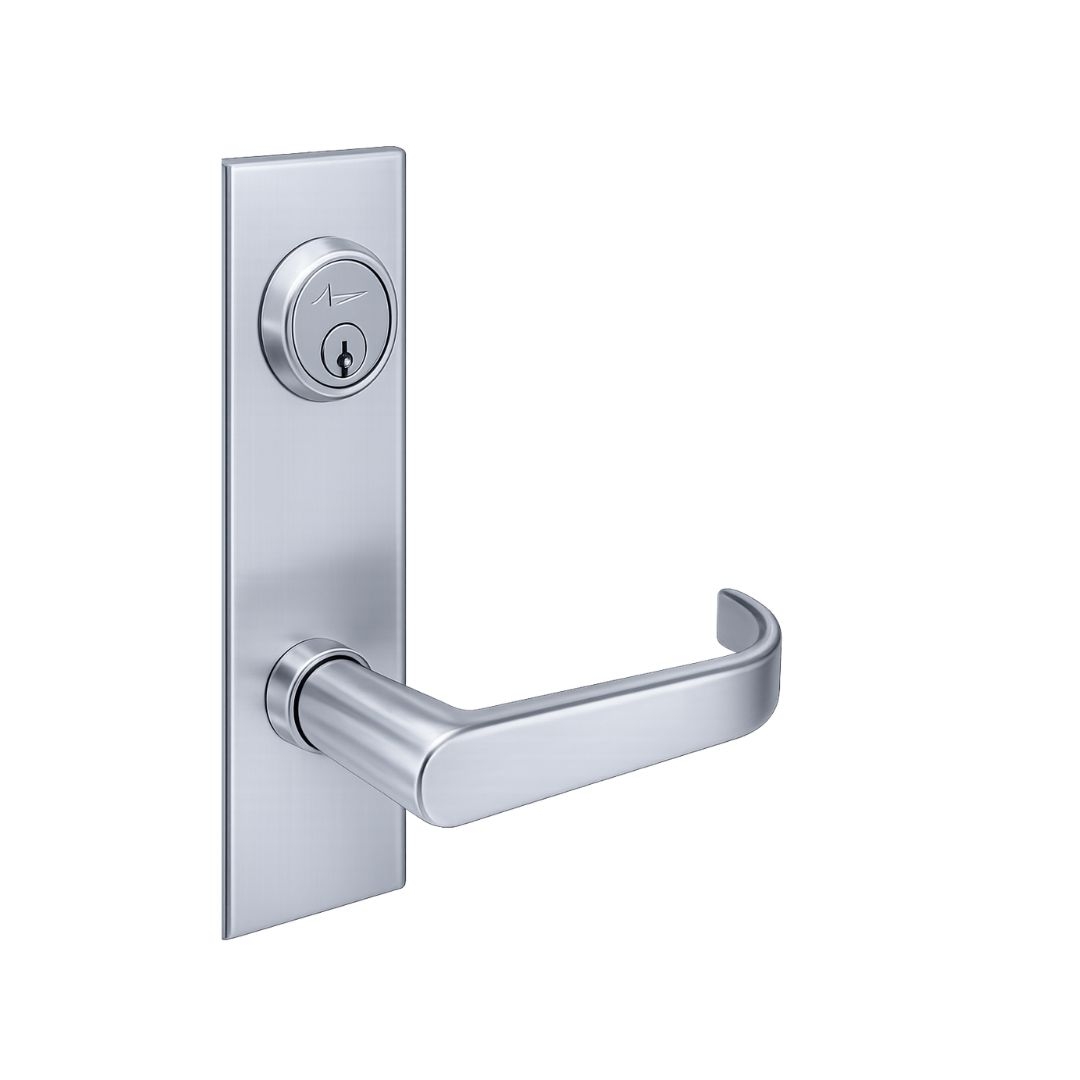

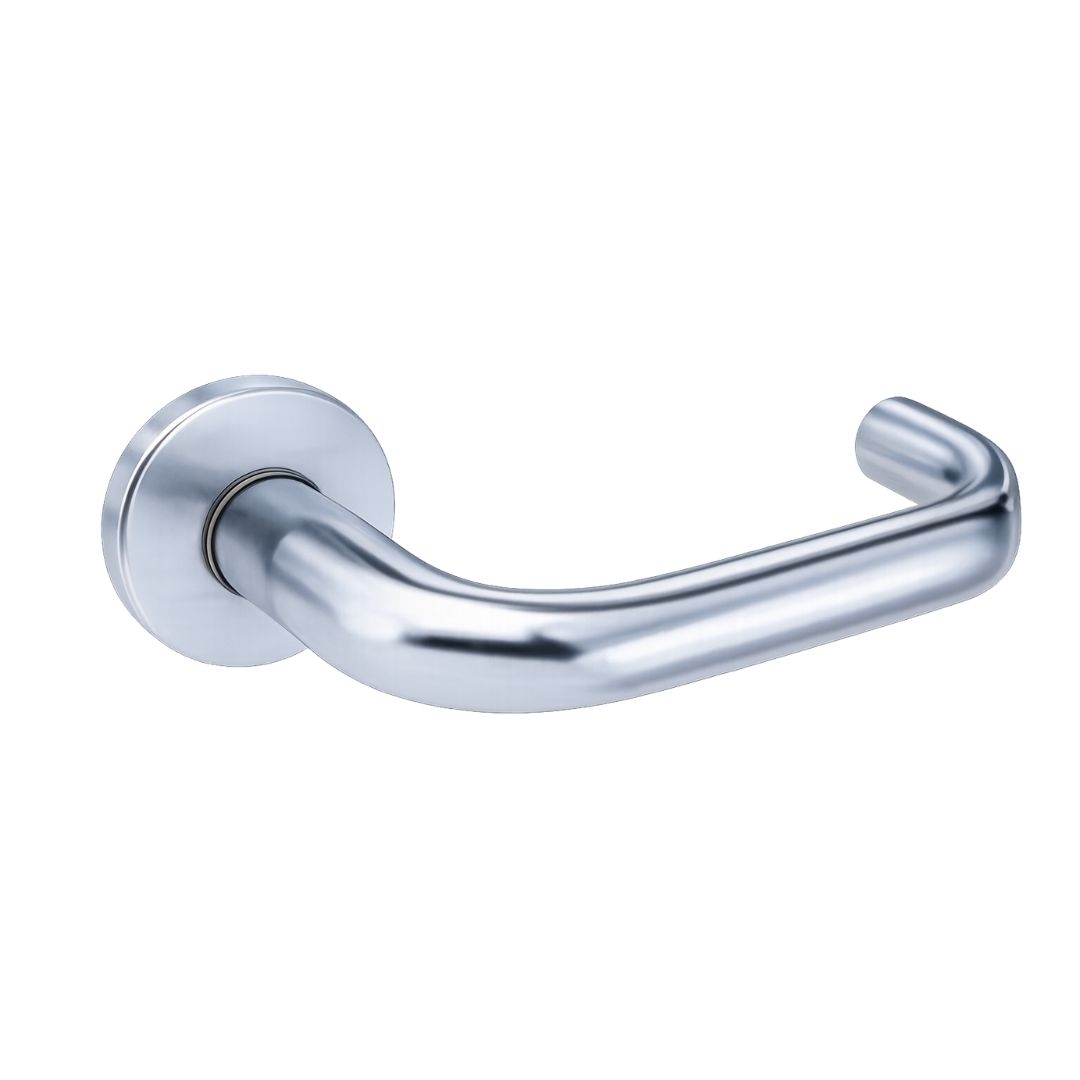

Model: Arrow BM24, XH, VH, JH, HSH, BRH, XL, VL, JL, HSL, BRL, 26D, US26D, 03, 3, US3, 10B, US10B, 10, US10, BM24XH, BM24VH, BM24JH, BM24HSH, BM24XH26D, BM24XHUS26D, BM24XH03, BM24XHUS3, BM24XH10B, BM24XHUS10B, BM24XH10, BM24XHUS10, BM24VH26D, BM24VHUS26D, BM24VH03, BM24VHUS3, BM24VH10B, BM24VHUS10B, BM24VH10, BM24VHUS10, BM24JH26D, BM24JHUS26D, BM24JH03, BM24JHUS3, BM24JH10B, BM24JHUS10B, BM24JH10, BM24JHUS10,BM24VHD26D, BM24HSHUS26D, BM24HSH03, BM24HSHUS3, BM24HSH10B, BM24HSHUS10B, BM24HSH10, BM24HSHUS10 BM24BRHUS26D, BM24BRH03, BM24BRHUS3, BM24BRH10B, BM24BRHUS10B, BM24BRH10, BM24BRHUS10 BM24XLUS26D, BM24XL03, BM24XLUS3, BM24XL10B, BM24XLUS10B, BM24XL10, BM24XLUS10 BM24VLUS26D, BM24VL03, BM24VLUS3, BM24VL10B, BM24VLUS10B, BM24VL10, BM24VLUS10 BM24JLUS26D, BM24JL03, BM24JLUS3, BM24JL10B, BM24JLUS10B, BM24JL10, BM24JLUS10 BM24HSLUS26D, BM24HSL03, BM24HSLUS3, BM24HSL10B, BM24HSLUS10B, BM24HSL10, BM24HSLUS10 BM24BRLUS26D, BM24BRL03, BM24BRLUS3, BM24BRL10B, BM24BRLUS10B, BM24BRL10, BM24BRLUS10.
