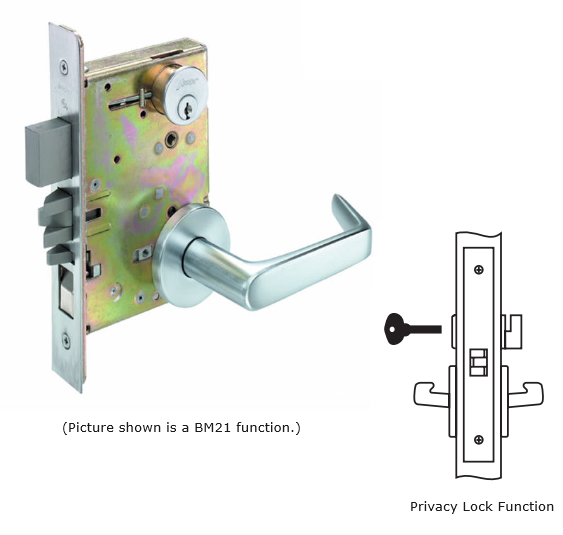

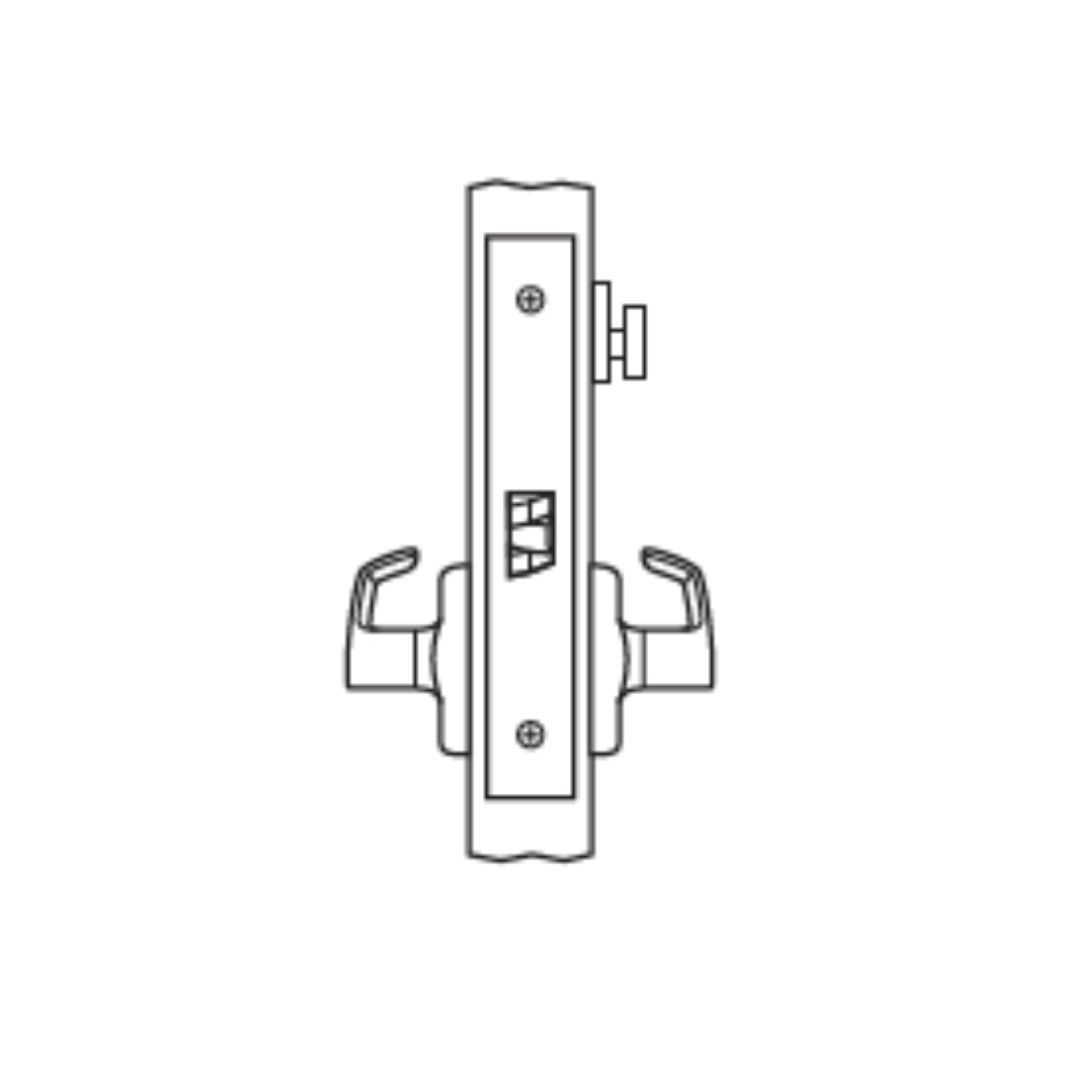

Arrow BM26 Privacy Lock - ANSI F22
Latchbolt by lever either side, except when outside is locked by turnpiece inside. Operating inside lever, closing door, or with outside emergency release unlocks outside.

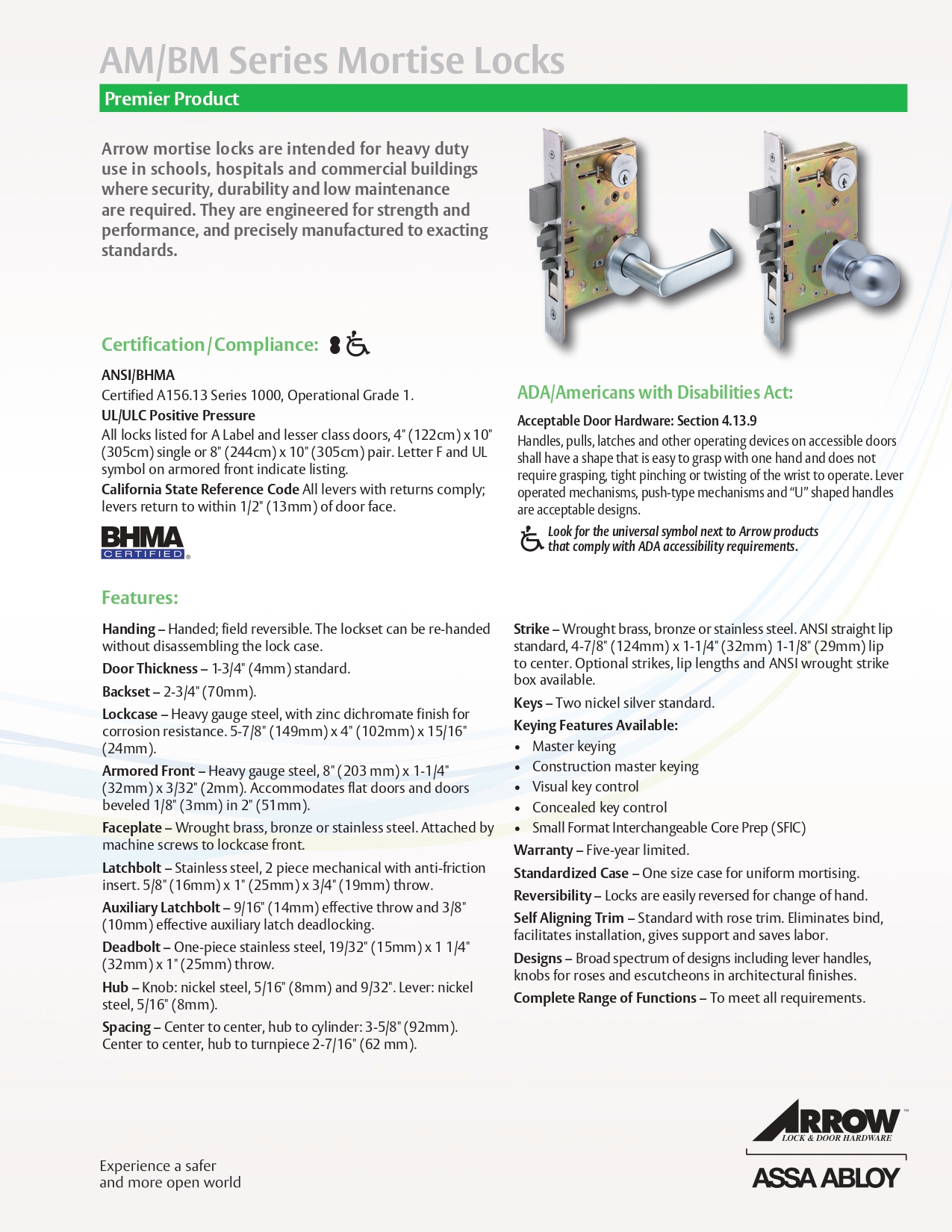

BM/AM Series Features:

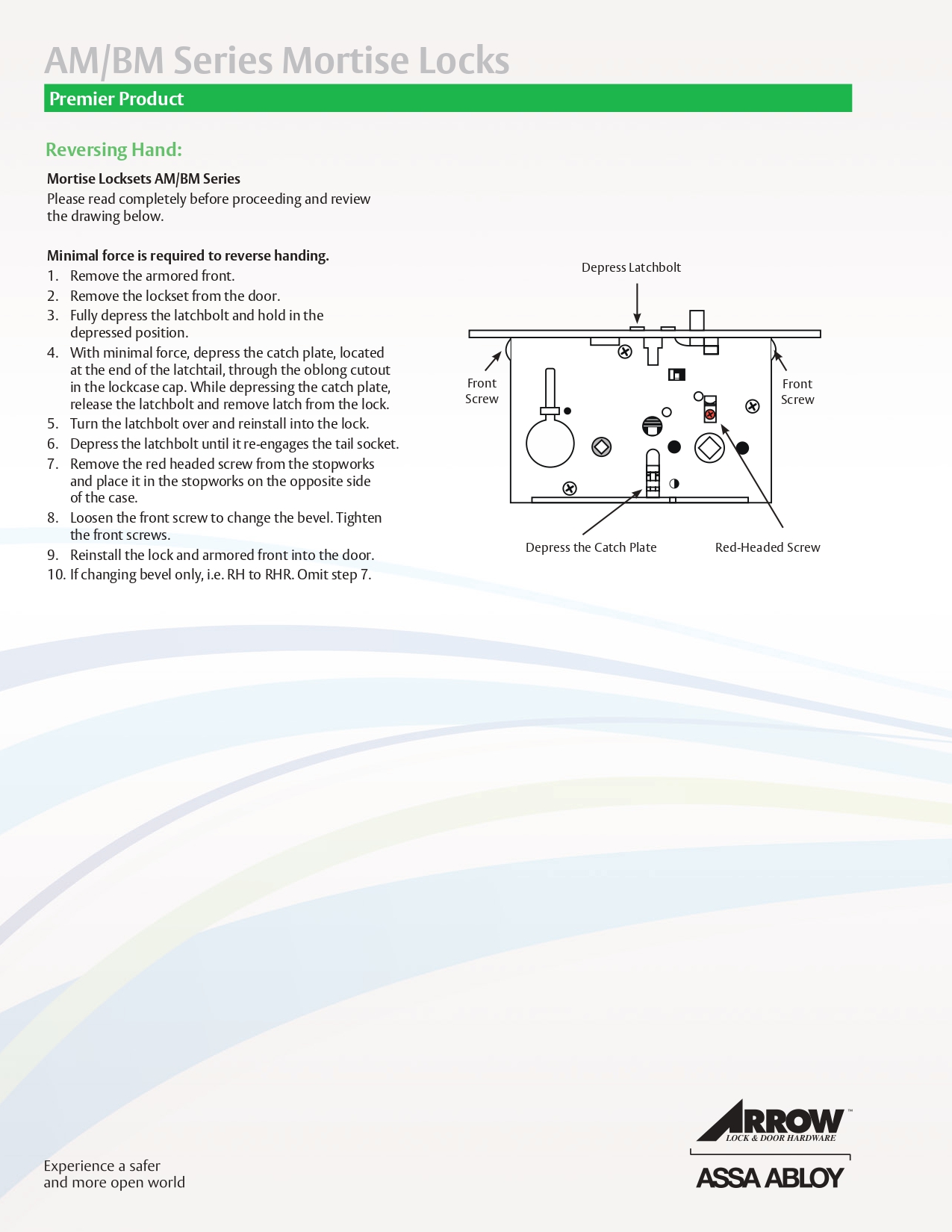

Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
Door Thickness: 1-3/4" (4mm) standard.
Backset: 2-3/4" (70mm).
Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Faceplate: Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.
Hub Knob: nickel steel, 5/16" (8mm) and 9/32". Lever: nickelsteel, 5/16" (8mm).
Spacing: Center to center, hub to cylinder: 3-5/8" (92mm). Center to center, hub to turnpiece 2-7/16" (62 mm).
Strike: Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strikebox available.
Keyway - A keyway standard.
Keys: Two nickel silver standard.
Warranty: Five-year limited.

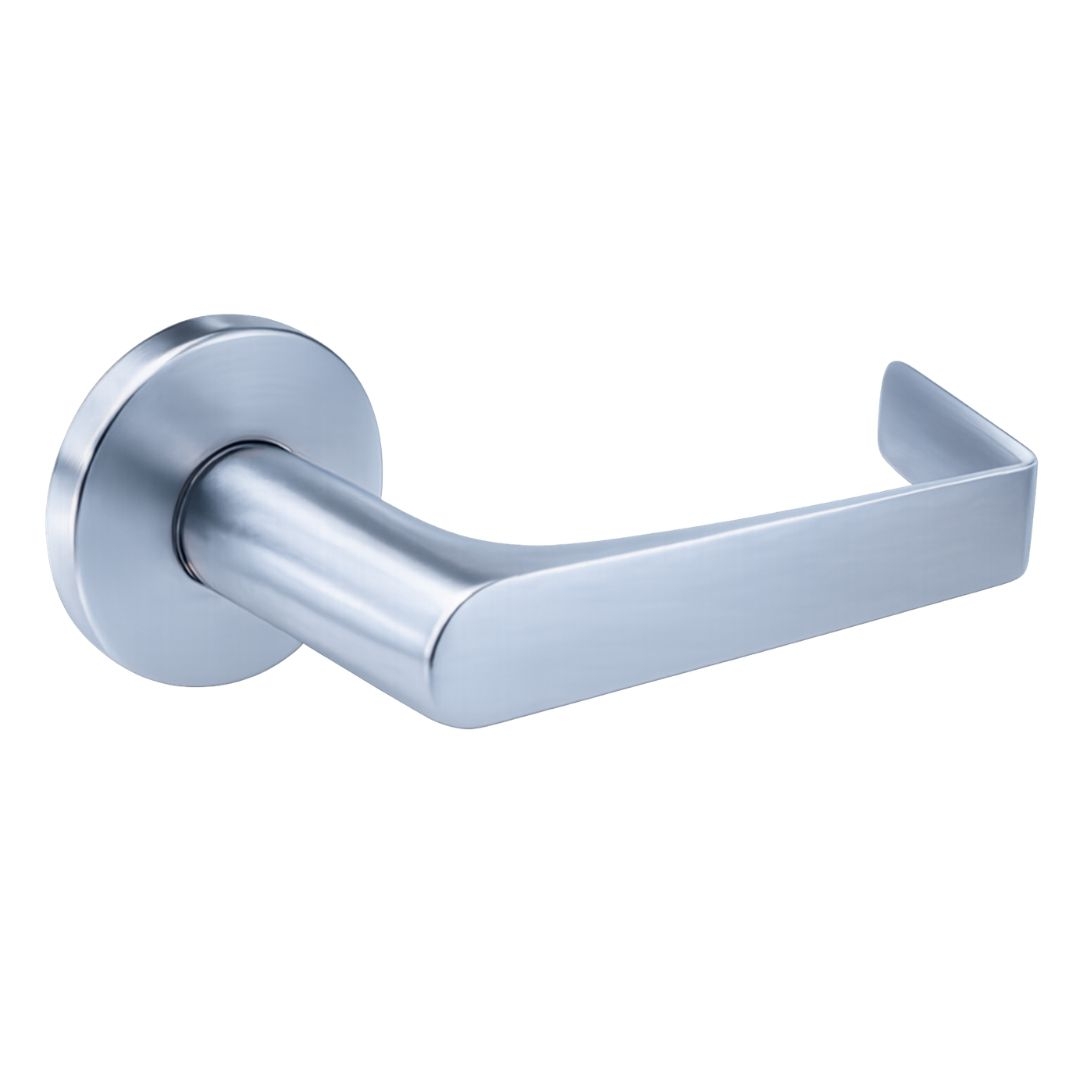

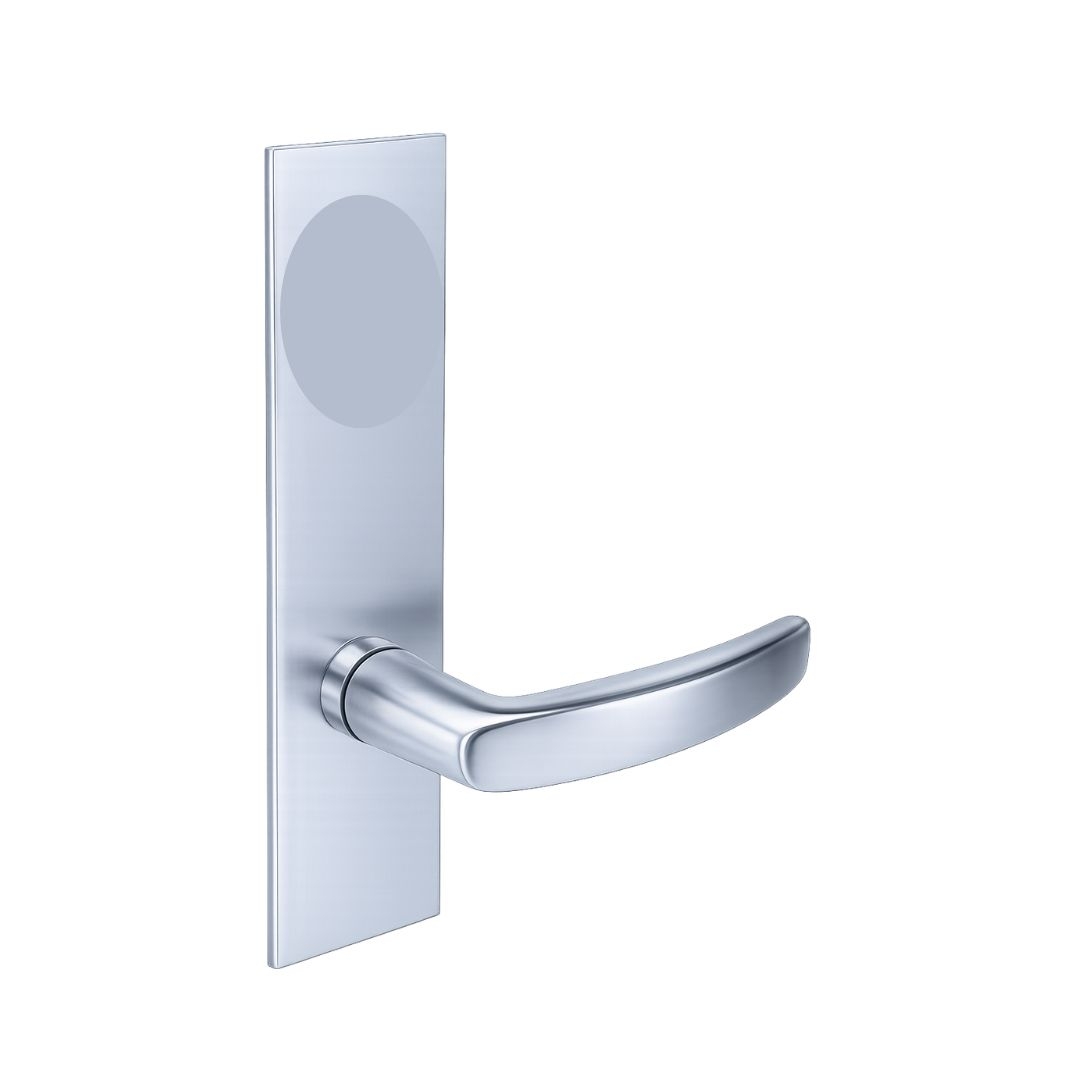

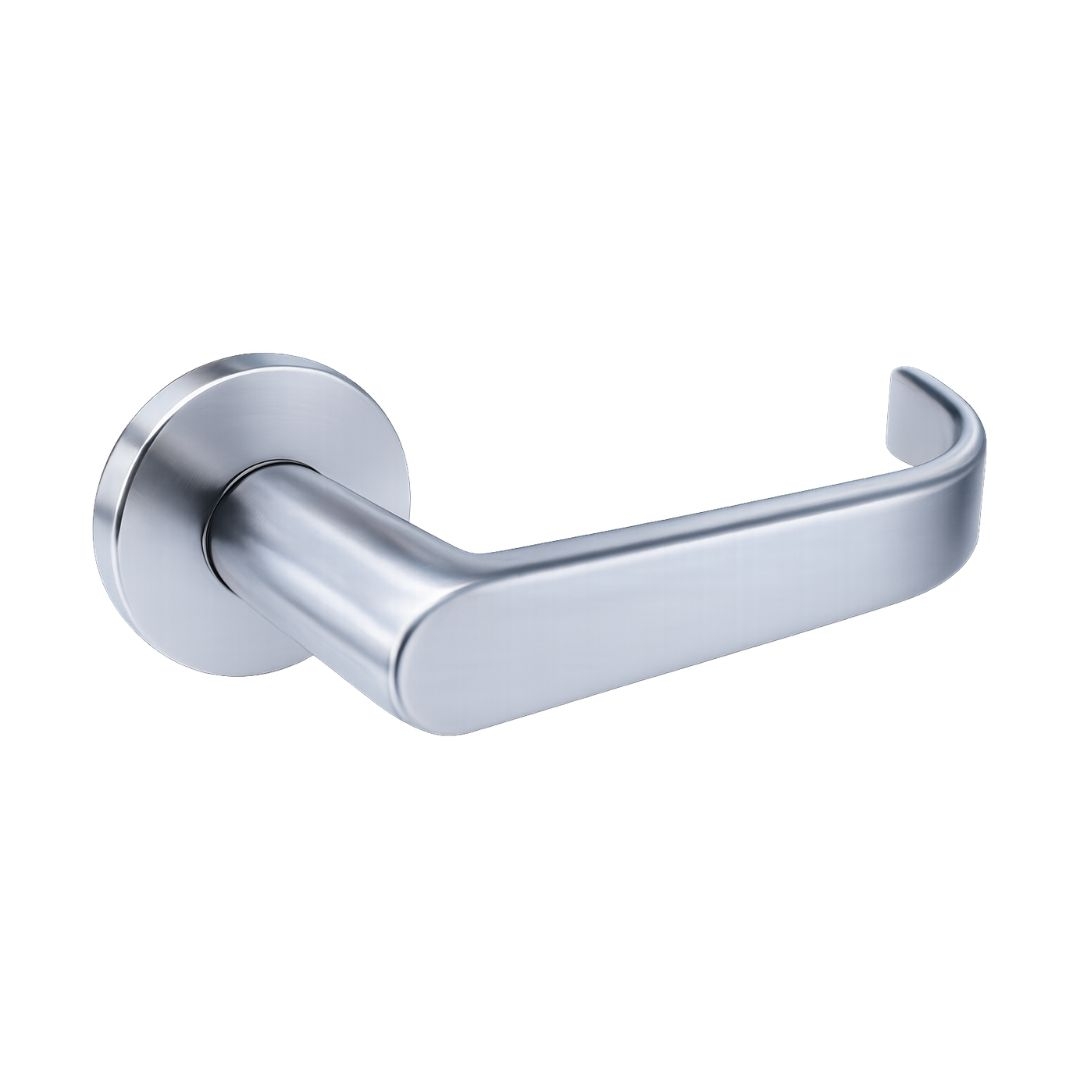

Model: Arrow BM26, XH, VH, JH, HSH, BRH, XL, VL, JL, HSL, BRL, 26D, US26D, 03, 3, US3, 10B, US10B, 10, US10, BM26XH, BM26VH, BM26JH, BM26HSH, BM26XH26D, BM26XHUS26D, BM26XH03, BM26XHUS3, BM26XH10B, BM26XHUS10B, BM26XH10, BM26XHUS10, BM26VH26D, BM26VHUS26D, BM26VH03, BM26VHUS3, BM26VH10B, BM26VHUS10B, BM26VH10, BM26VHUS10, BM26JH26D, BM26JHUS26D, BM26JH03, BM26JHUS3, BM26JH10B, BM26JHUS10B, BM26JH10, BM26JHUS10,BM26VHD26D, BM26HSHUS26D, BM26HSH03, BM26HSHUS3, BM26HSH10B, BM26HSHUS10B, BM26HSH10, BM26HSHUS10 BM26BRHUS26D, BM26BRH03, BM26BRHUS3, BM26BRH10B, BM26BRHUS10B, BM26BRH10, BM26BRHUS10 BM26XLUS26D, BM26XL03, BM26XLUS3, BM26XL10B, BM26XLUS10B, BM26XL10, BM26XLUS10 BM26VLUS26D, BM26VL03, BM26VLUS3, BM26VL10B, BM26VLUS10B, BM26VL10, BM26VLUS10 BM26JLUS26D, BM26JL03, BM26JLUS3, BM26JL10B, BM26JLUS10B, BM26JL10, BM26JLUS10 BM26HSLUS26D, BM26HSL03, BM26HSLUS3, BM26HSL10B, BM26HSLUS10B, BM26HSL10, BM26HSLUS10 BM26BRLUS26D, BM26BRL03, BM26BRLUS3, BM26BRL10B, BM26BRLUS10B, BM26BRL10, BM26BRLUS10.
