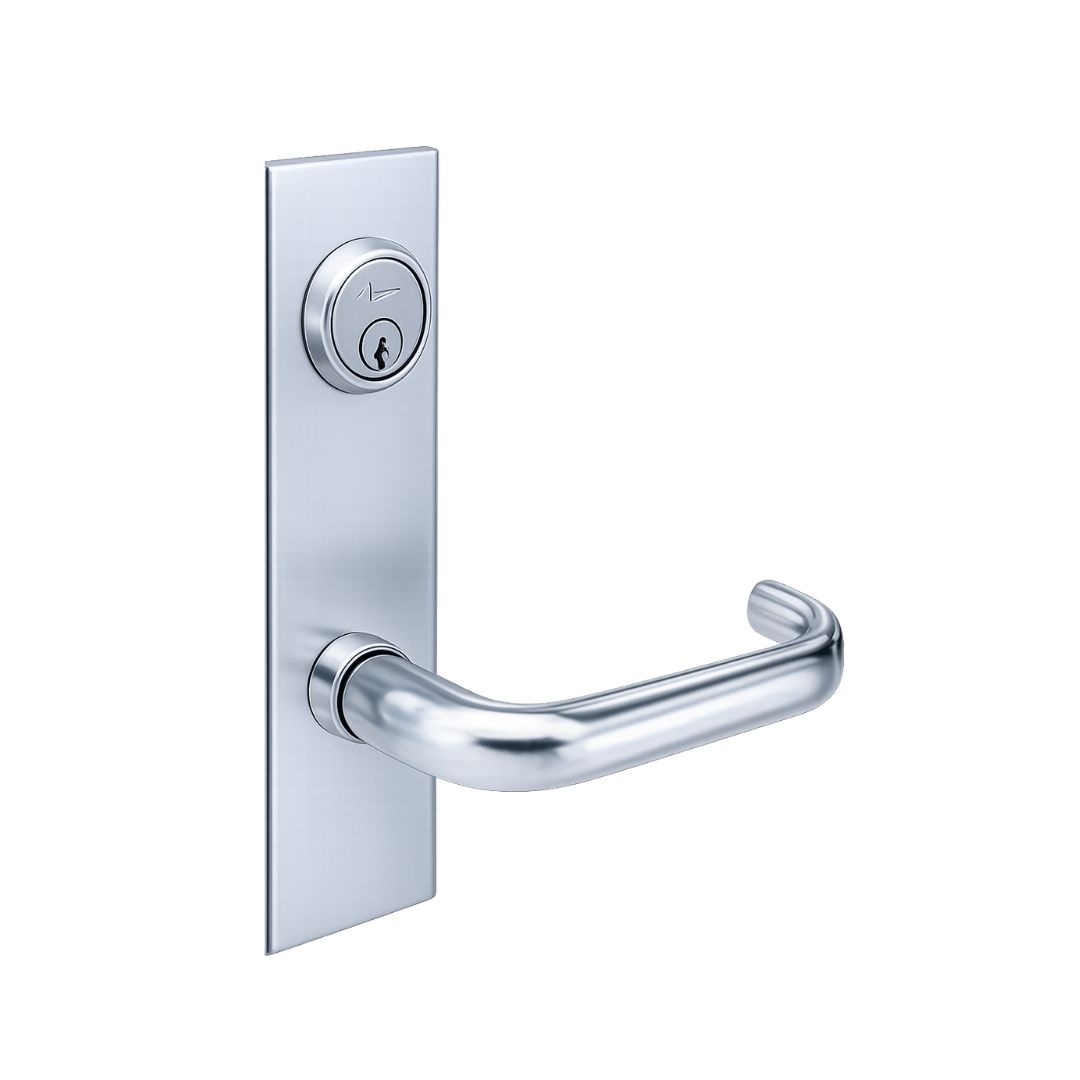

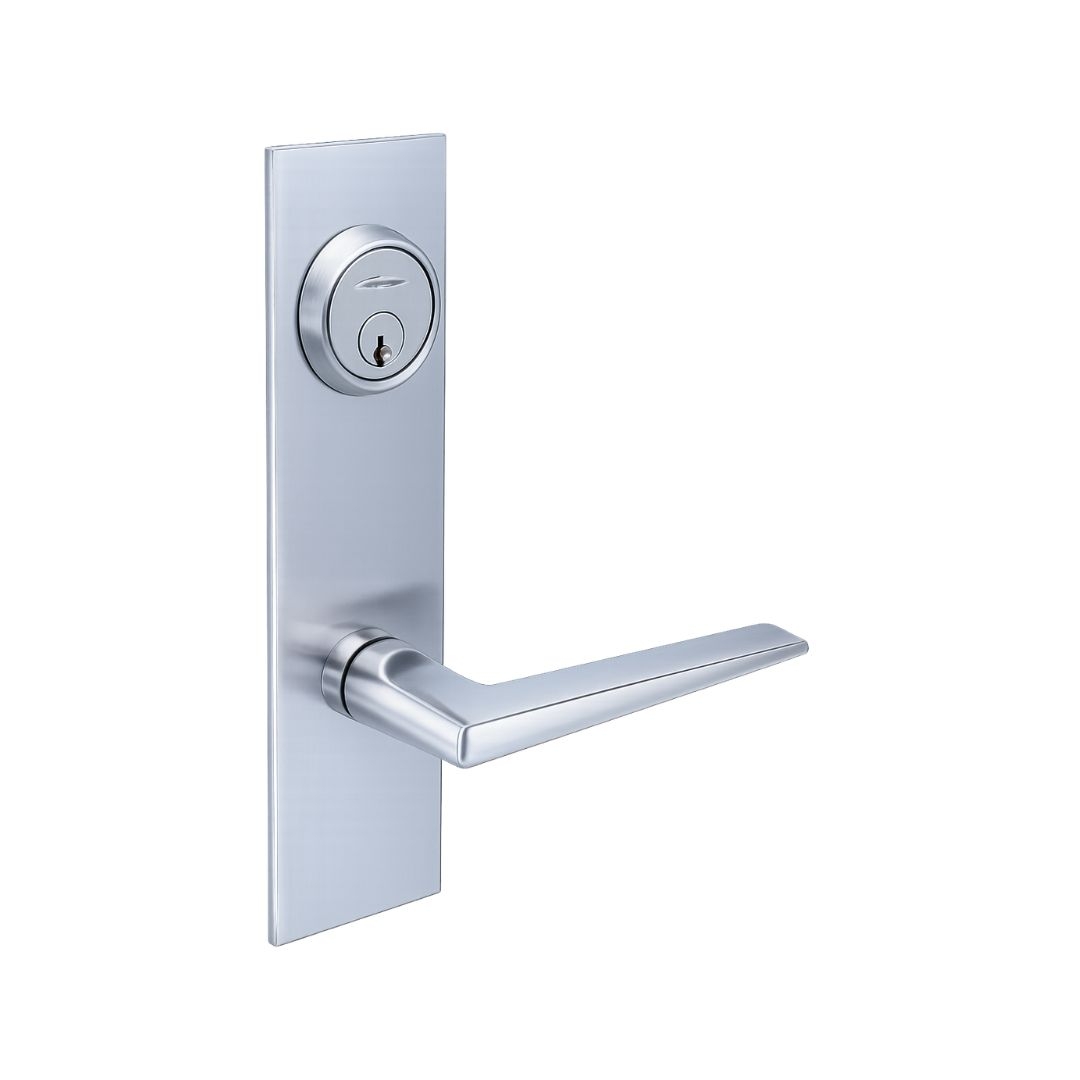

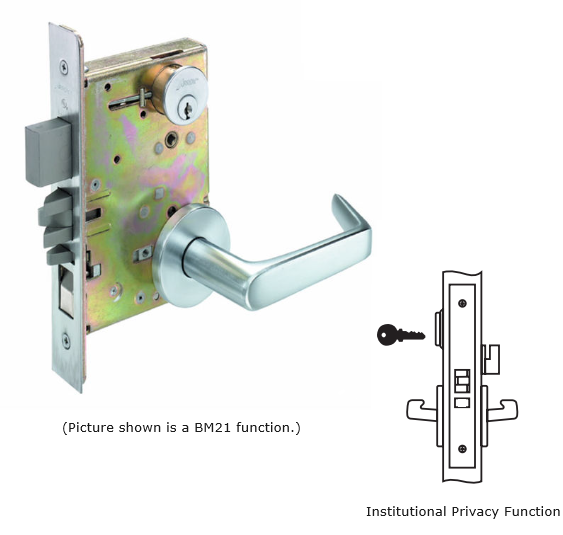

Arrow BM27 Institutional Privacy Lock

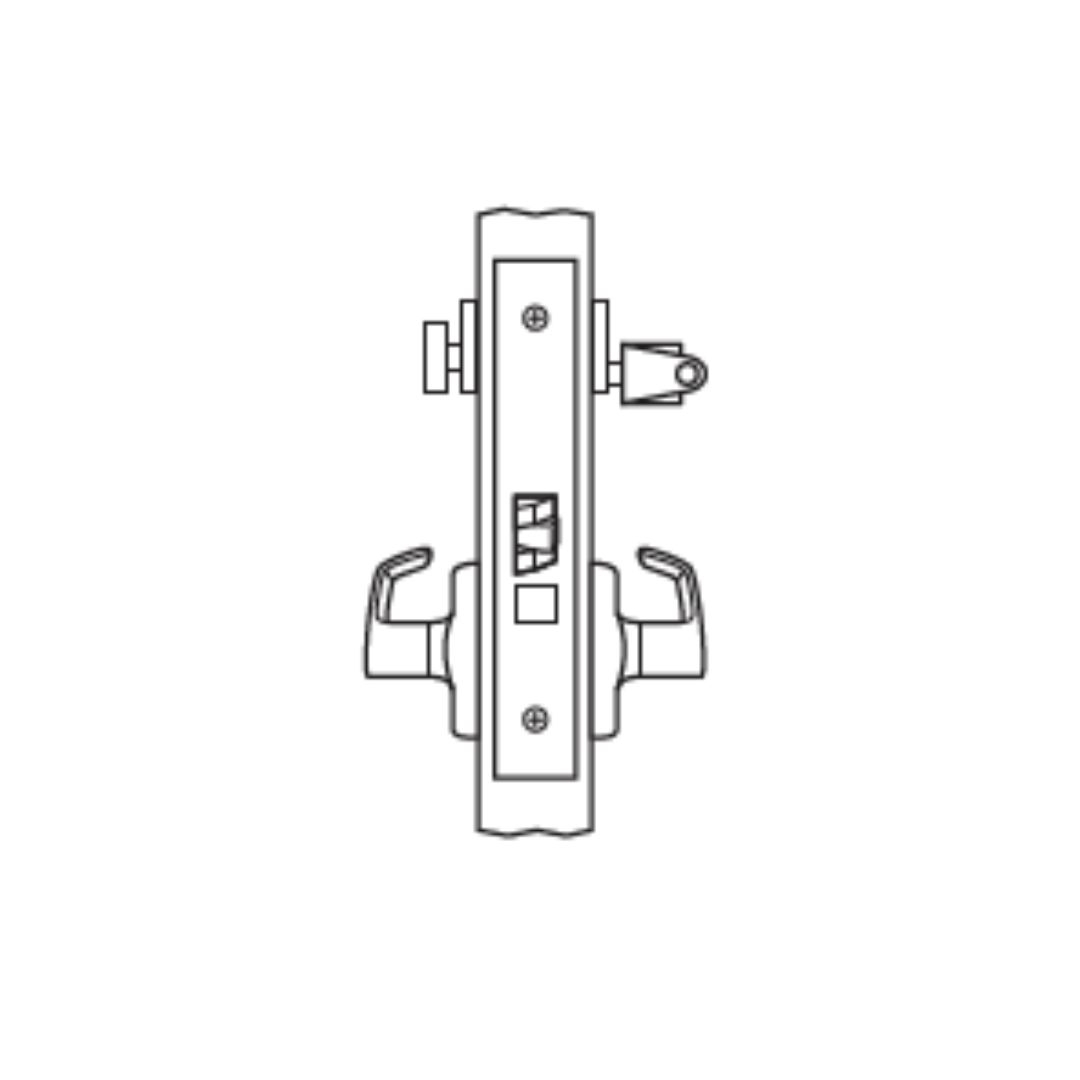

Latchbolt by lever either side, except when outside is locked by turnpiece inside. Operating inside lever or closing door unlocks outside. Key outside retracts latch at all times, even if thumbturn is held in locked position. Auxiliary latch deadlocks latchbolt.
BM/AM Series Features:
Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
Door Thickness: 1-3/4" (4mm) standard.
Backset: 2-3/4" (70mm).
Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
Faceplate: Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.
Hub Knob: Nickel steel, 5/16" (8mm) and 9/32". Lever: nickelsteel, 5/16" (8mm).
Spacing: Center to center, hub to cylinder: 3-5/8" (92mm). Center to center, hub to turnpiece 2-7/16" (62 mm).
Strike: Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strikebox available.

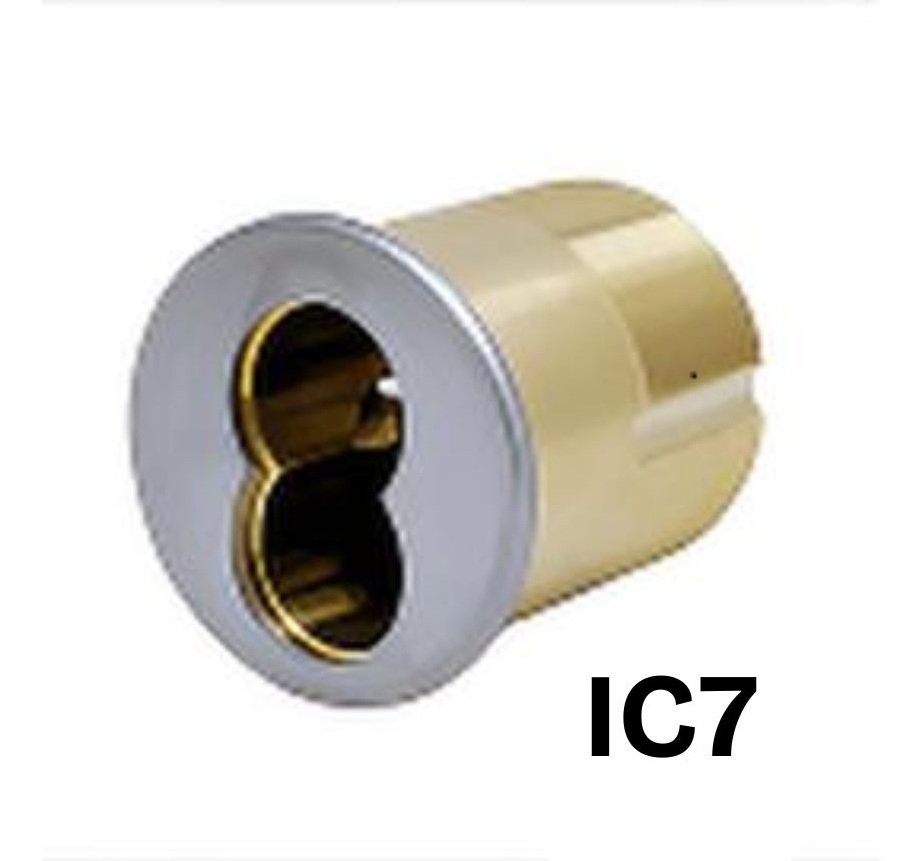

Keyway - A keyway standard.
Keys: Two nickel silver standard.
Warranty: Five-year limited.
Model: Arrow BM27, XH, VH, JH, HSH, BRH, XL, VL, JL, HSL, BRL, 26D, US26D, 03, 3, US3, 10B, US10B, 10, US10, BM27XH, BM27VH, BM27JH, BM27HSH, BM27XH26D, BM27XHUS26D, BM27XH03, BM27XHUS3, BM27XH10B, BM27XHUS10B, BM27XH10, BM27XHUS10, BM27VH26D, BM27VHUS26D, BM27VH03, BM27VHUS3, BM27VH10B, BM27VHUS10B, BM27VH10, BM27VHUS10, BM27JH26D, BM27JHUS26D, BM27JH03, BM27JHUS3, BM27JH10B, BM27JHUS10B, BM27JH10, BM27JHUS10,BM27VHD26D, BM27HSHUS26D, BM27HSH03, BM27HSHUS3, BM27HSH10B, BM27HSHUS10B, BM27HSH10, BM27HSHUS10 BM27BRHUS26D, BM27BRH03, BM27BRHUS3, BM27BRH10B, BM27BRHUS10B, BM27BRH10, BM27BRHUS10 BM27XLUS26D, BM27XL03, BM27XLUS3, BM27XL10B, BM27XLUS10B, BM27XL10, BM27XLUS10 BM27VLUS26D, BM27VL03, BM27VLUS3, BM27VL10B, BM27VLUS10B, BM27VL10, BM27VLUS10 BM27JLUS26D, BM27JL03, BM27JLUS3, BM27JL10B, BM27JLUS10B, BM27JL10, BM27JLUS10 BM27HSLUS26D, BM27HSL03, BM27HSLUS3, BM27HSL10B, BM27HSLUS10B, BM27HSL10, BM27HSLUS10 BM27BRLUS26D, BM27BRL03, BM27BRLUS3, BM27BRL10B, BM27BRLUS10B, BM27BRL10, BM27BRLUS10.
