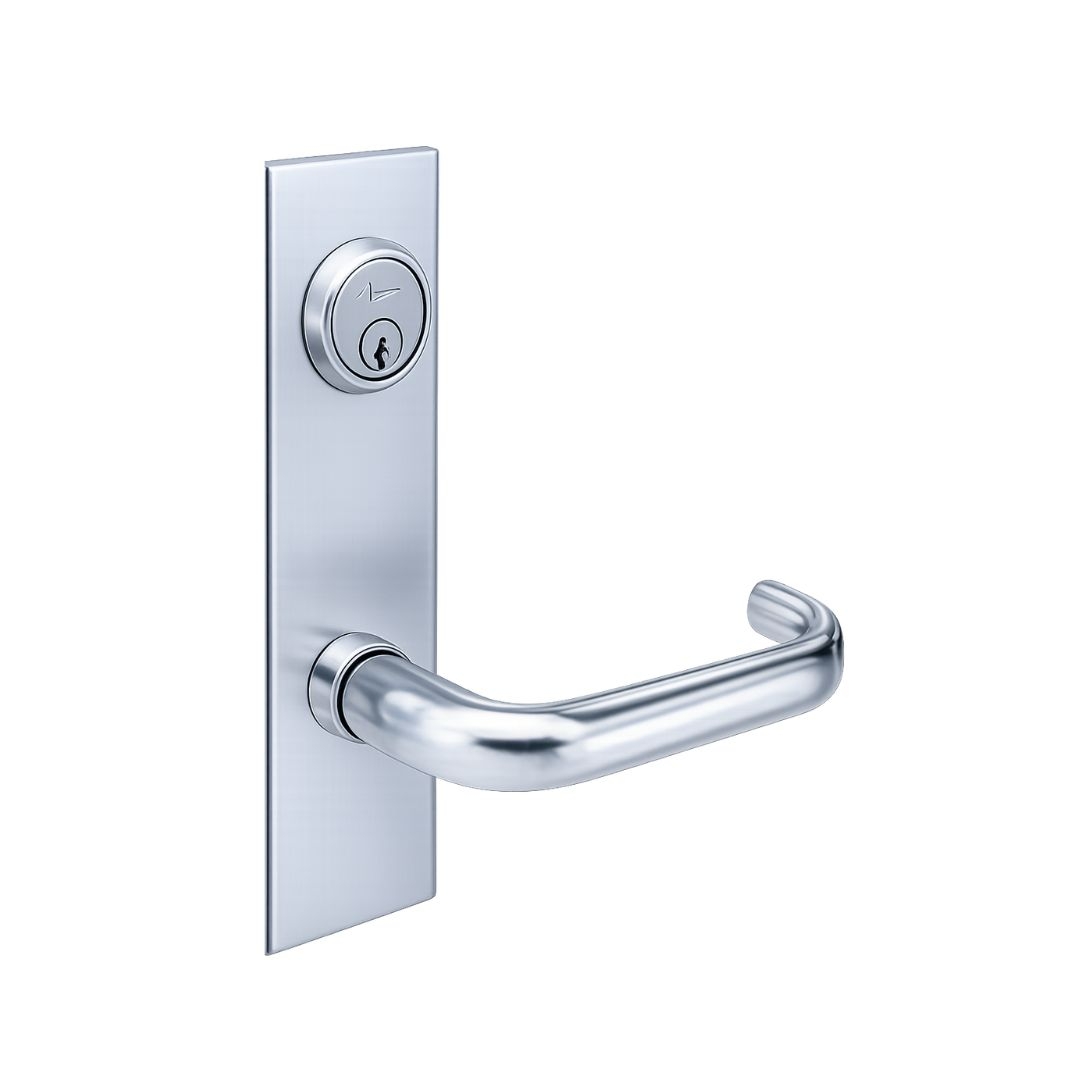

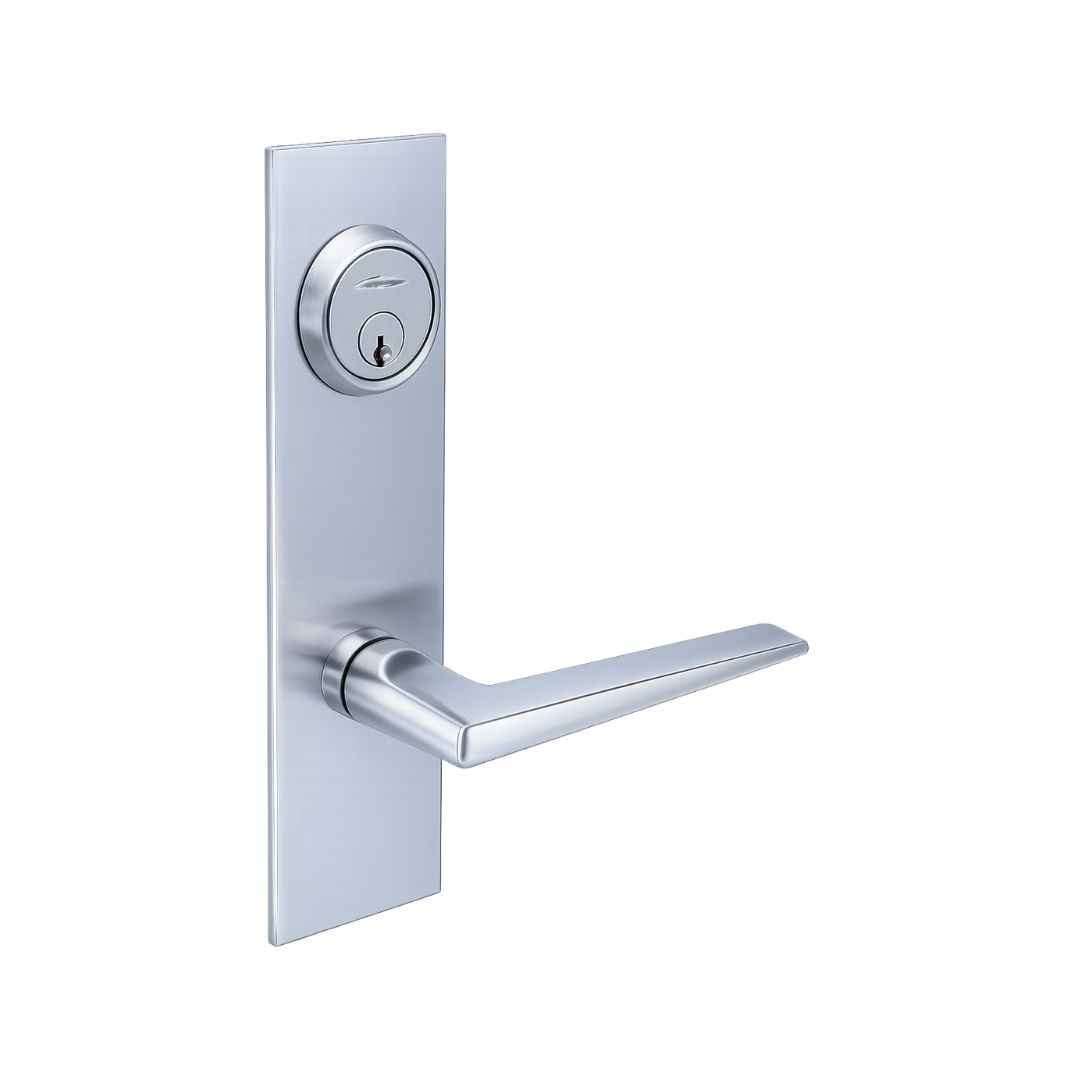

Arrow BM33 Storeroom Mortise Lock

Arrow BM33 Storeroom Lock - ANSI F30

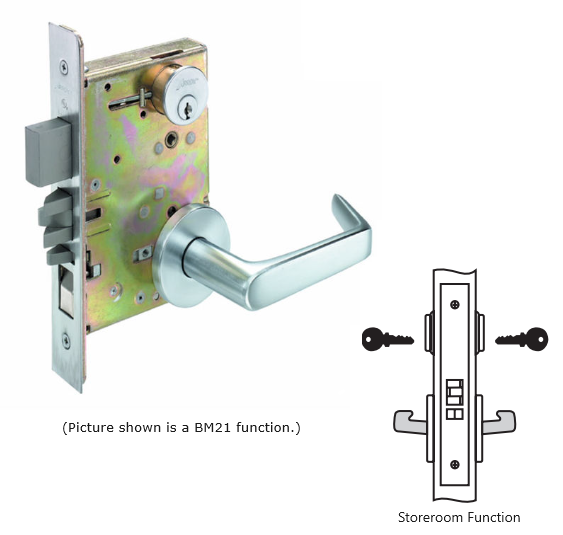

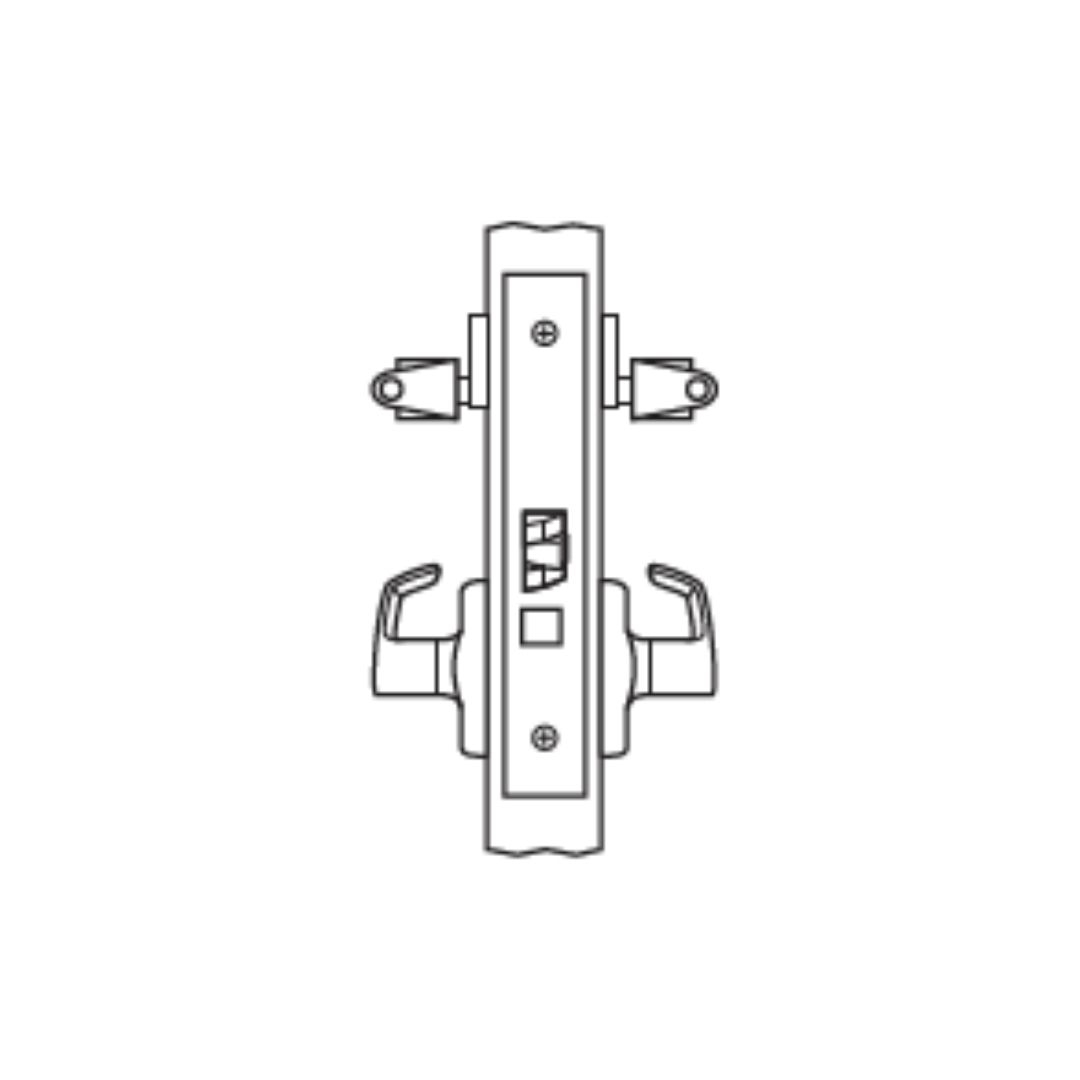

Both levers rigid at all times. Auxiliary latchbolt deadlocks latchbolt. Latchbolt operated only by key from either side.

BM/AM Series Features:

Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.

Door Thickness: 1-3/4" (4mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Faceplate: Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.

Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.

Hub Knob: Nickel steel, 5/16" (8mm) and 9/32". Lever: nickelsteel, 5/16" (8mm).

Spacing: Center to center, hub to cylinder: 3-5/8" (92mm). Center to center, hub to turnpiece 2-7/16" (62 mm).

Strike: Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strikebox available.

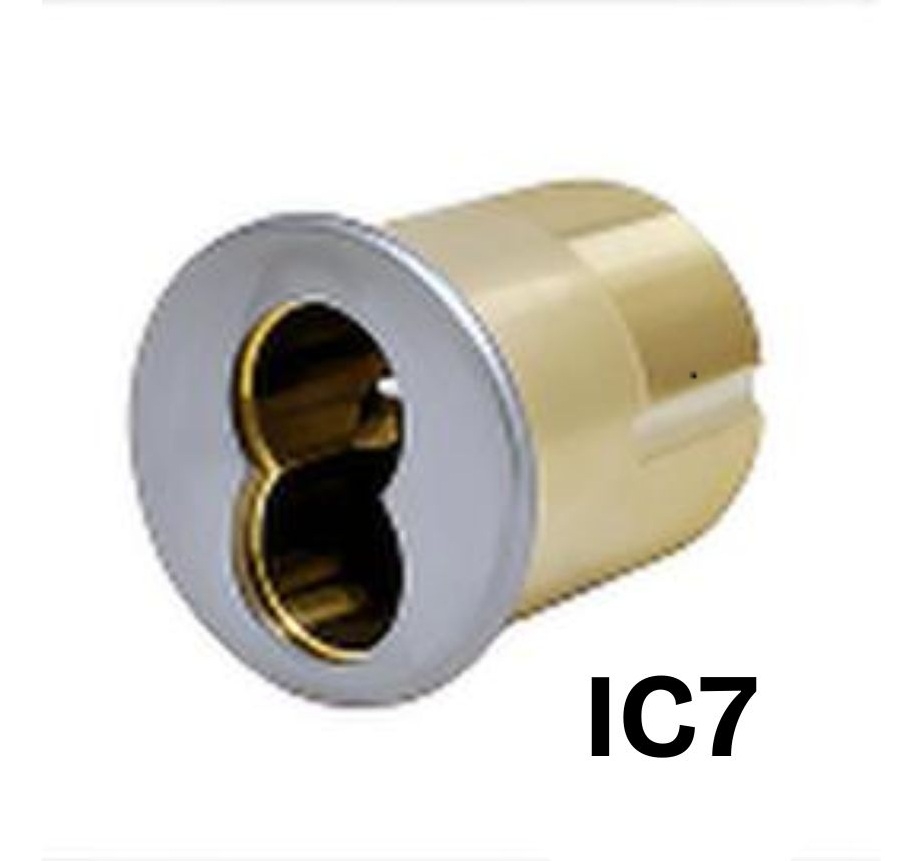

Keyway - A keyway standard.

Keys: Two nickel silver standard.

Warranty: Five-year limited.

Model: Arrow BM33, XH, VH, JH, HSH, BRH, XL, VL, JL, HSL, BRL, 26D, US26D, 03, 3, US3, 10B, US10B, 10, US10, BM33XH, BM33VH, BM33JH, BM33HSH, BM33XH26D, BM33XHUS26D, BM33XH03, BM33XHUS3, BM33XH10B, BM33XHUS10B, BM33XH10, BM33XHUS10, BM33VH26D, BM33VHUS26D, BM33VH03, BM33VHUS3, BM33VH10B, BM33VHUS10B, BM33VH10, BM33VHUS10, BM33JH26D, BM33JHUS26D, BM33JH03, BM33JHUS3, BM33JH10B, BM33JHUS10B, BM33JH10, BM33JHUS10,BM33VHD26D, BM33HSHUS26D, BM33HSH03, BM33HSHUS3, BM33HSH10B, BM33HSHUS10B, BM33HSH10, BM33HSHUS10 BM33BRHUS26D, BM33BRH03, BM33BRHUS3, BM33BRH10B, BM33BRHUS10B, BM33BRH10, BM33BRHUS10 BM33XLUS26D, BM33XL03, BM33XLUS3, BM33XL10B, BM33XLUS10B, BM33XL10, BM33XLUS10 BM33VLUS26D, BM33VL03, BM33VLUS3, BM33VL10B, BM33VLUS10B, BM33VL10, BM33VLUS10 BM33JLUS26D, BM33JL03, BM33JLUS3, BM33JL10B, BM33JLUS10B, BM33JL10, BM33JLUS10 BM33HSLUS26D, BM33HSL03, BM33HSLUS3, BM33HSL10B, BM33HSLUS10B, BM33HSL10, BM33HSLUS10 BM33BRLUS26D, BM33BRL03, BM33BRLUS3, BM33BRL10B, BM33BRLUS10B, BM33BRL10, BM33BRLUS10.

Certification / Compliance

ANSI: Meets A156.13 Series 1000, Operational Grade 1.

Federal: Meets FF-H-106C, Series 86 and 87.

UL/ULC Positive Pressure: All locks listed for A Label and lesser class doors, 4" (122cm) x 10" (305cm) single or 8" (244cm) x 10" (305cm) pair. Letter F and UL symbol on armored front indicate listing. California State

Reference Code: All levers with returns comply; levers return to within 1/2" (13mm) of door face.

Acceptable Door Hardware: Section 4.13.9 Handles, pulls, latches and other operating devices on accessible doors shall have a shape that is easy to grasp with one hand and does not require grasping, tight pinching or twisting of the wrist to operate. Lever operated mechanisms, push-type mechanisms and U shaped handles are acceptable designs.

Look for the universal symbol next to Arrow products that comply with ADA accessibility requirements.
