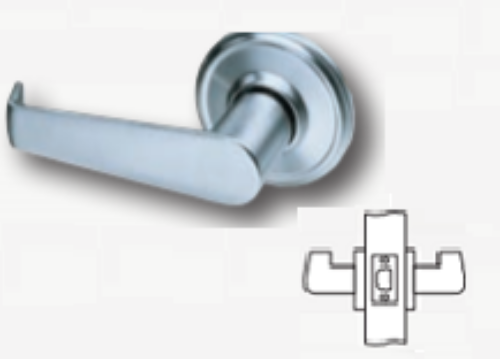

Arrow CL01-SC, Grade 2 Passage Tubular Lock, Solar Lever, Non-Keyed, Non-handed

Arrow CL01-SC, Grade 2 Passage Tubular Lock, Solar Lever, Non-Keyed, Non-handed

CL01 Function:Passage-Latchbolt operated by knob/lever either side. Features:

Construction - Tubular chassis.

Backset- Universal latch is standard. Adjustable for both 2-3/8" (60mm) or 2-3/4" (70mm).

Latch - Brass front. Supplied standard with 1" x 2-1/4" (25mm x 57mm) square corner, 1" x 2-1/4" radius corner and 1-1/8" x 2-1/4" (29mm x 57mm) square corner latch fronts. Available with drive-in latches.

Strike - 1-5/8" x 2-1/4" (41mm x 57mm) full lip strike standard. Available with 1-1/8" x 2-3/4" (29mm x 70mm) T strike, or 1-1/4" x 4-7/8" (32mm x 124mm) ANSI strike.

Door Thickness - Fits 1-3/8" to 1-3/4" (35mm-44mm) doors standard.

Exposed Trim - Levers are zinc based and are plated to match finish requirements.

Mounting - Leversets are supplied with concealed screws on inside rose.

Warranty - 5 year mechanical, 5 year finish.

ARROW CL01-SC. CL01-SC. CL. 01-SC ARROW. ARROW CL01-SC-26, ARROW CL01-SC-05A
