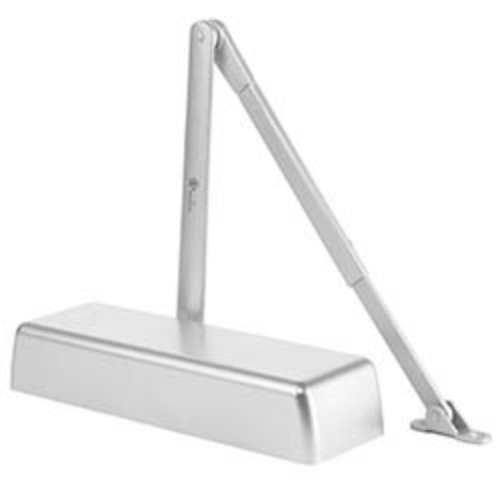

Arrow DCN516-3 Grade 1 Regular (Double Lever) Surface Closer, Double Lever Arm Heavy Duty Hold Open Adjustable, T Turn Hold Open, Dead Stop

Arrow DCN516-3 Grade 1 Hold Open and Stop Surface Closer, Hydraulic Tri Mount Push or Pull Side Mounting, Double Lever Arm Heavy Duty Hold Open Adjustable, T Turn Hold Open, Dead Stop, Plastic Cover, Size 1 to 6,  Non-Handed

DCN516-3Heavy-Duty Dead Stop HO, Full Plastic Cover, Screw Pack, 1-3/4" Thru-bolts, has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90 deg and 110 deg

Compliance:

****UL/cUL listed.UL10C listed for positive pressure to comply with UBC-72 (1997).Meets requirements of ANSI A156.4. and ANSI ICC A117.1. G . Grade 1Meets ADA requirements (Americans with Disabilities Act)Features:

Heavy duty cast iron body.Hardened steel rack and pinion.High tensile steel springs.Staked valvesTwo non-critical adjusting valves (sweep and latch) control closing speed.Backcheck intensity valve.All temperature fluid.Full plastic cover standard.Non-handed for regular, top jamb and parallel arm mount applications.Supplied with fully threaded self-reaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors.10 year limited warranty.Finishes:

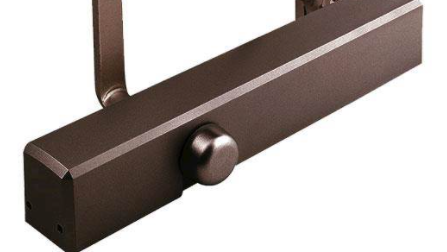

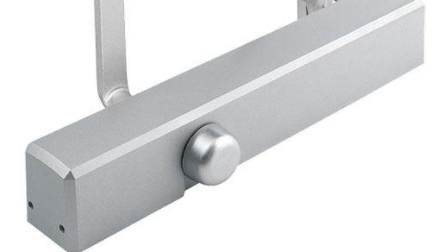

Aluminum (689), Specify ALDark Bronze (690), Specify DBZBlack Painted (693), Specify BP

DCN516-3 AL, DCN516-3 DBZ, DCN516-3 BP, DCN516-3 689, DCN516-3 690, DCN516-3 693
