Arrow VL4 Trim Pack, BM Series, V Lever, L Rose, BM01, 12, 17, 22, 23, 24, 31, 32, 33, 34, 37, 38, Lock Functions

Arrow VL4 Trim Pack, BM Series, V Lever, L Rose, Lock Functions BM01, 12, 17, 22, 23, 24, 31, 32, 33, 34, 37, 38

Bring a consistent look and dependable operation to Arrow BM Series mortise locks with the VL4 trim pack. This set uses the V lever design with an L rose and is supplied less cylinder, so you can pair it with the cylinder and keying that match your building. Each pack includes the inside and outside trim, spindle, turnpiece where applicable, and mounting screws.

About this item

The Arrow VL4 trim pack is a BM Series lever trim set with a V lever and L rose that comes without a cylinder and includes the core trim parts needed to complete the door.

Function

This trim pack is intended for Arrow BM Series mortise lock functions BM01, 12, 17, 22, 23, 24, 31, 32, 33, 34, 37, and 38, supporting common commercial needs like passage, storeroom, office, vestibule, and classroom style operation.

Applications

Arrow mortise lock trim is commonly used in commercial, institutional, and industrial settings such as schools, hospitals, office buildings, government facilities, and multi family housing.

Best for:

• Offices and staff doors that need keyed entry control

• Supply rooms and storage areas

• Classroom doors that need controlled access

• Vestibules and common openings that separate traffic flow

• Facilities that want a matching lever style across multiple doors

It helps by:

• Completing an Arrow BM Series mortise lock with matching inside and outside trim

• Letting you choose the cylinder and keying that fit your site plan

• Providing a consistent lever and rose style for a clean, uniform look

Key highlights

• Built for Arrow BM Series mortise lock trim applications

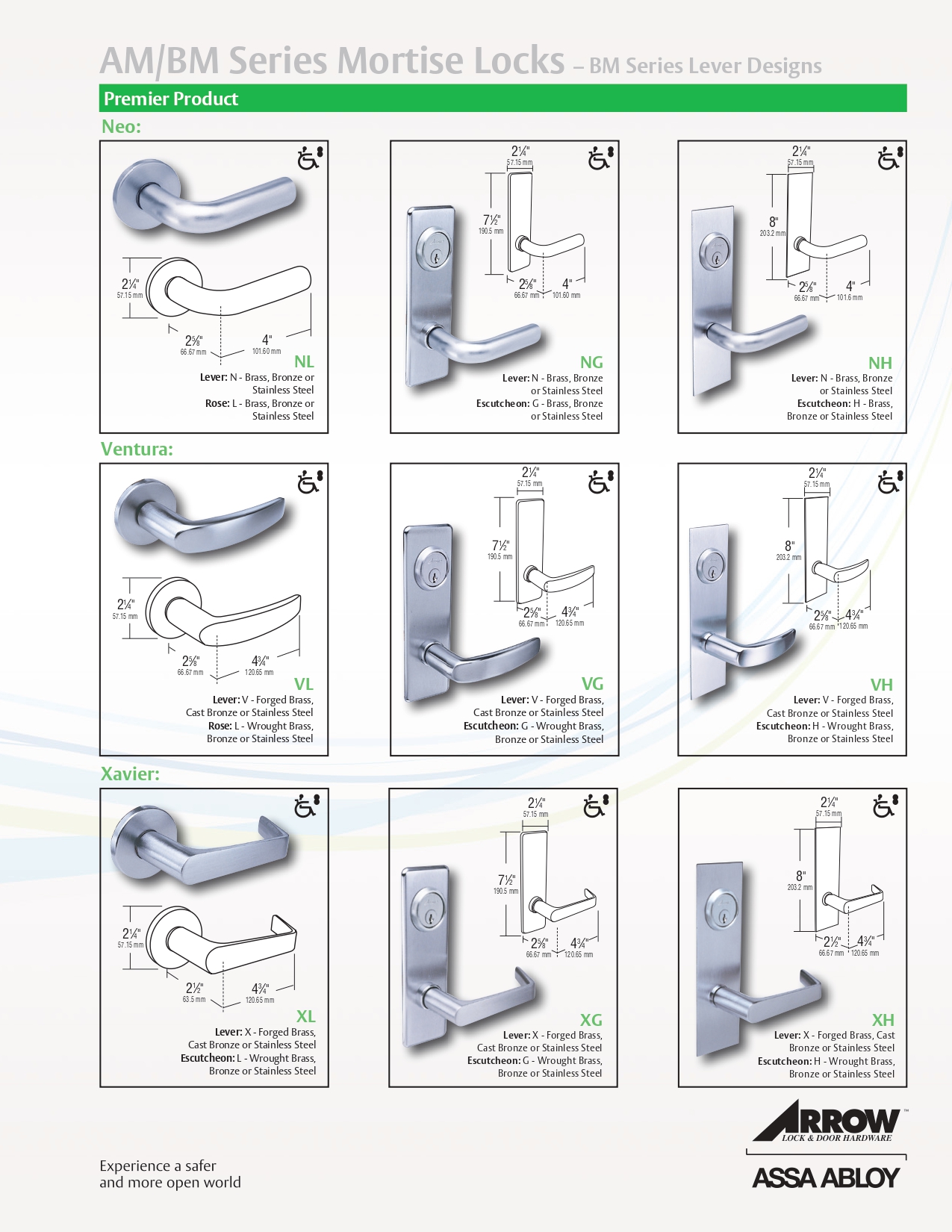

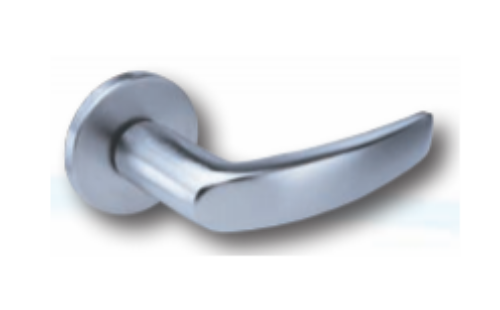

• V lever design paired with L rose styling

• Includes the main trim hardware parts, supplied less cylinder

• Five year limited warranty for Arrow mortise locksets

What’s included

• Inside trim

• Outside trim

• Spindle

• Turnpiece where applicable

• Mounting screws

Key features

• BM Series compatible lever trim

• V lever, L rose configuration

• Supports multiple ANSI-style mortise lock functions

• Cylinder supplied separately

Keying options

• Master keying

• Construction master keying

• Visual key control

• Concealed key control

• Interchangeable core IC options, Pointe, Choice Base, Plus, and Flex

Warranty

• Five year limited warranty

Specifications

• Series compatibility: Arrow BM Series mortise locks

• Trim design: V lever with L rose

• Supported lock functions: BM01, 12, 17, 22, 23, 24, 31, 32, 33, 34, 37, 38

• Cylinder: not included

• Finish options shown for this listing: 26D Satin Chrome, 10B Oil Rubbed Bronze, 4 Satin Brass
