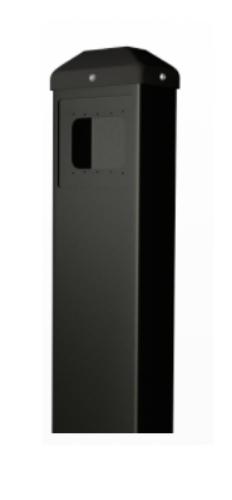

BEA 10BOLLARDBLK Bollard Post For Stainless Push Plates, Black

BEA 10BOLLARDBLK Push Plate Bollard, Powder Coated Carbon Steel, accomodates 4.5" and 4.75"square and 4.5" round and Vestibule plate - BlackDESCRIPTION:

BEA's BOLLARD FAMILY is designed for mounting push plates, that activate automatic doors, in locations where a mounting surface is not available. This enhances accessibility for those with limited mobility or disabilities.

BOLLARDS are compatible with a variety of push plate shapes and sizes, as well as wireless transmitters.

Enhances accessibility: Compatible with most push plate shapes and sizes, bollards provides a mounting surface for ADA-compliant actuators.

Wireless compatibility: Plastic cap allows for transmission from wireless transmitters, which reduce installation time by eliminating the need to run wires from the push plate.

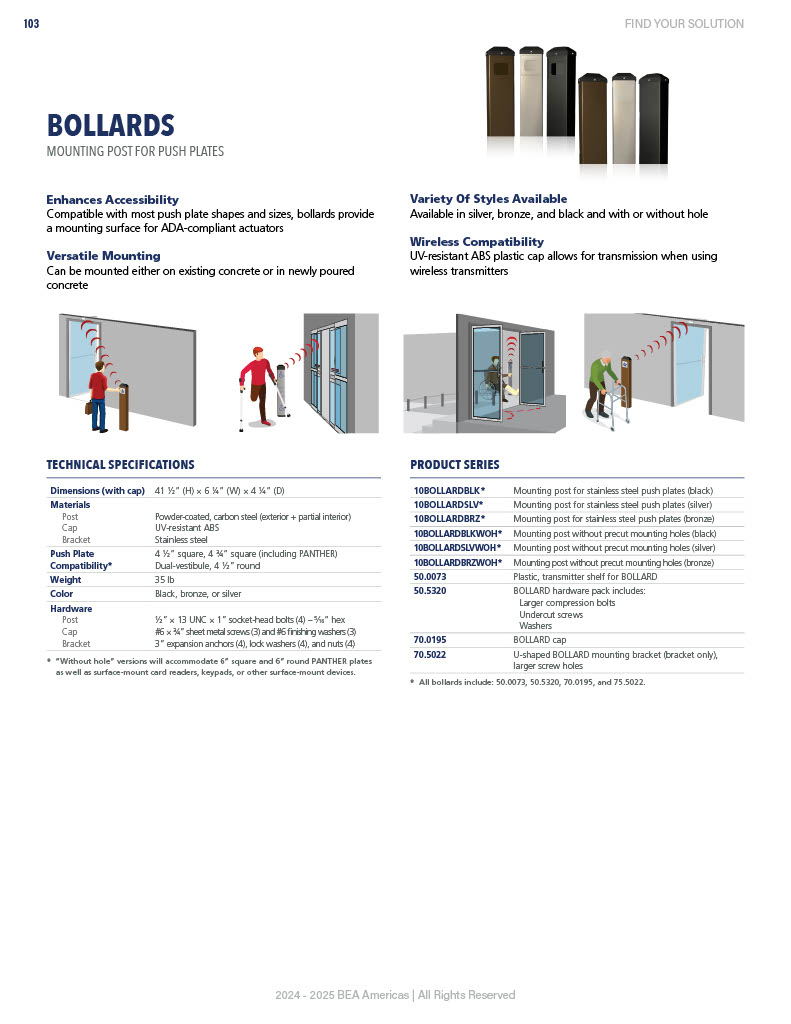

TABLE OF SPECIFICATIONS:

DIMENSIONS:(WITH CAP): 41 1/2" (H) x 6 1/4" (W) x 4 1/4" (D).

MATERIAL:  POST: Powder-coated, carbon steel (exterior).  CAP: UV-resistant ABS plastic.  BRACKET: Stainless steel.

PUSH PLATE COMPATIBILITY:4 1/2" square, 4 3⁄4" square (including Panther) Dual-vestibule, 4 1/2" round.

NOTE: "Without hole" versions will accommodate 6" square and 6" round Panther plates as well as surface-mount card readers, key pads, or other surface mount devices.

WEIGHT:35 lbs (16 kg).

COLOR:Black, Bronze or Silver.

HARDWARE:  POST: 1/2" x 13 UNC x 1" socket-head bolts (4) - 5⁄16" hex.  CAP: #6 x 3⁄4" sheet metal screws (3) and #6 finishing washers (3).  BRACKET: 3" expansion anchors (4), lock washers (4), and nuts (4).
