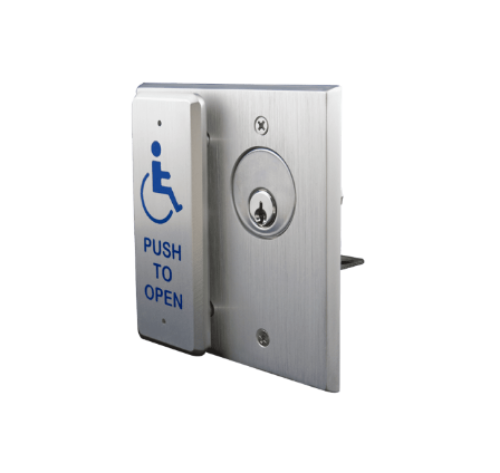

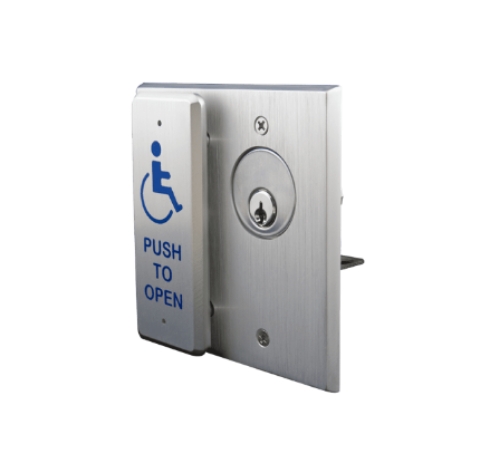

BEA 10COMBOPLATE Access Control switch plate, keywitch and push plate combo, deisgnate keyswitch and push plate interaction

BEA 10COMBOPLATE Access Control switch plate, keywitch and push plate combo, deisgnate keyswitch and push plate interaction  * *Vandal-Resistant: Aluminum wall plate with tamper-resistant screws.

Multiple Plate Sizes: Available in jamb and single wall plates or double gang combo-plate.

Keyswitch Override: Combo plate allows for independent operation of the push plate and keyswitch, or allows the keyswitch to activate or disable the push plate.

Selectable Power Consumption: Capable of switching 6A @ 124 VAC or 3A @ 250 VAC.

These low-profile, aluminum plates are designed to withstand the rigors of busy environments, while providing an aesthetically pleasing and easy to install access control device.

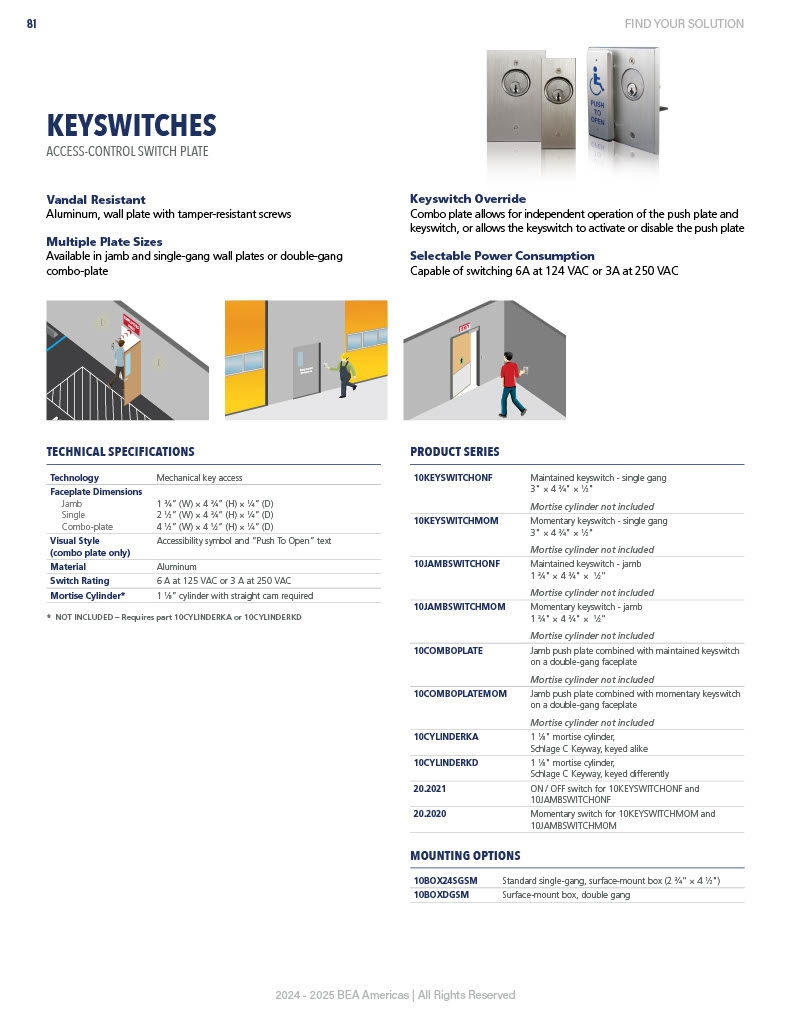

TECHNICAL SPECIFICATIONS:

Technology:Mechanical Key Access.

Faceplate Dimensions:4 1/2" (W) x 4 1/2" (H) x 1/4" (D).

Visual Style Combo-plate:Handicap symbol and 'Push To Open' text.

Materials:Aluminum wall plate with tamper-resistant screws.

Switch Rating:6 A @ 125 VAC or 3 A @ 250 VAC.

Mortise Cylinder:* 1 1⁄8" cylinder with straight cam required

*NOT INCLUDED - Requires part 10CYLINDERKA or 10CYLINDERKD.
