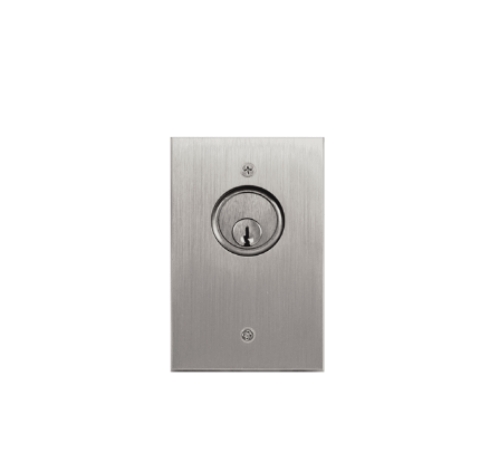

BEA 10KEYSWITCHMOM Access Control Switch Plate, Single Gang, Momentary (cylinder not included)

BEA 10KEYSWITCHMOM Access Control Switch Plate, Single Gang, Momentary (cylinder not included) * *Model: 10KEYSWITCHMOMMomentary keyswitch, single gang.

Vandal-Resistant: Aluminum wall plate with tamper-resistant screws.

Multiple Plate Sizes: Available in jamb and single wall plates or double gang combo-plate.

Keyswitch Override: Combo plate allows for independent operation of the push plate and keyswitch, or allows the keyswitch to activate or disable the push plate.

Selectable Power Consumption: Capable of switching 6A @ 124 VAC or 3A @ 250 VAC.

These low-profile, aluminum plates are designed to withstand the rigors of busy environments, while providing an aesthetically pleasing and easy to install access control device.

TECHNICAL SPECIFICATIONS:

Technology:Mechanical Key Access.

Faceplate Dimensions:4 1/2" (W) x 4 1/2" (H) x 1/4" (D).

Visual Style Combo-plate:Handicap symbol and 'Push To Open' text.

Materials:Aluminum wall plate with tamper-resistant screws.

Switch Rating:6 A @ 125 VAC or 3 A @ 250 VAC.

Mortise Cylinder:* 1 1⁄8" cylinder with straight cam required

*NOT INCLUDED - Requires part 10CYLINDERKA or 10CYLINDERKD.
