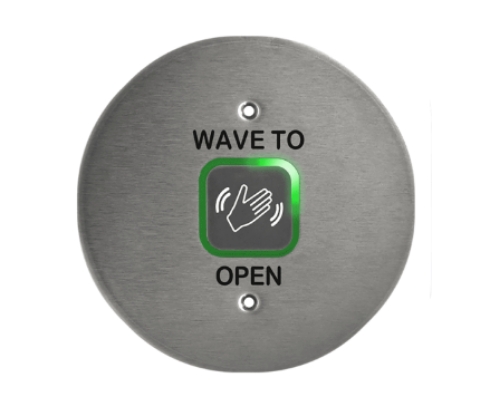

BEA 10MS41-R Microwave Touchless Actuator - Stainless steel Round Plate - Text + Hand Logo

BEA 10MS41-R Microwave Touchless Actuator, Round Plate, Text + Hand Logo, Adjustable 4 to 24 In, 12-24 VAC/DC, Stainless Steel

DESCRIPTION BEA's MAGIC SWITCH Family provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanitation like healthcare, retail, industrial and commercial settings.

Using microwave technology, BEA's MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart or wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards.

The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room and pharmaceutical environments.

Durable Faceplate Stainless steel faceplate increases durability and protection from daily cleaning.

Ideal For Harsh Environments IP55 rated enclosure capable of use in industrial and extreme washdown environments.

High-Visibility Animated or static Illuminated ring allows for high-visibility in low light areas.

Adjustable Detection Zone Adjustable sensing zone from 4 to 24 inches (timed or toggle).

Activation Alerts Adjustable audible alert setting, including silent-mode required for hospitals and other noise-sensitive environments.

Adjustable Hold Time Configurable output hold time of 1/2 to 30 seconds allowing unique, user-defined device placement.

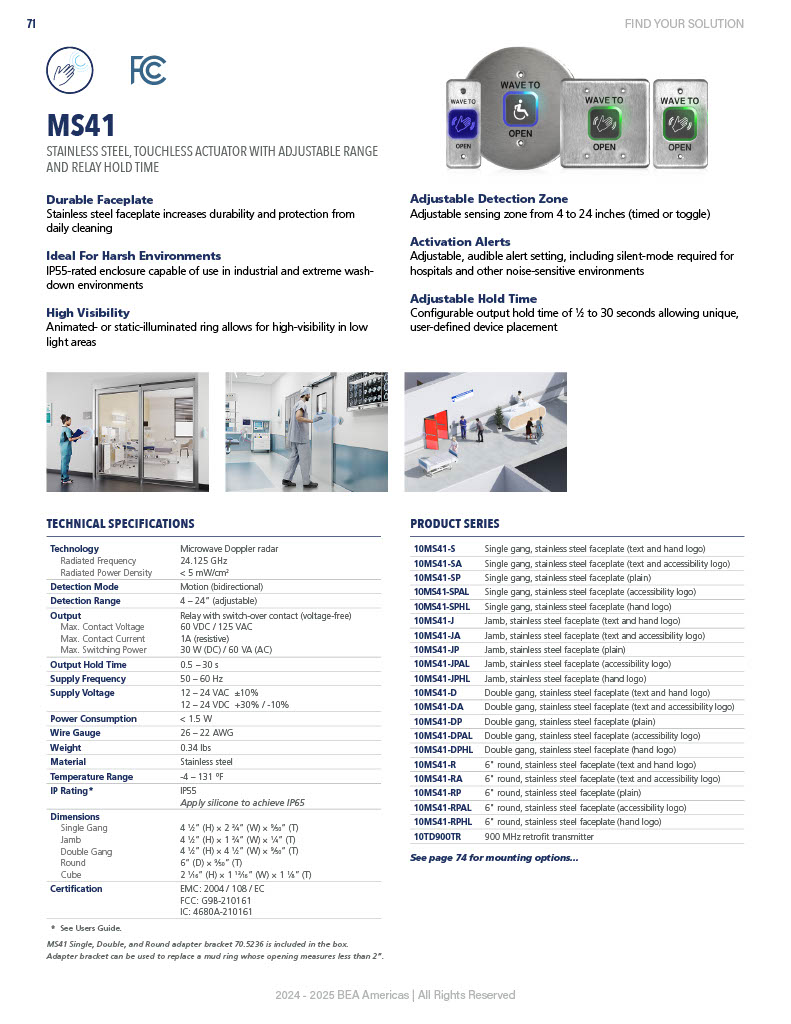

TECHNICAL SPECIFICATIONS * *TechnologyMicrowave - Doppler Radar. Dimensions:Round - 6" (R) x 9⁄50" (T). Radiated Frequency- 24.125 GHz. Radiated Power Density- < 5 mW/cm2. Detection Mode- Motion (bidirectional). Detection Range- 4 - 24" (adjustable). Output- Relay with switch-over contact (voltage-free).   Max. Contact Voltage - 60 VDC / 125 VAC.   Max. Contact Current - 1A (resistive).   Max. Switching Power - 30 W (DC) / 60 VA (AC). Output Hold Time- 0.5 - 30 s. Supply Frequency- 50 - 60 Hz. Supply Voltage:    12 - 24 VAC +10%.   12 - 24 VDC +30% / -10%. Power Consumption- < 1.5 W. Wire Gauge- 26 - 22 AWG. Weight- 0.34 lbs. Material- Stainless Steel. Temperature Range -4 - 131 F. IP Rating- IP55.   Apply silicone to achieve IP65 Certification:   EMC: 2004 / 108 / EC.   FCC: G9B-210161.   IC: 4680A-210161.

• MS41 Single, Double and Round adapter bracket 70.5236 is included in the box. The adapter bracket can be used to replace a mudring whose opening measures less than 2"
