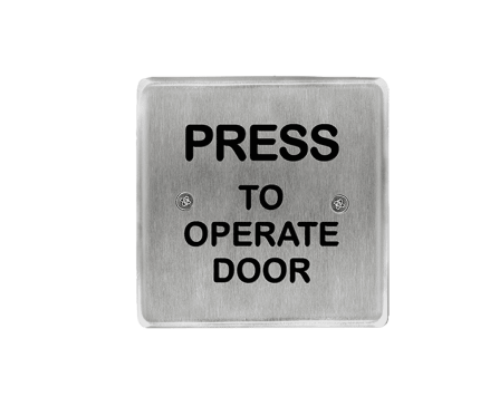

BEA 10PBS45POD Stainless steel push plate, 4.5" square, black "Press to Operate Door" text only

BEA 10PBS45POD Stainless steel push plate, 4.5" square, black "Press to Operate Door" text only

Description:

BEA's 4.5 INCH ROUND AND SQUARE PUSH PLATES improve overall access, enhance accessibility for those with limited mobility or disabilities and seamlessly integrate with an automatic door's activation.

These ADA-compliant push plates are available in a variety of popular design options, including alternative accessibility artwork. This product may be hard wired to the door operator or connected to BEA's line of wireless transmitters.

Features:

- Grade 304 stainless steel maximizes corrosion resistance and prevents rusting

- Stainless steel materials are 100% recyclable and environmentally friendly

- Options include hard wired and wireless mounting

- Compatible wireless frequencies include 433, 390 or 300 MHz

- Smaller, refined design makes an ideal application for many knowing act applications

- Beveled edges are less susceptible to damage by deflecting harsh impacts from any side

• Stainless steel finish is scratch/scuff resistant and will not deteriorate or rust from exposure to liquids and other cleaning agents

- Graphics are etched onto the faceplate for maximum durability

- Available in various styles to fit almost any application, hard wired or wireless

4.5 SQUARE PUSH PLATES SPECIFICATIONS:

FACEPLATE MATERIAL:16 gauge, 304 2B Stainless Steel.

BACKPLATE MATERIAL:1⁄8" thick, Aluminum.

MOUNTING SCREWS:   Stainless Steel, 6-32 x 1" & 8-32 x 1".   Allen Head Size: 5⁄56.

CHERRY SWITCH:   Single-pole, 1 A, COM / NO / NC,   UL Recognized.

COMPATIBLE WIRELESS FREQUENCIES:900, 433 or 300 MHz.

DIMENSIONS:4 1/2" (W) x 4 1/2" (H) x 31⁄50" (D).
