BEA 10RESTROOMKIT RESTROOM KIT FOR SINGLE OCCUPANCY NORMALLY LOCKED / UNLOCKED RESTROOMS

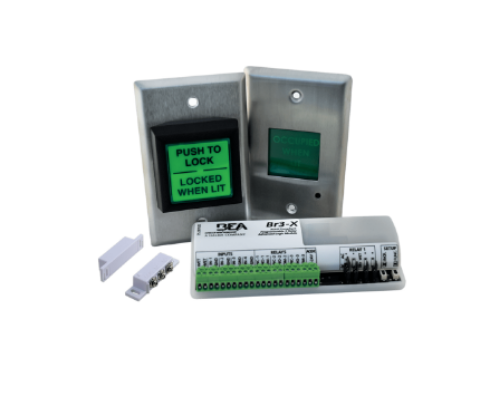

BEA 10RESTROOMKIT Restroom Kit Includes: (1) 10PTLBUTTON, (1) 10LEDSOUNDER, (1) 10SWITCH1084 and (1) 10BR3X.

The kit's control center is the BR3-X, a programmable 3-relay advanced logic module featuring restroom control functionality. The BR3-X can also power an electric locking device by using the WET output on Relay 1.

Advanced Logic With Restroom Functionality: BR3-X, 13 function advanced logic module, controls locking and sequencing functionality.

Highly Visible And Audible: Occupied Indicator with LED.

Door Position Reset For Proper Functionality: Door position switch ensures proper positioning of door before resetting the system.

Visual Lock Confirmation: Push to Lock Button with LED.

Code Compliant: Ontario Regulation 368/13 compliant.

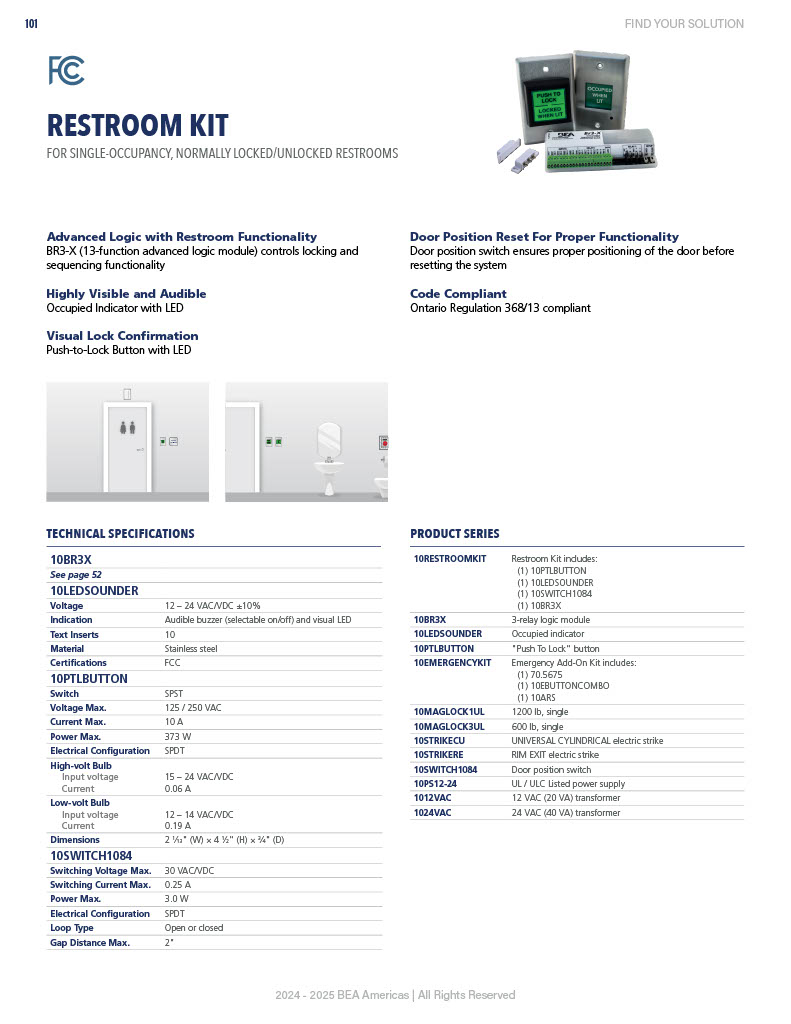

TECHNICAL SPECIFICATIONS:

BR3-X Supply Voltage:12 - 24 VAC / VDC -10%. Power Consumption:30 - 130 mA; DRY Output. Temperature Range:*-15 - 150 F. Relay Hold Time:Up to 60 seconds per relay. Delay Between Relays:Up to 60 seconds with 1/4, 1/2 and 3/4 second options. Housing Material: ABS Plastic. Input Specifications: Inputs 1, 2, 3, 4. DRY contact. WET Input.  5 - 24 VAC / VDC -10%. Contact Rating:   Relay 1 (DRY) - 3 A @ 24 VAC / 30 VDC.   Relay 1 (WET) - 1 A.   Relay 2 (DRY) - 3 A @ 24 VAC / 30 VDC.   Relay 3 (DRY) - 1 A @ 24 VAC / 30 VDC. Dimensions:5 1⁄5" (W) x 2 1⁄5" (H) x 1" (D). *If powered by AC voltage and using WET output to convert to DC voltage and current draw of device is greater than 0.9 A, the upper temperature range is 130 Degree F

10LEDSOUNDER Voltage:12 - 24 VAC / VDC -10%. Indication:Audible buzzer (selectable on / off) and visual LED. Text Inserts:10. Material:Stainless steel & PC. Certifications:FCC.

10PTLBUTTON Switch:SPST. Voltage Max:125 / 250 VAC. Current Max:10 A. Power Max:373 W. Electrical Configuration:SPDT. High Volt Bulb:   Input Voltage: 15 - 24 VAC / VDC.   Current: 0.06 A. Low Volt Bulb:   Input Voltage: 12 - 14 VAC / VDC.   Current: 0.19 A. Dimensions:2 19⁄25" (W) x 4 13⁄25" (H) x 3/4" (D).

10SWITCH1084 Switching Voltage Max:30 VAC / VDC. Switching Current Max:0.25 A. Power Max:3.0 W. Electrical Configuration:SPDT. Loop Type:Open or Close. Gap Distance Max:2".
