About this item

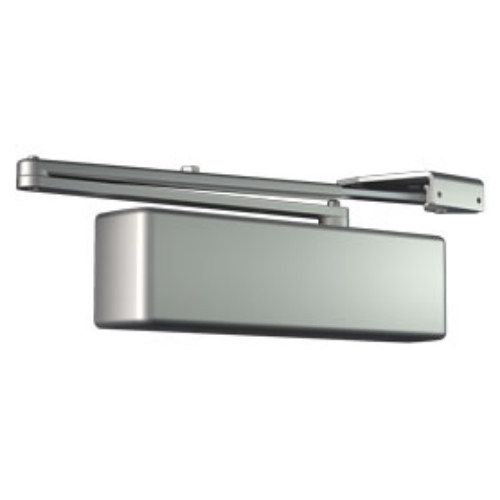

When a door closer fails in a school corridor, hospital entrance, or government building lobby, it's not just a maintenance call. It's a safety problem. Doors stay open when they shouldn't, slamming becomes a liability, and in high-traffic institutional buildings, that's never acceptable. The BEST EHD9016 AF90P 689 is built for exactly those environments.
Part of our full lineup of BEST door closers, the EHD9016 belongs to the award-winning EHD9000 series, a winner of the SIA New Products and Solutions Award for Lock and Key Solutions. It's an extra heavy-duty, Grade 1 hydraulic surface with a single-piece cast iron body manufactured in Germany. No seams, no threaded two-piece construction. Just precision-cast iron engineered to hold up from day one through decades of daily use.
What Certifications Does the BEST EHD9016 Carry?
As one of the most rigorously rated surface-mounted door closers available, the EHD9016 meets ANSI/BHMA A156.4 Grade 1 requirements, the highest domestic standard for commercial hydraulic closers. It's UL and cUL listed, approved to UL10C for positive pressure (required on fire-rated door openings), and fully compliant with ANSI/ICC A117.1 and ADA barrier-free accessibility standards. On a standard 3-foot-wide interior door, it adjusts to meet the 5-pound maximum opening force requirement, which matters for every ADA-regulated facility on your door schedule.
BEST EHD9016 AF90P Technical Specifications
Body material: single-piece cast iron. Closer type: hydraulic surface-mounted. Arm: AF90P flat form parallel arm, tri-mount (Tri-Pack), 0" to 4" reveal, P90 included. Spring sizes 1 through 6 with 50% power. Two closing control valves: 180 to 15 degrees / 15 to 0 degrees. Backcheck: adjustable with positioning adjustment. Handing: non-handed. Maximum door width: 48" interior, 42" exterior. Maximum door weight: 180 lbs. Hydraulic fluid: all-weather proprietary ester oil. Fasteners: self-drilling and self-tapping screws included for 1-3/4" thick doors. Cover: full dual-clamp plastic. Finish: 689 Aluminum Painted. Warranty: 35-year limited.

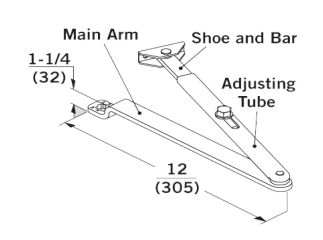

How the Tri-Mount AF90P Arm Works
The AF90P tri-pack delivers three mounting configurations in one package: regular arm, top jamb, and parallel arm, with no extra brackets needed. The flat form profile keeps the arm tight to the door face, which reduces clearance conflicts in narrow corridor applications. Reveal adjusts from flush at 0" up to 4" to cover most frame conditions without specialty spacers.
Self-Regulating Performance in Any Climate
Standard closers drift in cold weather. Fluid thickens, doors start slamming, and you're back adjusting valves. The EHD9016 uses self-regulating valves with BEST's proprietary ester oil, which holds your closing speed, backcheck, and delayed-action settings through seasonal temperature changes. You calibrate it once. It stays calibrated.
Simple Installation, Front-Accessible Adjustments
The spring-size indicator and all adjustment valves are front-facing and accessible under the cover at any time, including after installation. No need to dismount the unit. Self-drilling and self-tapping screws are included. The dual-clamp plastic cover locks firmly on both ends and won't pop off the way single-clip designs do in high-use settings.
Where Is the EHD9016 Commonly Specified?
This closure is specified for schools, hospitals, government buildings, office building entrance doors, institutional facilities, and any commercial opening handling heavy daily foot traffic. The non-handed design means one SKU covers both door swings, simplifying spec and stocking for large door schedules. Browse our complete range of commercial door closers if you need multiple closer types for a single project.
Available Finishes
The EHD9016 is available in 689 Aluminum, 691 Bronze, 693 Black, 695 Satin Nickel, and 696 Satin Stainless. All are painted finishes, which hold up better than plated options in exterior-adjacent or humid conditions.
