Cal-Royal ADB-702 Heavy Duty, Automatic Door Bottom, Semi-Mortised With Neoprene Seal

Cal-Royal ADB-702 Automatic Door Bottom, Regular Duty, Semi-Mortised with Vinyl Seal

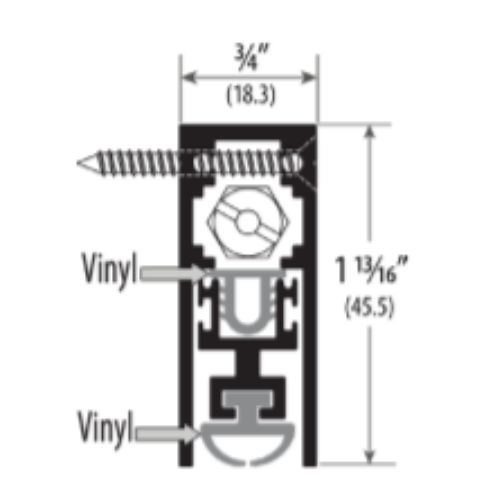

Width: 3/4" (18.3mm)Height:1 13/16" (45.5mm)Max. Drop: 3/4" (19.1mm)

Automatic Door Bottoms are made from Extruded Aluminum combined with Neoprene or Vinyl seals.

It provides an efficient seal that blocks out air, smoke, sound, and fire.   Available in Surface Mounted, Semi-Mortised and Mortised Applications.

It can be installed on either wood or hollow metal doors; or as specified on each model.

Non-Handed, Reversible for Left or Right Hand Installation.

Low closing force; Slotted holes for adjustment.

Maximum cut should not be closer to 1 1/2" to the set screw.

Comes Standard with: #8 x 1 1/2" Truss PHSMS, and #8 x 1 1/2" Truss FHSMS

Model:Cal-Royal, ADB-702, ADB-702AV, ADB-702AV36, ADB-702AV48, ADB-702DV, ADB-702DV48, ADB-702DV36
