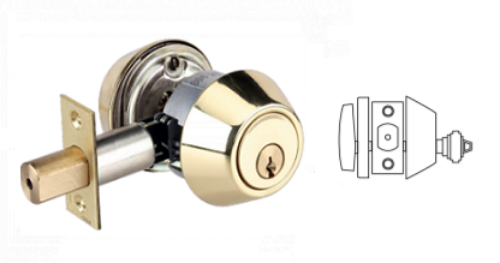

Cal-Royal CL600 Single Cylinder Deadbolt

Cal-Royal CL600 Grade 2 Heavy duty Single cylinder deadbolt, UL listed - ANSI:E0172

Classroom Deadbolt Lock:Deadbolt thrown or retracted by key from outside. Inside turn unit will retract bolt only. Bolt automatically deadlocks when fully thrown.

Material- Wrought brass or stainless steel.

Door Ranges- Adjustable for 1-3/8" to 1-3/4" door thickness.

Backset- Adjustable 2-3/8" or 2-3/4. UL Listed.

Strikes- 1-1/8" X 2-3/4" square corner.

Keyway- 6 pin high security "C" keyway. Additional Keyways - Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Kwikset, Arrow, Yale 8, Yale GA.

Bore Diameter- 1" for latch. 2 1/8" for lock housing.

Face Plate- Standard 2-1/4" x 1" packed with 1/8" plastic filler for 1-1/8" width.

Extra security 1" throw bolt with 1/4" free spinning anti-cut through pin. 3" screws with wood frame reinforcer greatly strengthens door frames.

Finishes:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US26 - Bright Chrome, US10 - Satin Bronze, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

Model:Cal-RoyalCL600,CL600US26D, CL600US3, CL600US4, CL600US5, CL600US10, CL600US15, CL600US10B, CL600US26.

Meets or exceeds standards of BHMA/ANSI A 156.5 Grade- 2 requirements
