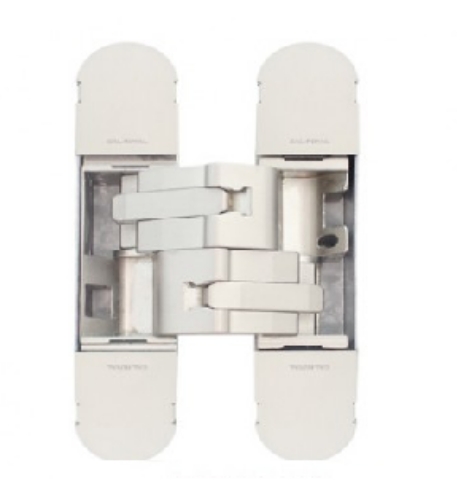

Cal-Royal CR3D62 Invisible Hinge - Box Of 3

About this item

Cal-Royal CR3D62 Invisible Hinge - 6 5/16" x 1 1/4" - Box Of 3

Technical Specifications:

180 Degree Fluid Opening

1 1/2 (38mm) minimum door thickness

Overall Length: 6 5/16" (160mm)

Width (frame part): 1 1/4 (32mm)

Width (door part): 1 1/4 (32mm)

Depth: 1 1/8" (29mm)

Load Capacity: 3 or 4 Hinges - 120kg (265lbs) 2 Hinges - 80kg (177lbs)

Fire Proof Min. : EI-120"

Main Features:

Zinc Alloy manufactured for Oxidation Resistance

Durable Galvanized Steel Covers to conceal the screws

Used for Wood and Hollow Metal Doors

Easy 3D Adjusting System or Fixed

Easy Installation and Maintenance Free

Complete Reversibility (same slot on the door and the frame)

Total Recessed Hinge Body (door and frame gap is very small)

UL Listed for 2-Hour Fire Rated Doors

European Standard EN1634-1 for 120-Minute Fire Doors

CE Certified for 200,000 Opening / Closing Cycles

100% Made in Italy

Elegant Minimalistic Design that is available in

Cal-Royal Invisible Hinge, CR3D62, CR3D62US1, CR3D62US14, CR3D62US15, CR3D62US26D, CR3D62US28, CR3D62US4, CR3D62US10B,

Resources

• https://www.cal-royal.com/files/3D-HINGE-CATALOG_.pdf
