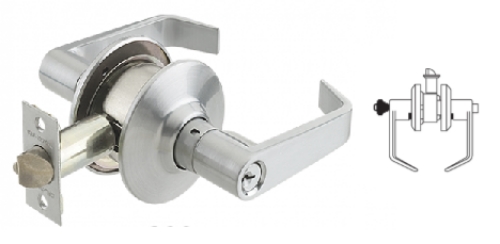

Cal-Royal EPIC 800 Entrance Lever Lock

Cal-Royal EPIC 800 Entrance Lever Lock - Ansi: F109

ENTRANCE / OFFICE LOCK: Turn / Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.

DOOR RANGES: 1 3/8" to 2" thickness doors.

BACKSET: 2 3/8" or 2 3/4" backset.

LATCH BOLT: Diecast Zinc, Brass, Chrome or Brass plated 7 /16" (11mm) Throw Latch Bolt.

LATCH FACEPLATE: 2 1/4" x 1 1/8" for 2 3/4" backset. 2 1/4" x 1" for 2 3/8" backset.

CYLINDER & KEYWAYS: 5 pin solid brass Schlage "C" keyway standard.

STRIKES: ASA Strike Standard for Entrance function (Commercial); T-Strike Standard for Privacy and Passage functions (Commercial). Full Lip Strike Round Corner Standard for Privacy and Passage functions (Residential).

ANSI STANDARDS Meets or exceeds requirements of ANSI / BHMA A156.2 Series 4000, Grade 3.

LATCH & STRIKE SCREWS: 8-32 x 1" FPH Dual Purpose.

Model: Cal-Royal, EPIC800, EPIC 800, EPIC 800US26D, HOL00US3, EPIC 800 US26D, EPIC 800 US3,
