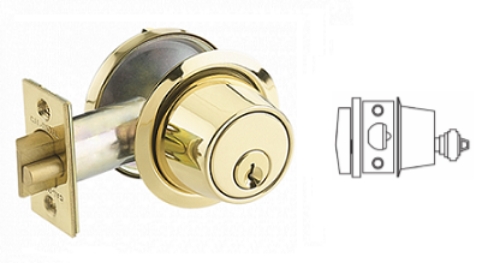

Cal-Royal GL160 Grade 2, Single cylinder Latch

Cal-Royal GL160 Standard duty Grade 2, Single cylinder Latch (2 3/8" backset) ANSI:E0152

FUNCTION:Dead locking latch bolt retracted by key from outside and thumb turn on inside. Otherwise always locked.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:Adjustable 2-3/8" or 2-3/4.

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 2 1/8" or 1 1/2" for lock housing.

CYLINDER & KEYWAY:6 pin solid brass "C" keyway standard.

STRIKE:1 1/8" x 2 3/4" square corner.

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal Series,GL160, GL160US26D, GL160US3, GL160US4, GL160US5, GL160US10, GL160US15, GL160US10B, GL160US26.
