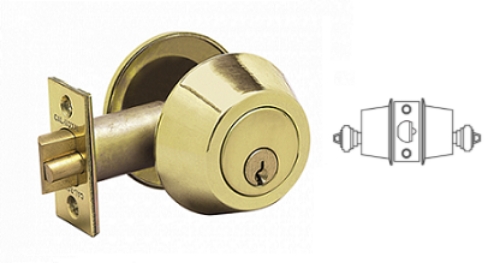

Cal-Royal GL330234 Standard Duty Grade 2, Double Cylinder Gate Latch (2 3/4" backset)

Cal-Royal GL330234 Standard Duty Grade 2, Double Cylinder Gate Latch - ANSI:E0143  (2 3/4" backset)

FUNCTION:Dead locking latch bolt retracted by key from either side. Otherwise, always locked.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:  2-3/4"

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

CYLINDER & KEYWAY:6 pin solid brass "C" keyway standard.

STRIKE:1 1/8" x 2 3/4" square corner.

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal Series,GL330234, GL330234 US26D, GL330234 US3, GL330234 US4, GL330234 US5, GL330234 US10, GL330234 US15, GL330234 US10B, GL330234 US1, GL330234 US26. GL330234US26D, GL330234US3, GL330234US4, GL330234US5, GL330234US10, GL330234US15, GL330234US10B, GL330234US1, GL330234US26.GATE LATCH DEAD LATCHES Series
