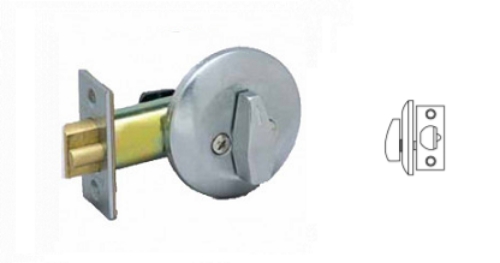

Cal-Royal GL58234 Grade 2, One Sided Latch Bolt - No outside trim - (2 3/4" backset)

Cal-Royal GL58234 Standard Duty Grade 2, One Sided Latch Bolt - No outside trim - (2 3/4" backset)

FUNCTION:Dead latch retracted by thumb turn, no outside trim. Visible from one side of door only. Otherwise always locked.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:2-3/8"

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

STRIKE:1 1/8" x 2 3/4" square corner.

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal GL58234Series,GL58, GL58234US26D, GL58234US3, GL58234US4, GL58234US5, GL58234US10, GL58234US15, GL58234US10B, GL58234US1, GL58234US26, GL58 234 US26D, GL58234 US3, GL58234 US4, GL58234 US5, GL58234 US10, GL58234 US15, GL58234 US10B, GL58234 US1, GL58234 US26,

?
