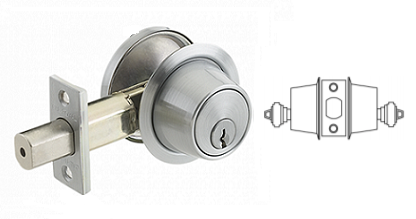

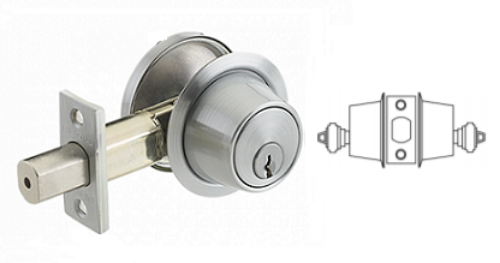

Cal-Royal HSCB162 "HSK" Keyway Grade 2, Double cylinder deadbolt

Cal-RoyalCB162
Cal-RoyalCB162
naxt
prev

Product Details

Cal-Royal HSCB162 "HSK" Keyway*Grade 2, Double cylinder deadbolt - ANSI:E0142*

FUNCTION:Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:Adjustable 2-3/8" or 2-3/4.

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 2 1/8" or 1 1/2" for lock housing.

CYLINDER & KEYWAY:6 pin solid brass "C" keyway standard.

STRIKE:1 1/8" x 2 3/4" square corner.

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal SeriesHSCB160, HSCB162US26D, HSCB162US3, HSCB162US4, HSCB162US5, HSCB162US10, HSCB162US15, HSCB162US10B, HSCB162US26.

Cal-Royal HSCB162 "HSK" Keyway Grade 2, Double cylinder deadbolt

SKU: HSCB162

In Stock
Picture for manufacturer Cal-Royal
icon Chat

$101.70
