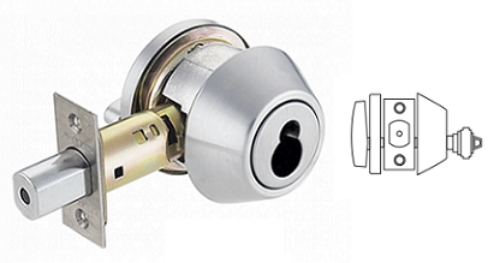

Cal-Royal ICSCCRB600 single cylinder Classroom deadbolt Lock - Accepts Schlage LFIC Core

Cal-Royal ICSCCRB600 Grade 1 Single Cylinder Classroom Deadbolt Lock - Accepts Schlage Large-format Interchangeable Core (LFIC) (core not included)Classroom Deadbolt Lock:

Deadbolt thrown or retracted by key outside. Inside turn unit will retract bolt only. Bolt automatically deadlocks when fully thrown. Trim- Wrought brass or stainless steel. Door Ranges - Adjustable for 1-1/2" to 2" door thickness.

Backset- 2 3/4" or 2 3/8". Specify. Bore Diameter - 1" for latch. 2 1/8" for lock housing.

Face Plate- Standard 2-1/4" x 1 1/8".

Strike- 1 1/8" x 2 3/4" square corner.

UL- Listed for 3 Hours

Extra security 1" throw bolt with 1/4" free spinning anti-cut through pin. 3" screws with wood frame reinforcer greatly strengthens door frames .

All steel latch case and mechanism Steel mounting plate, No exposed mounting screws on double cylinder deadbolt, Free turning, wrench resistant, tapered cylinder ring, ADA Ergonomic thumb turn.

Finishes:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US26 - Bright Chrome, US10 - Satin Bronze, US10B - OIl Rubbed Bronze

Model:ICSCCRB600US26D, ICSCCRB600US3, ICSCCRB600US4, ICSCCRB600US10, ICSCCRB600US10B, ICSCCRB600US26.

Meets or exceeds standards of BHMA/ANSI A 156.5 Grade 1 requirements Sturdy
