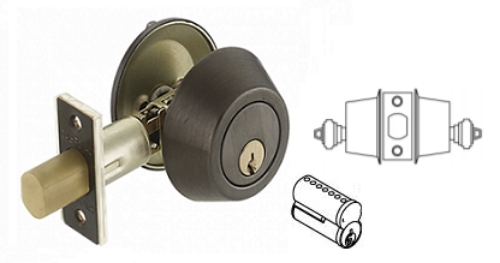

Cal-Royal ICT330 Grade 2, Double cylinder deadbolt - Accepts SFIC Core

Cal-Royal ICT330 Standard Duty Grade 3, Double cylinder deadbolt - Small-format Interchangeable Core (SFIC) (core not included)*- ANSI:E0153*

FUNCTION:Dead locking deadbolt retracted by key from either side.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:Adjustable 2-3/8" or 2-3/4".

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

INTERCHANGEABLE CORE:Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

STRIKE:1 1/8" x 2 3/4" square corner.

Conforms with ANSI A 156.2 Series 4000, Standard Duty GRADE 2

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal SeriesICT330, ICT330US26D, ICT330US3, ICT330US4, ICT330US5, ICT330US10, ICT330US15, ICT330US10B, ICT330US1, ICT330US26.
