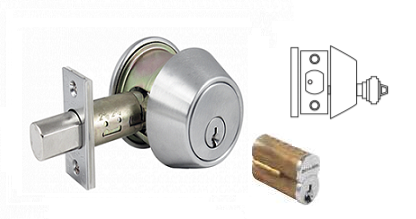

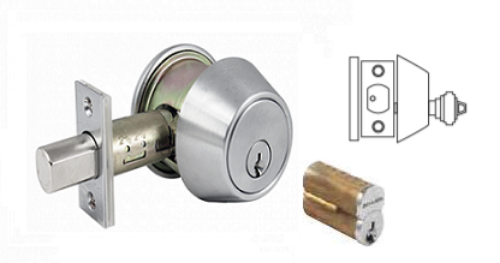

Cal-Royal ICULT700 Grade 2 Heavy duty One-Way Deadbolt Lock

Cal-Royal ICULT700 Grade 2 Heavy duty One-Way Deadbolt Lock, UL listed - Accepts Small-format Interchangeable Core (SFIC) (core not included) - ANSI:E1161

One Way Dead Bolt WITH INTERNAL PLATE: Deadbolt thrown or retracted by key only. Bolt automatically deadlocks when fully thrown. Blank plate inside (exposed screws).

Material- Wrought brass or stainless steel.

Door Ranges- Adjustable for 1-3/8" to 1-3/4" door thickness.

Backset- Adjustable 2-3/8" or 2-3/4. UL Listed.

Strikes- 1-1/8" X 2-3/4" square corner.

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

Bore Diameter- 1" for latch. 2 1/8" for lock housing.

Face Plate- Standard 2-1/4" x 1" packed with 1/8" plastic filler for 1-1/8" width.

Extra security 1" throw bolt with 1/4" free spinning anti-cut through pin. 3" screws with wood frame reinforcer greatly strengthens door frames.

Finishes:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US26 - Bright Chrome, US10 - Satin Bronze, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

Model:Cal-Royal T3700 ICULT700 , ICULT700 US26D, ICULT700 US3, ICULT700 US4, ICULT700 US5, ICULT700 US10, ICULT700US15, ICULT700US10B, ICCL600US26.

Meets or exceeds standards of BHMA/ANSI A 156.5 Grade 2 requirements
