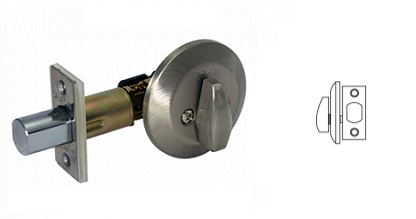

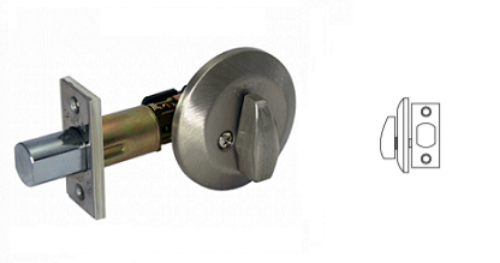

Cal-Royal ID58 Grade 2, One Sided Deadbolt - No outside trim

Cal-Royal ID58 Standard Duty Grade 2, One Sided Deadbolt - No outside trim

FUNCTION:Deadbolt thrown or retracted by turn unit only. No outside trim. Bore halfway through door for installation visible from one side of door only

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:Adjustable 2-3/8" or 2-3/4".

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

STRIKE:1 1/8" x 2 3/4" square corner.

Conforms with ANSI A 156.2 Series 4000, Standard Duty GRADE 2

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal ID58Series,ID58, ID58US26D, ID58US3, ID58US4, ID58US5, ID58US10, ID58US15, ID58US10B, ID58US1, ID58US26. ID58, STANDARD DUTY DEADBOLTS Series
