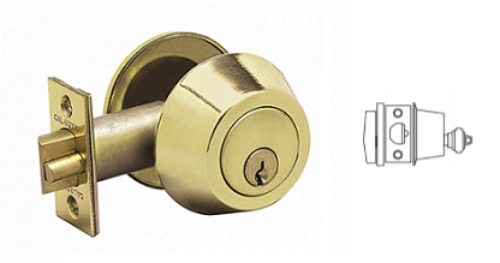

Cal-Royal KWGLT220234 Grade 2, Single cylinder Gate Latch (2 3/4" backset)

Cal-Royal KWGLT220234 Standard Duty Grade 3, Single cylinder Gate Latch - ANSI:E0153  (2 3/4" backset)

FUNCTION:Dead locking latch bolt retracted by key from outside or by thumb turn on inside. Otherwise always locked.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:  2-3/4"

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

CYLINDER & KEYWAY:Kwikset "KW" Keyway 6 pin (Standard)

STRIKE:1 1/8" x 2 3/4" square corner.

Conforms with ANSI A 156.2 Series 4000, Standard Duty GRADE 2

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal Series,KWGLT220234, KWGLT220234 US26D, KWGLT220234 US3, KWGLT220234 US4, KWGLT220234 US5, KWGLT220234 US10, KWGLT220234 US15, KWGLT220234 US10B, KWGLT220US1, KWGLT220234 US26.
