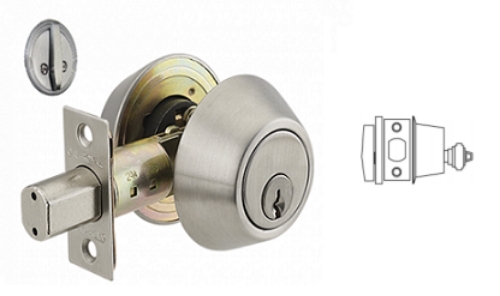

Cal-Royal LSD01 Standard Duty Grade 3, Single Cylinder Deadbolt

Cal-Royal LSD01*Standard Duty Grade 3, Single Cylinder Deadbolt - ANSI:E0153*

FUNCTION:Dead locking latch bolt retracted by key from outside or by thumb turn on inside.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:Adjustable 2-3/8" or 2-3/4".

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

CYLINDER & KEYWAY:6 pin solid brass "C" keyway standard.

STRIKE:1 1/8" x 2 3/4" square corner.

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal LSDSeries,LSD01, LSD01US26D, LSD01US3, LSD01US4, LSD01US5, LSD01US10, LSD01US15, LSD01US10B, LSD01US1, LSD01US26.
