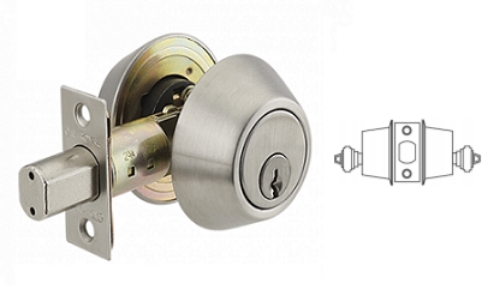

Cal-Royal LSDD88 Grade 3, Double Cylinder Deadbolt

Cal-Royal LSDD88*Standard Duty Grade 3, Double Cylinder Deadbolt - ANSI:E0143*

FUNCTION:Dead locking deadbolt retracted by key from either side.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:Adjustable 2-3/8" or 2-3/4".

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

CYLINDER & KEYWAY:6 pin solid brass "C" keyway standard.

STRIKE:1 1/8" x 2 3/4" square corner.

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal LSDSeries,LSDD88, LSDD88US26D, LSDD88US3, LSDD881US4, LSDD881US5, LSDD88US10, LSDD88US15, LSDD88US10B, LSDD88US1, LSDD88US26.

?
