Cal-Royal PG-602 Perimeter Gasket

Cal-Royal PG-602 Perimeter Gasket

Aluminum Channel with Vinyl Insert

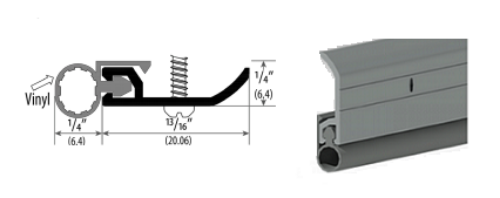

Width: 1/4" (6.4mm)Profile Height:13/16" (20.06mm)Total Height:1 1 /16" (26.46mm)

Comes Standard with #6 x 5/8" PPHSMS

Model:Cal-Royal, PG-602,PG-602 36" x 84", PG-6023684, PG-602AV-3684, PG-602AV-4884AV, PG-602DV-4884,PG-602DV-3684, PG-60248" x 96", PG-60272" x 84" 72" x 96" AV - Mill Finish Aluminum with Vinyl Insert DV - Dark Bronze Anodized Aluminum With Vinyl Insert

Perimeter Gasketing consists of an Aluminum Channel with a Vinyl Rubber Seal.

It is designed to seal the gaps around the top & two sides of a door.

Can be installed on either Wood or Metal frame.

It contains (1) Jamb Header piece and (2) Hinge & Strike Jamb pieces of weatherstrip.

Each weatherstrip can seal gaps up to the depth of its seal.

Seal depth provided on each illustration (example: PG-602 has a 1/4" seal; therefore, it can seal up to a 1/4" gap).

Channels are punched with slotted holes for easy adjustment.
