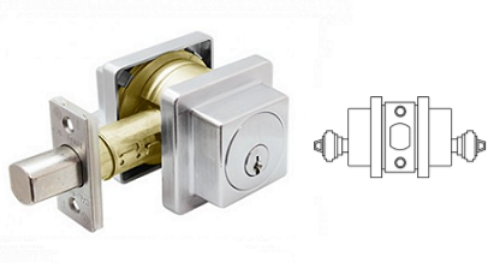

Cal-Royal SQ-330 Heavy duty Grade 2, Double Cylinder Deadbolt

Cal-Royal SQ-330 Heavy duty Grade 2,*Double*Cylinder Deadbolt, UL listed - ANSI:E0142

Heavy Duty Double Cylinder Deadbolt:Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.

Material- Wrought brass or Zinc

Door Ranges- Adjustable UL Listed 3 Hour Fire Rating 1 3/8" (35mm) to 1 3/4" (45mm) door thickness

Backset- Adjustable 2-3/8" or 2-3/4. UL Listed.

Strikes- 1-1/8" X 2-3/4" Square Corner. Extra security 1" throw bolt with 1/4" free spinning anti-cut through pin. 2 pcs x 3" screws with wood frame reinforcer greatly strengthens door frames.

Keyway- 6 pin high security "C" keyway.

Bore Diameter- 1" for latch. 2 1/8" for lock housing.

Face Plate- Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations

Finishes:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US26 - Bright Chrome, US10 - Satin Bronze, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

Model:Cal-RoyalSQ300Series,SQ-330, SQ-330US26D, SQ-330US3, SQ-330US4, SQ-330US5, SQ-330US10, SQ-330US15, SQ-330US10B, SQ-330US1, SQ-330US26.
