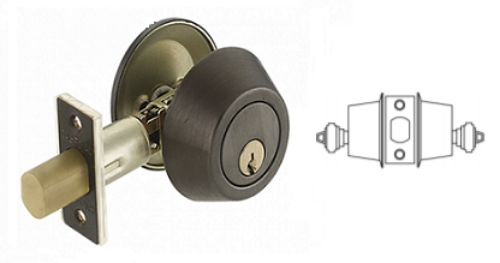

Cal-Royal T330 Grade 2, Double cylinder deadbolt

Cal-Royal T330 Standard Duty Grade 3, Double cylinder deadbolt - ANSI:E0153

FUNCTION:Dead locking deadbolt retracted by key from either side.

MATERIAL:Wrought brass or Stainless Steel.

DOOR RANGES:Adjustable 1 3/8" (35mm) to 1 3/4" (45mm) door thickness.

BACKSET:Adjustable 2-3/8" or 2-3/4".

DEADBOLT FACEPLATE:Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations.

BORE DIAMETER:1" for latch, 1 1/2" or 2 1/8" for lock housing.

CYLINDER & KEYWAY:6 pin solid brass "C" keyway standard.

STRIKE:1 1/8" x 2 3/4" square corner.

Conforms with ANSI A 156.2 Series 4000, Standard Duty GRADE 2

FINISHES:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

MODEL:Cal-Royal SeriesT330, T330US26D, T330US3, T330US4, T330US5, T330US10, T330US15, T330US10B, T330US1, T330US26.STANDARD DUTY DEADBOLTS Series
