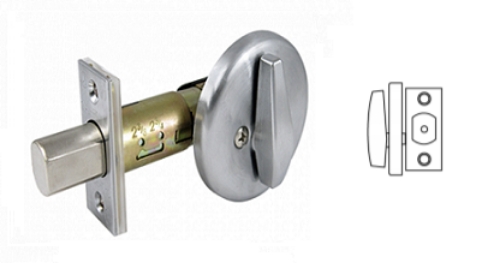

Cal-Royal ULID363 Heavy duty One Sided Dead Bolt Lock

Cal-Royal ULID363 Grade 2 Heavy duty One Sided Dead Bolt Lock, UL listed

One Sided Dead Bolt:Deadbolt thrown or retracted by turn unit only. No outside trim. Bore halfway through door for installation visible from one side of door only.

Material- Wrought brass or stainless steel.

Door Ranges- Adjustable for 1-3/8" to 1-3/4" door thickness.

Backset- Adjustable 2-3/8" or 2-3/4. UL Listed.

Strikes- 1-1/8" X 2-3/4" square corner.

Bore Diameter- 1" for latch. 2 1/8" for lock housing.

Face Plate- Standard 2-1/4" x 1" packed with 1/8" plastic filler for 1-1/8" width.

Extra security 1" throw bolt with 1/4" free spinning anti-cut through pin. 3" screws with wood frame reinforcer greatly strengthens door frames.

Finishes:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US26 - Bright Chrome, US10 - Satin Bronze, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

Model:Cal-Royal T3700 ULID363 , ULID363 US26D, ULID363 US3, ULID363 US4, ULID363 US5, ULID363 US10, ULID363US15, ULID363US10B, ULID363US26.

Meets or exceeds standards of BHMA/ANSI A 156.5 Grade 2 requirements
