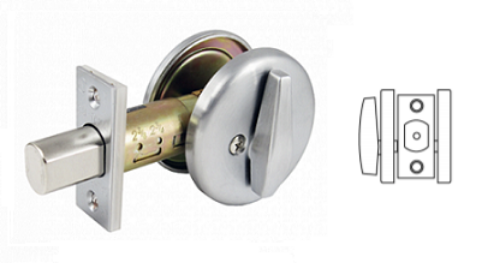

Cal-Royal ULID365 Grade 2 Heavy duty One Sided Dead Bolt Lock - With External Plate

Cal-Royal ULID365 Grade 2 Heavy duty One Sided Dead Bolt Lock,*With External Plate -*UL listed

One Sided Dead Bolt With External Plate:Deadbolt thrown or retracted by turn unit only. Blank plate is on external trim to be used on bore holes 2 ⅛" wide.

Material- Wrought brass or stainless steel.

Door Ranges- Adjustable for 1-3/8" to 1-3/4" door thickness.

Backset- Adjustable 2-3/8" or 2-3/4. UL Listed.

Strikes- 1-1/8" X 2-3/4" square corner.

Bore Diameter- 1" for latch. 2 1/8" for lock housing.

Face Plate- Standard 2-1/4" x 1" packed with 1/8" plastic filler for 1-1/8" width.

Extra security 1" throw bolt with 1/4" free spinning anti-cut through pin. 3" screws with wood frame reinforcer greatly strengthens door frames.

Finishes:US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass, US26 - Bright Chrome, US10 - Satin Bronze, US10B - OIl Rubbed Bronze, US15 - Satin Nickel, US5 - Antique Brass

Model:Cal-Royal T3700 ULID365 , ULID365 US26D, ULID365 US3, ULID365 US4, ULID365 US5, ULID365 US10, ULID365US15, ULID365US10B, ULID365US26.

Meets or exceeds standards of BHMA/ANSI A 156.5 Grade 2 requirements
