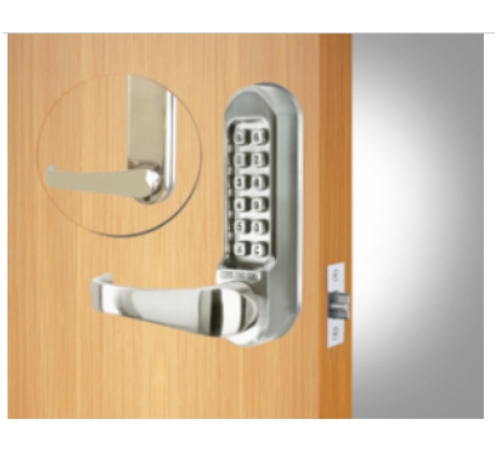

Codelocks CL515 Mechanical Keyless Lock w Passage

*Codelock CL515Technical InformationDoor thickness: 1 3/8" 2 3/8" (inches Door material:Suitable for wooden doorsSpindle type:2 part 5/16" (inches) spring loaded spindleBody material:Zinc alloyNon handed:  Lock will fit doors hung on the left or rightHeavy duty tubular Mortise deadlatch with Passage Mode OptionThe outside lever handle will retract the latch after a correct code is entered. The spring loaded latchbolt will lock automatically when the door is closed. *Passage Mode Option on the keypad.

In Passage mode the outside lever will retract the latchbolt without using a code. This option is ideal for day to day use when punching in a code is not necessary e.g. external doors in a school with high traffic.

Internal doors and External doorsMechanical CodelockHeavy duty tubular mortise deadlatchPassage Mode OptionLever handle lock for doors hung on the left or rightAvailable in Stainless Steel and Polished BrassUse in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the homeBack to Back option available CL515BBCL515 stainless steel lock available with either lever or knob handle.

The CL515 locks are supplied with a random code commencing with theCclear button. To change the code after fitting, the lock must first be removed from the door. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 10 buttons a total of 1,023 different codes are available, any of which may be entered in any order.

Lock comes with a standard 2 3/8" Deadlatch.

Optional 2 3/4" Deadlatch available

Model: codelocks, code locks, codelock, code lock, CL515-SS, CL515 SS, CL515SS, CL515-PB, CL515 PB, CL515PB, Codelocks 515, Codelock CL500 series, Codelocks 500 series
