Codelocks CL615 Tubular Dead Latch with Passage Mode Option

**Technical Information

**

Door thickness:1 3/8" 2 3/8" (inches)Door material:Suitable for wooden doorsSpindle type: 2 part 5/16" (inches) spring loaded spindle Body material: Zinc alloy  Non handed: Lock will fit doors hung on the left or right

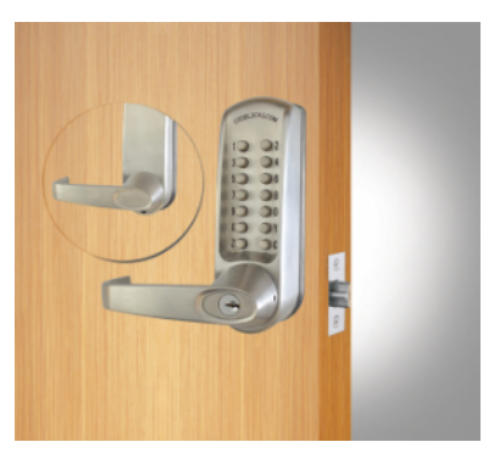

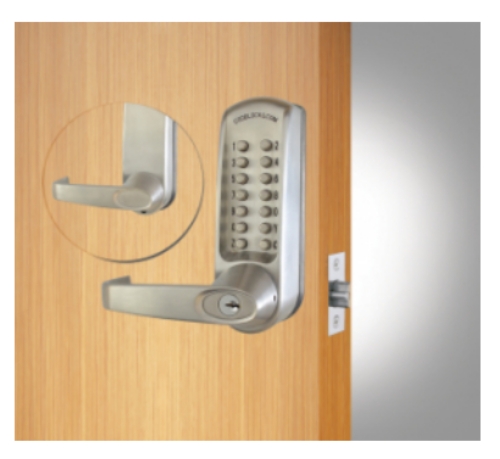

The CL615K is a heavy duty tubular mortise deadlatch with Passage mode option.

The outside lever handle will retract the latch after a correct code is entered. The spring loaded deadlatch will lock automatically when the door is closed.

Quick Code change! The CL600 range incorporating the new Quick Code system allows on door code change in seconds. Typically most mechanical digital locks require the lock to be removed from the door or partly disassembled to change the code. Passage mode access option on the keypad. In Passage mode the outside lever will retract the latchbolt without using a code. This option is ideal for day to day use when punching in a code is not necessary e.g. external doors in a school with high traffic.

Internal doors and External doorsQuick Code change - no need to remove lock from doorMechanical CodelockPassage mode optionLever handle lock for doors hung on the left or rightAvailable in Stainless Steel and Polished BrassUse in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the homeCL615K brushed steel lock available with either lever or knob handle

The CL615K locks are supplied with a random code commencing with theCclear button. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 12 buttons a total of 4,095 different codes are available, any of which may be entered in any order. The CL615K has been designed so that the code can be changed on the door in seconds

Lock comes with a standard 2 3/8" Deadlatch.

Optional 2 3/4" Deadlatch available

Model: codelocks, code locks, codelock, code lock, CL615-SS, CL615 SS, CL615SS, CL615K-SS, CL615K SS, CL615KSS, CL615-K-SS, CL615-K SS, CL615-KSS, CL615-PB, CL615 PB, CL615PB, CL615K-PB, CL615K PB, CL615KPB, CL615-K-PB, CL615-K PB, CL615-KPB
