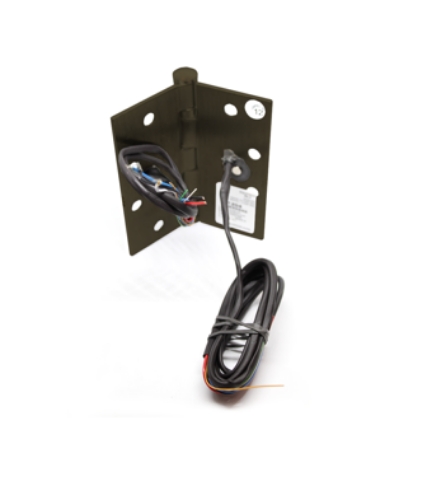

Command Access ETM6WH4545-613 CH-BB91 Monitor Hinge, 4.5in x 4.5in, Wires 2/18 Gauge + 4/28 Gauge, Magnetic Switch, 5-Knuckle, Ball Bearing

Command Access ETM6WH4545-613 CH-BB91Monitor Hinge, 4.5in x 4.5in (4545), Wires 2/18 Gauge + 4/28 Gauge, Magnetic Switch, 5-Knuckle, Ball Bearing, Standard Weight, Non-Ferrous Brass Base, (Non Fire-Rated), Oil Rubbed Bronze US10B/613  The Energy Transfer Monitor Hinge (ETM) like the ETH hinge is the ideal way to pass low voltage power from the hinge jamb to the lockset. There are no exposed wires, cables or switches that can be tampered with and the hinge maintains the same appearance of a conventional non-power transfer hinge. What distinguishes it from the ETH hinge is that it has a concealed switching magnetic or mechanical monitor switch that signals the position of the door. We can modify almost any hinge and we maintain a large inventory of most major hinge brands in various sizes and Finishes. These can be ordered as a hinge with monitor switch only (ETM only) or as an electrified hinge with a monitor switch. Contact us if you don't see what you need listed.

Features:UL-F Listed.Easy installation.4' lead at no additional charge.Non-conductive wire access cap.3 year no hassle warranty.

Specifications:*Wires:6WH: (2/18ga + 4/28ga).Size:4.5 x 4.5Style:BB91: Command Access 5 Knuckle.Operating Voltage: 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)Amperage: 12V = 250 mA / 24V = 150 mASolenoid coil resistance: 12V = 49 Ω / 24V = 159 ΩPower consumption*: 3 watts
