Corbin Russwin CL33905 Fail Secure Lever, 12AC/DC, Grade 1 - DISCONTINUED

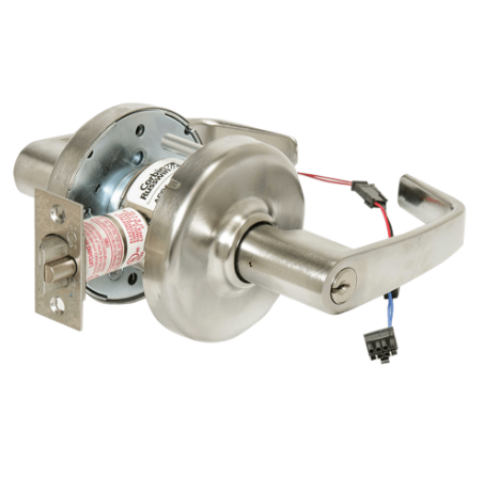

Corbin Russwin CL33905 Electrified Lockset - Fail Secure

Electrified Lockset -Fail Secure

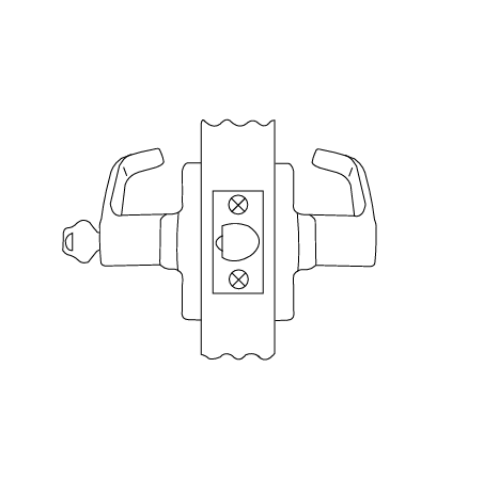

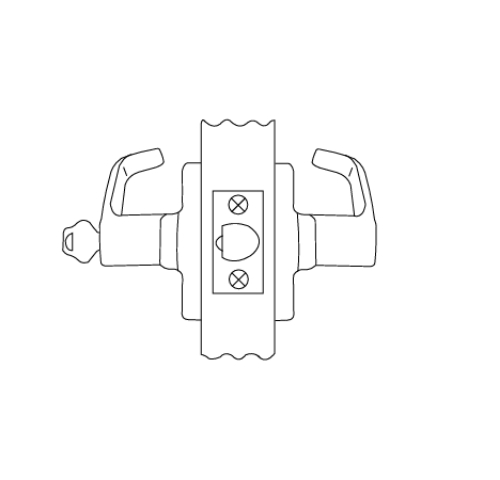

Deadlocking latchbolt by lever either side except when power off locks outside lever Power on/unlocks outside lever Inside lever always free Latchbolt retracted by key when power is off

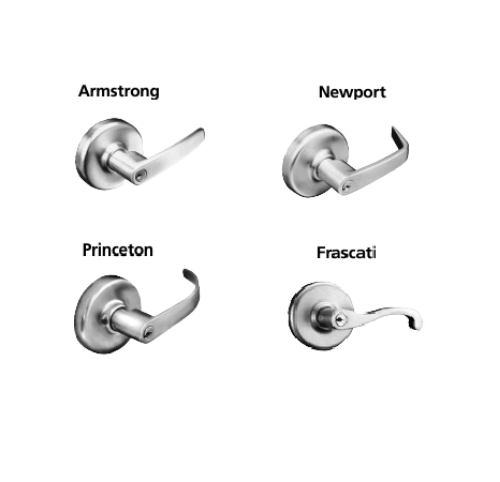

Levers Styles:Armstrong, Newport and Princeton Lever

Finishes:605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated

Non-Handed

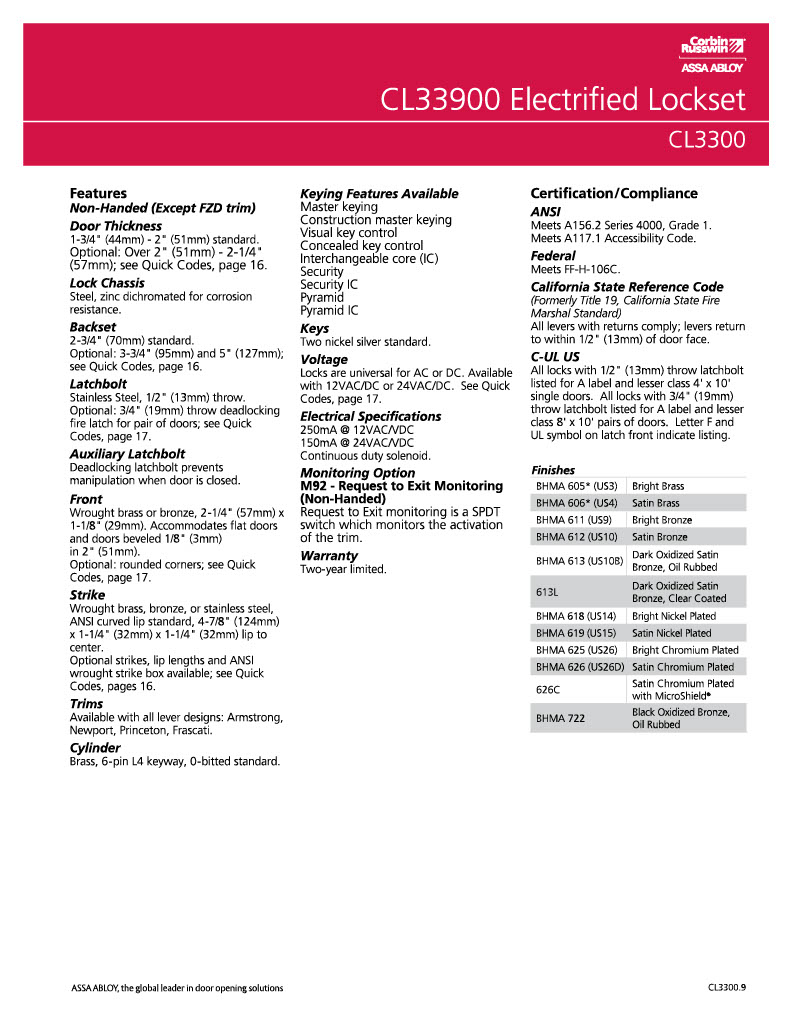

*Door Thickness:*1-3/4" (44mm) - 2" (51mm) standard.

Lock Chassis:Steel, zinc dichromated for corrosion resistance.

Backset: 2-3/4" (70mm) standard. Optional: 3-3/4" (95mm) and 5" (127mm)(please call). Latchbolt: Stainless steel with 1/2" throw. Optional: 3/4" throw deadlocking fire latch for pair of doors(please call).

Auxiliary Latchbolt:Deadlocking latchbolt prevents manipulation when door is closed.

Front:Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Cylinder:Brass, 6-pin, L4 keyway standard.

Keying Features Available:Master keying, Construction master keying, Interchangeable core (IC).

Strike:Wrought brass, bronze or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available(please call).

Keys:Two nickel silver standard.

**

Voltage* *Locks are universal for AC or DC. Available with 12VAC/DC or24VAC/DC.

Electrical Specifications* *250mA @ 12VAC/VDC 150mA @ 24VAC/VDC Continuous duty solenoid.

Warranty:**One-year limited.

Model:Corbin Russwin, CL33905, CL33905NZD, CL33905NZD605, CL33905NZD606, CL33905NZD612, CL33905NZD613, CL33905NZD625, CL33905NZD626, CL33905AZD, CL33905AZD605, CL33905AZD606, CL33905AZD612, CL33905AZD613, CL33905AZD625, CL33905AZD626, CL33905PZD, CL33905PZD605, CL33905PZD606, CL33905PZD612, CL33905PZD613, CL33905PZD625, CL33905PZD626, AD12, AD24, M92

CL33905NZD605CL6, CL33905NZD606CL6, CL33905NZD612CL6, CL33905NZD613CL6, CL33905NZD625CL6, CL33905NZD626CL6, CL33905AZD, CL33905AZD605CL6, CL33905AZD606CL6, CL33905AZD612CL6, CL33905AZD613CL6, CL33905AZD625CL6, CL33905AZD626CL6, CL33905PZD, CL33905PZD605CL6, CL33905PZD606CL6, CL33905PZD612CL6, CL33905PZD613CL6, CL33905PZD625CL6, CL33905PZD626CL6, AD12, AD24, M92

CL33905NZD605M08, CL33905NZD606M08, CL33905NZD612M08, CL33905NZD613M08, CL33905NZD625M08, CL33905NZD626M08, CL33905AZD, CL33905AZD605M08, CL33905AZD606M08, CL33905AZD612M08, CL33905AZD613M08, CL33905AZD625M08, CL33905AZD626M08, CL33905PZD, CL33905PZD605M08, CL33905PZD606M08, CL33905PZD612M08, CL33905PZD613M08, CL33905PZD625M08, CL33905PZD626M08, AD12, AD24, M92

ANSI:Meets A156.2 Series 4000, Grade 1.

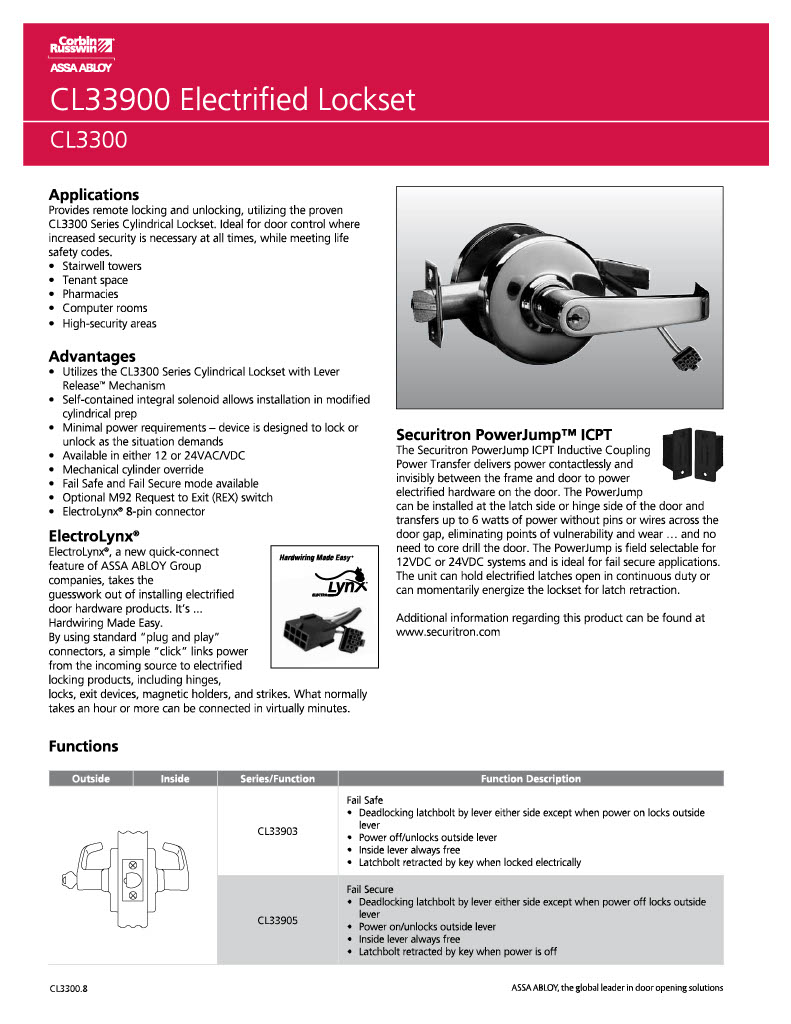

Advantages Utilizes the CL3300 Series Cylindrical Lockset with Lever ReleaseMechanismSelf-contained integral solenoid allows installation in standard cylindrical prep Minimal power requirements device is designed to lock or unlock as the situation demands  Available in either 12 or 24VAC/VDC  Mechanical cylinder override  Fail Safe and Fail Secure mode available

ElectroLynx** ElectroLynx, a new quick-connect feature of ASSA ABLOY Group companies, takes the guesswork out of installing electrified door hardware products. Its ... Hardwiring Made Easy. By using standard plug and play connectors, a simple click links power from the incoming source to electrified locking products, including hinges, locks, exit devices, magnetic holders, and strikes. What normally takes an hour or more can be connected in virtually minutes.

Certification/Compliance: ANSI: Meets A156.2 Series 4000, Grade 1. Meets A117.1 Accessibility Code. Federal:**Meets FF-H-106C. California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2of door face.

C-UL US:All locks with 1/2" (13mm) throw latchbolt listed for A label and lesser class 4' x 10' single doors. All locks with 3/4" (19mm) throw latchbolt listed for A label and lesser class 8' x 10' pairs of doors. Letter F and UL symbol on latch front indicate listing.
