Corbin Russwin CL3510 Grade 1 Passage/Closet Cylindrical Lock

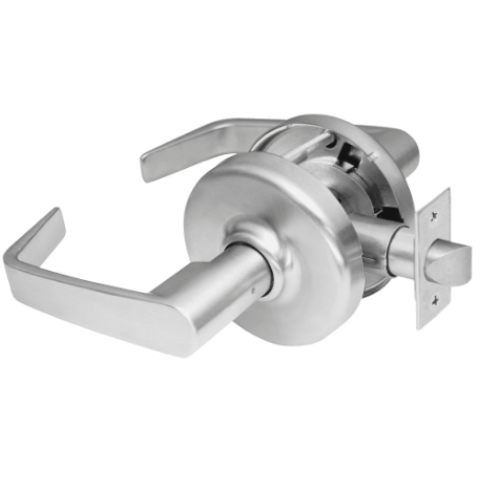

Corbin Russwin CL3510 Heavy-Duty Passage Lever

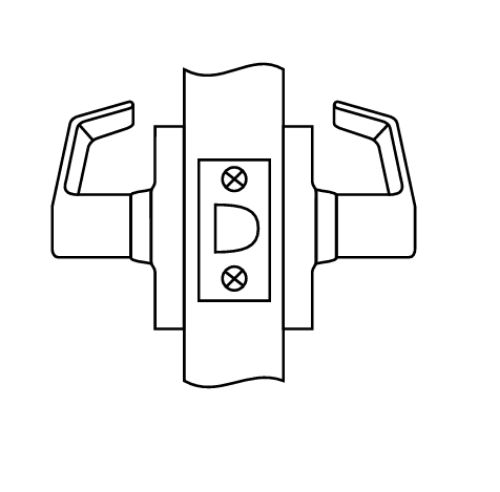

Passage- ANSI F75

Latchbolt by lever either side. Both levers always free.

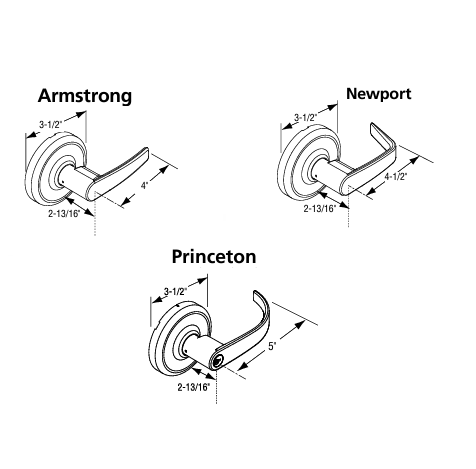

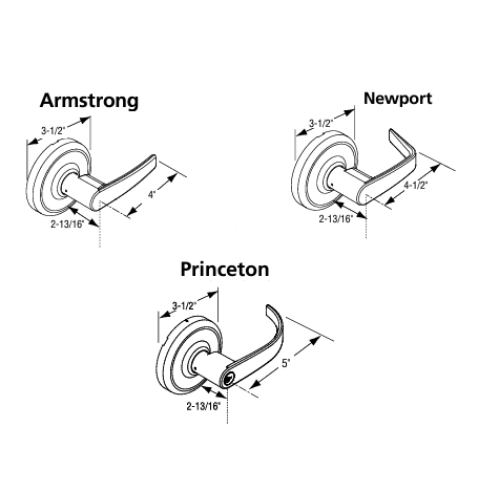

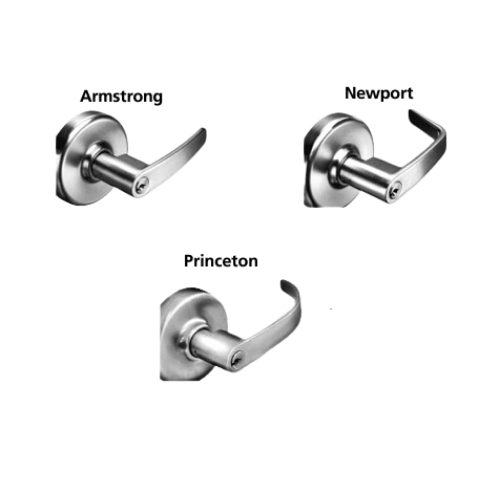

Levers Styles: Armstrong and Newport Lever

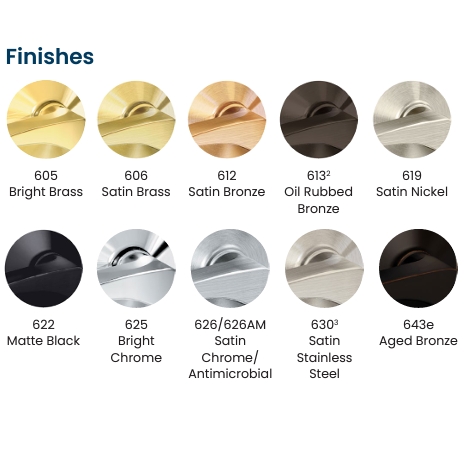

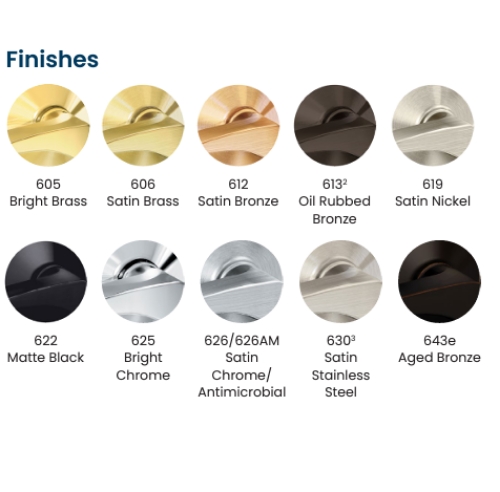

Finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated

ANSI:Meets A156.2 Series 4000, Grade 1.

Non-Handed

*Door Thickness:*1-3/4" (44mm) standard. (Optional: 1-3/8").

Lock Chassis:Steel, zinc dichromated for corrosion resistance.

Backset: 2-3/4" (70mm) standard. (Optional: 2-3/8", 3-3/4" and 5"). Latchbolt: Brass, chrome plated with 1/2" throw.

Auxiliary Latchbolt:Deadlocking latchbolt prevents manipulation when door is closed.

Front:Brass, Bronze or Stainless Steel. 2-1/4" x 1-1/8" standard for 2-3/4", 3-3/4" and 5" backset. 2-1/4" x 1" standard for 2-3/8" backset. Accommodates flat doors and doors beveled 1/8" in 2". Optional: rounded corner fronts; 1" fronts for 2-3/4" backset (standard for 2-3/8" backset)

Strike:Wrought brass, bronze or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.

Warranty:Seven-year limited.

Model:Corbin Russwin, CL3510, CL3510NZD, CL3510NZD605, CL3510NZD606, CL3510NZD612, CL3510NZD613, CL3510NZD625, CL3510NZD626, CL3510AZD, CL3510AZD605, CL3510AZD606, CL3510AZD612, CL3510AZD613, CL3510AZD625, CL3510AZD626

Advantages:Non-handed - Solid cast levers -Independent return springs to preventlever sag -Through-bolted cylindrical chassisprevents rotation and ensures properalignment -ANSI Grade 1 certification -Trim and keying compatible with otherCorbin Russwin locksets

Certification/Compliance:ANSIA156.2 Series 4000, Grade 1. Meets 117.1 Accessibility Code.FederalMeets FF-H-106C.California State Reference Code(Formerly Title 19, California State Fire Marshal Standard)All levers with returns comply; levers return to within 1/2" of door face.

C-UL US:All locks listed for A label andlesser class single doors, 4' x 10'.Letter F and UL symbol on latch frontindicate listing.
