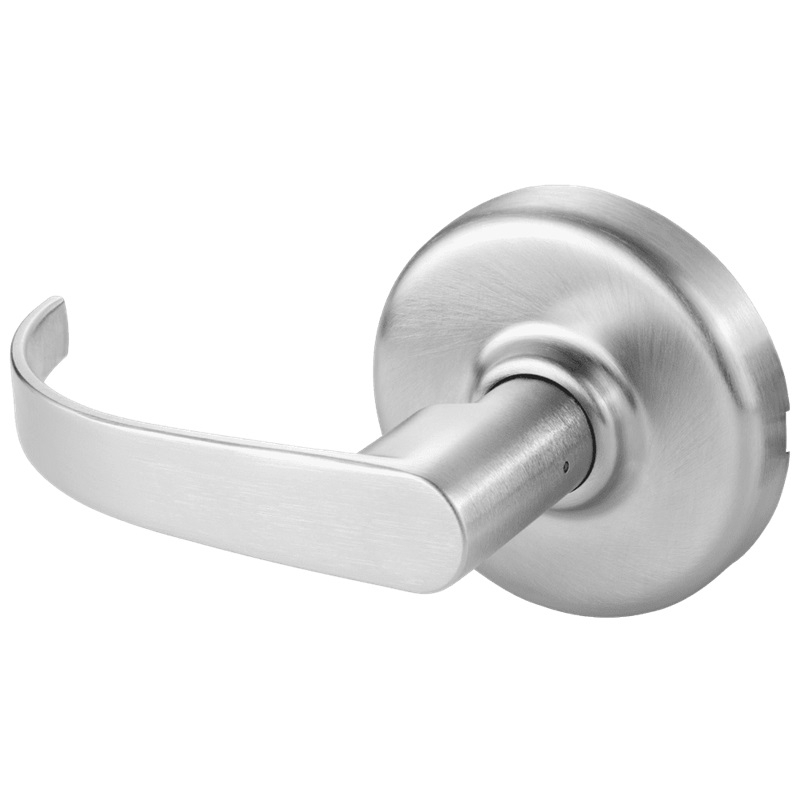

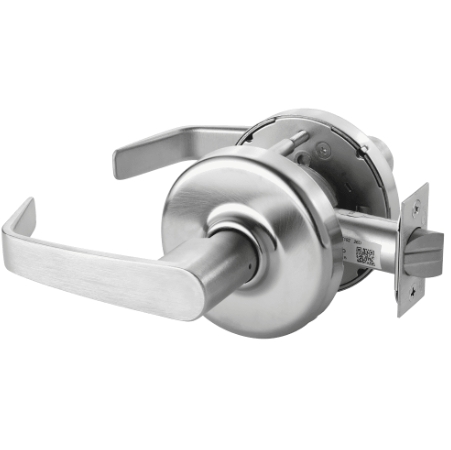

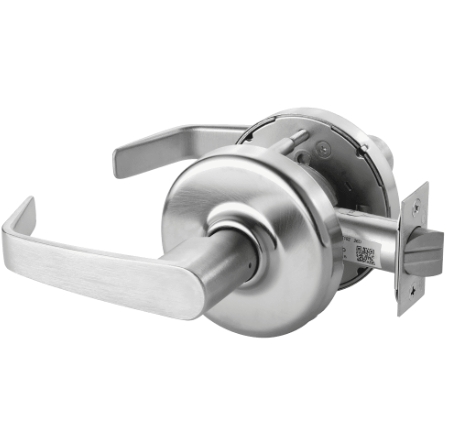

Corbin Russwin CL3850 Grade 2 Half Dummy Trim Cylindrical Lock

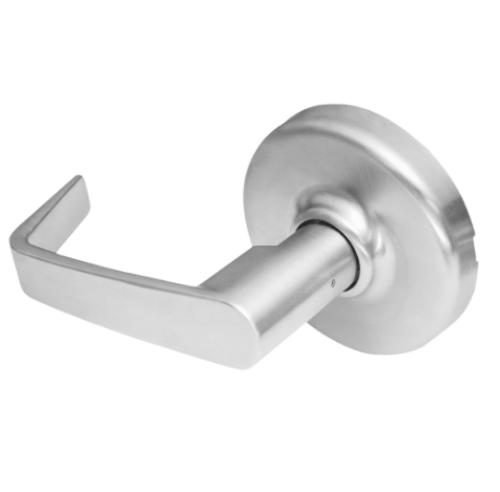

Corbin Russwin CL3850 Half Dummy Lever Trim

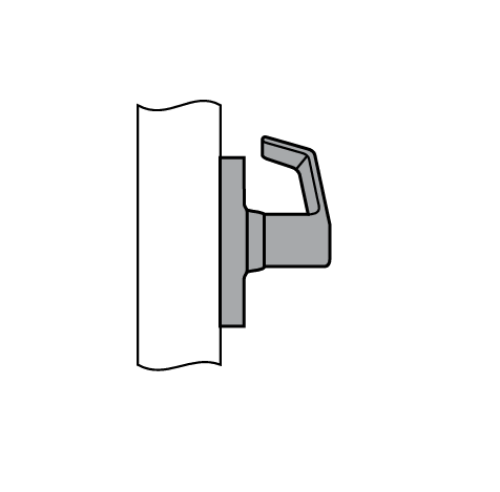

Lever acts as pull only; no operation. Lever is rigid.

Handing: Non-handed.

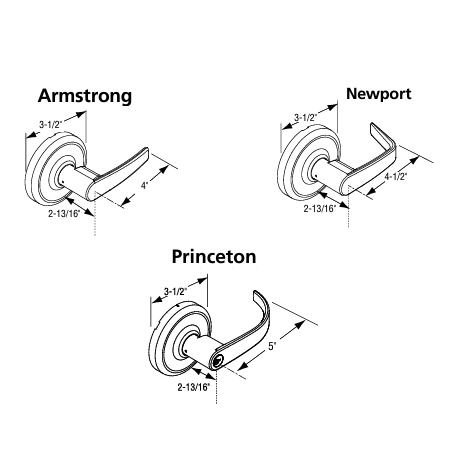

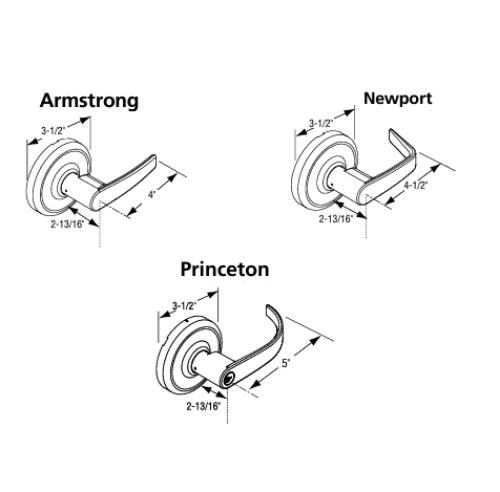

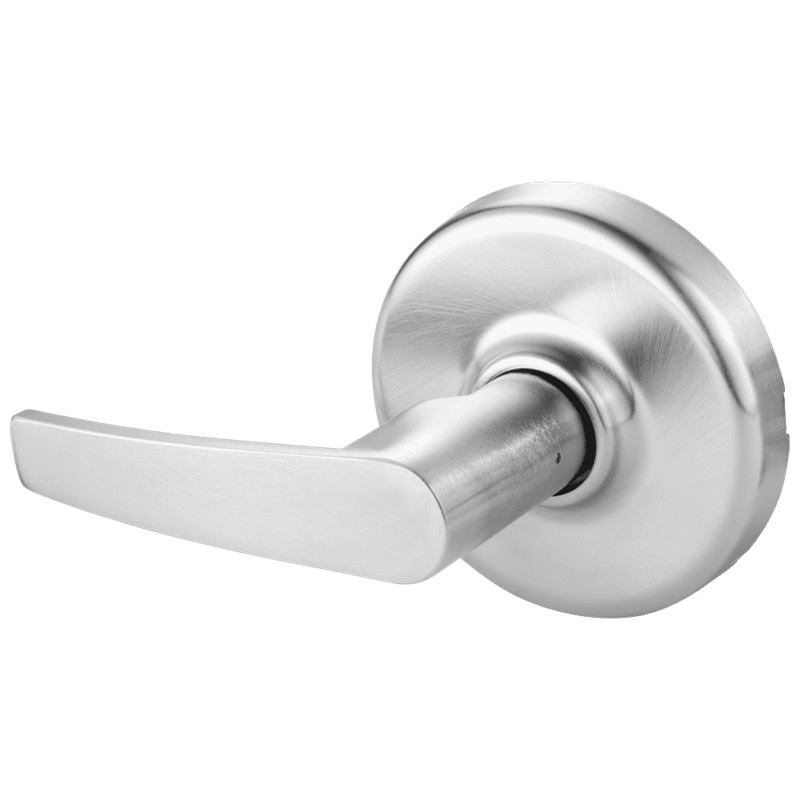

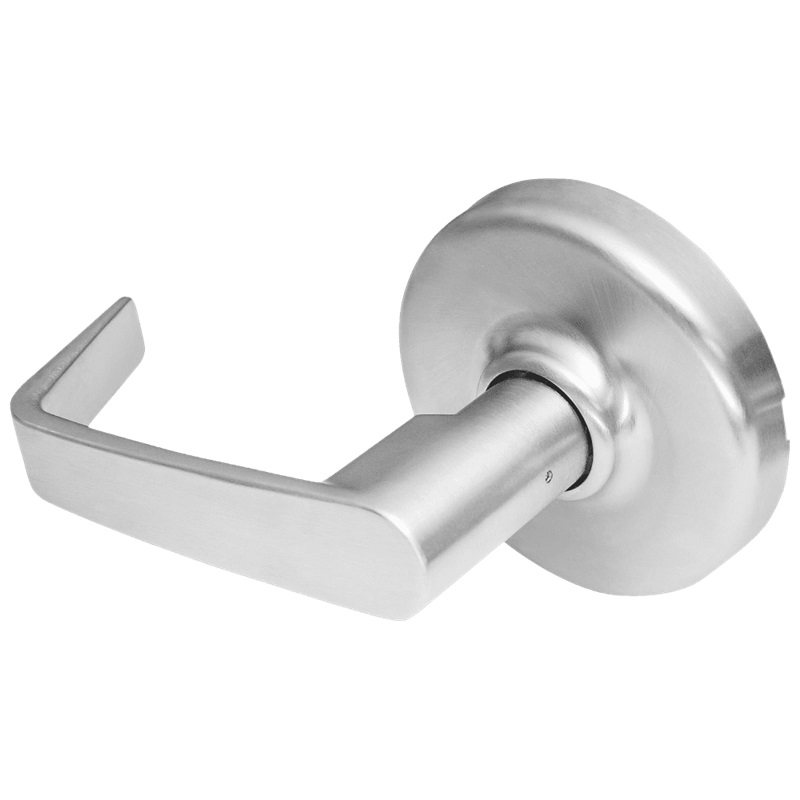

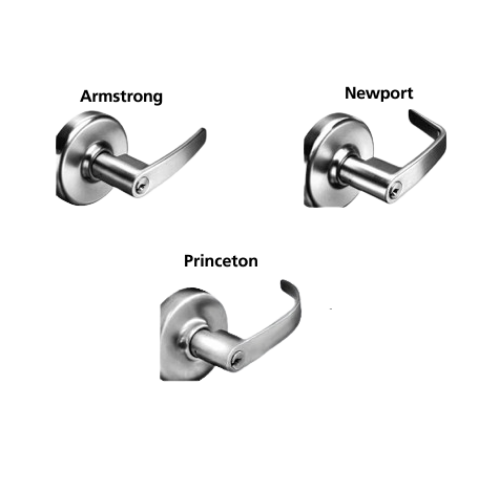

Lever Style: Armstrong AZD, Newport NZD, Princeton PZD

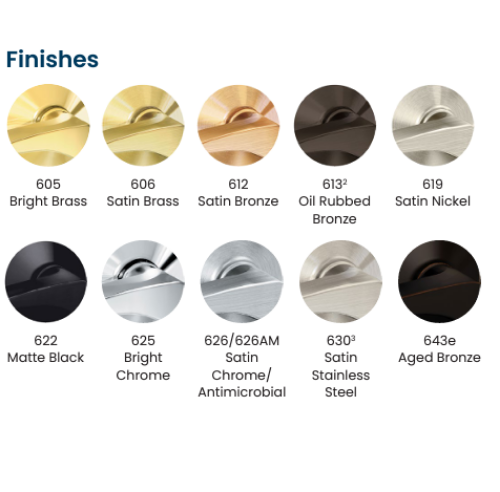

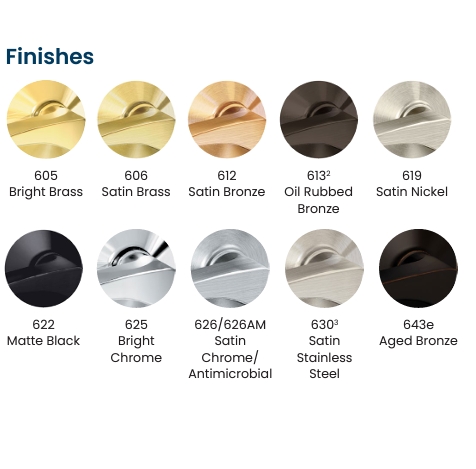

Finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated

Door Thickness: Adjustment Standard 1-3/8" to 1-3/4"; factory set for 1-3/4" doors.

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Backset: 2-3/4" standard. Optional: 2-3/8", 3-3/4" and 5".

Latchbolt: 1/2" throw latch with universalfloatingfront to fit both flat and beveled doors. 2-1/4" x 1-1/8" square corner front for 2-3/4" backset standard.

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Strike: ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Warranty: Seven-year limited.

Model: Corbin Russwin CL3850, AZD, NZD, 605, 606, 612, 613, 625, 626, CL3850AZD, CL3850NZD,  CL3850NZD605, CL3850NZD606, CL3850NZD612, CL3850NZD613, CL3850NZD625, CL3850NZD626, CL3850AZD605, CL3850AZD606, CL3850AZD612, CL3850AZD613, CL3850AZD625, CL3850AZD626

Advantages

Lever Release for vandal resistance

Solid cast levers

ANSI Grade 2 certification

UL 3-hour fire rating

Independent lever return springs

Through-bolts on door for solid attachment

Covers ANSI/DHI door prep A115.18 - 1994 Spider Cut Out

Certification/Compliance

ANSI Meets A156.2 Series 4000, Grade 2. Meets A117.1 Accessibility Code.

Federal Meets FF-H-106C. California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" of door face.

UL /ULc All locks listed for A label single doors. Letter F and UL symbol on latch front indicate listing.
