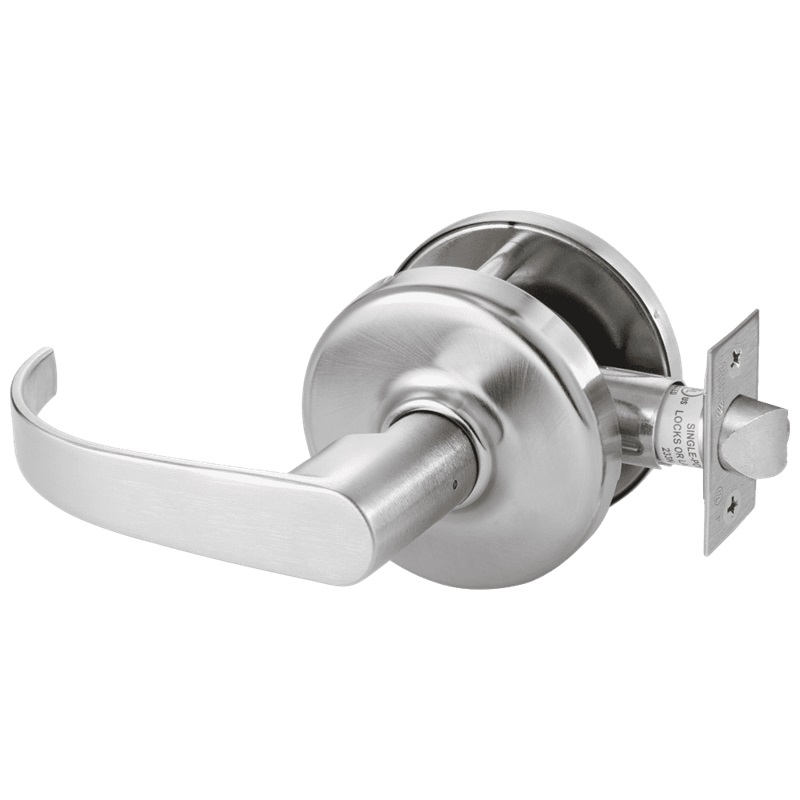

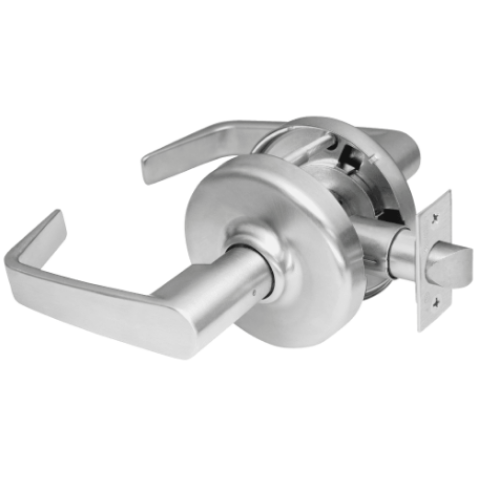

Corbin Russwin CL3880 Grade 2 Passage Lever x Blank Plate Cylindrical Lock

Corbin Russwin CL3880 Grade 2 Passage Lever x Blank Plate, Lever Set

ANSI F111

• Deadlocking latchbolt by lever

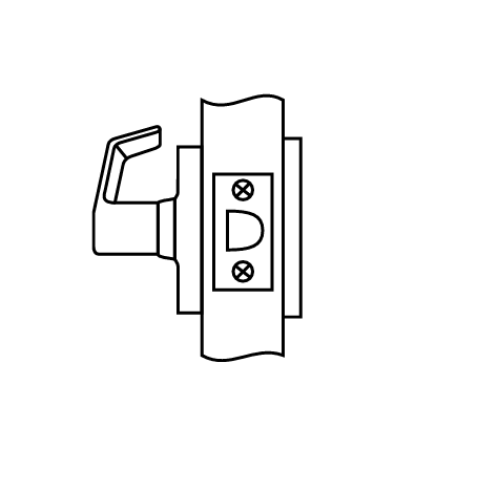

• Lever on one side; blank plate on the other
• Lever always free
• For single or double communicating doors.

Handing: Non-handed.

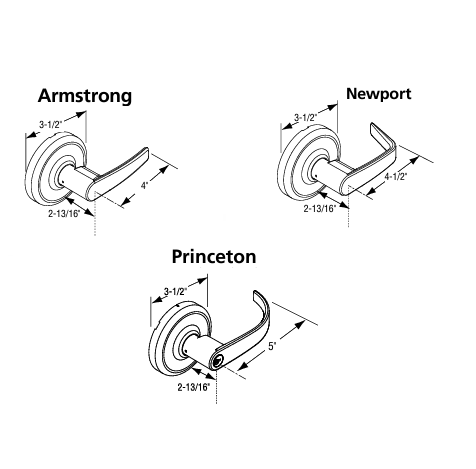

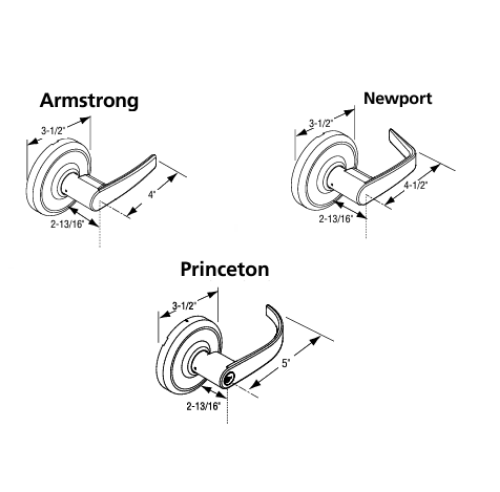

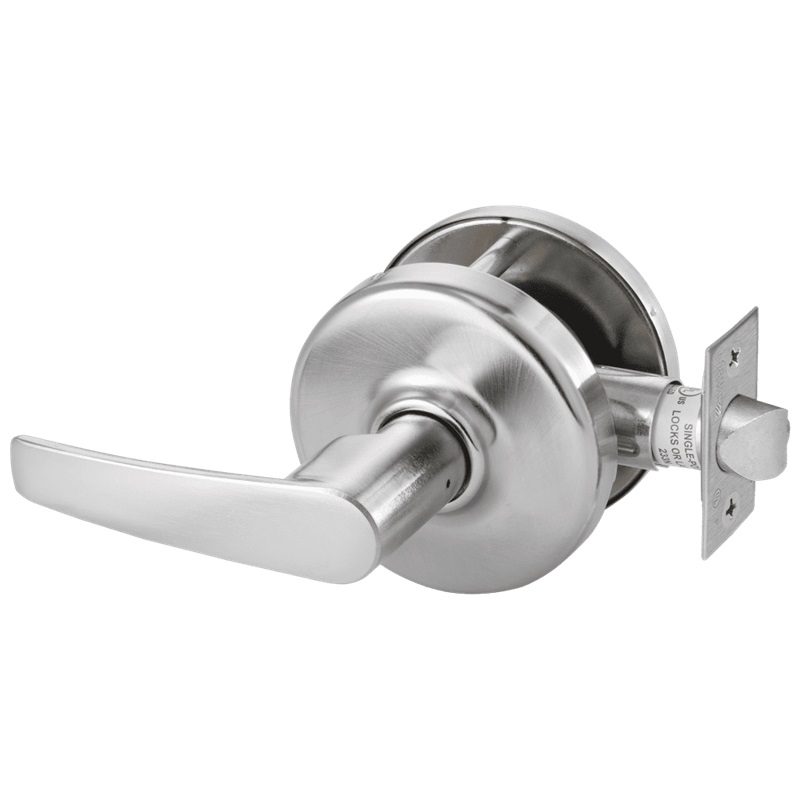

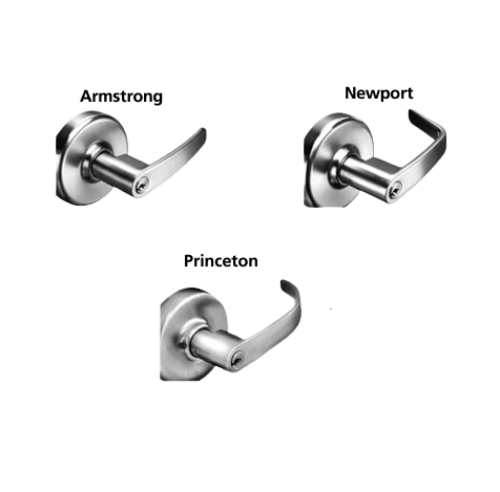

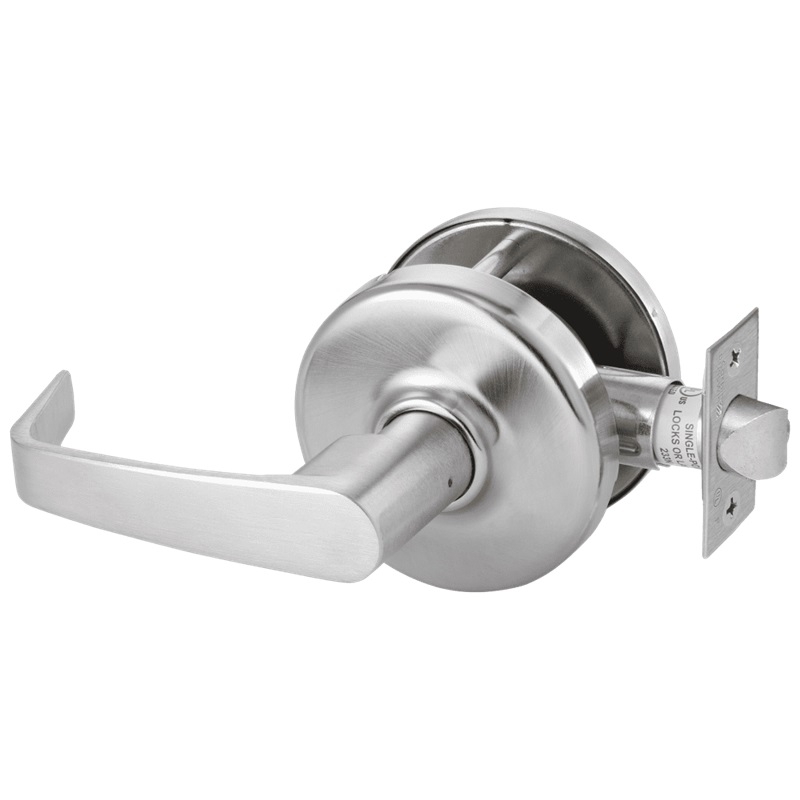

Lever Style: Armstrong AZD, Newport NZD, Princeton PZD

Finishes: 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Dark Oxidized Satin Bronze, Oil Rubbed, 625 (US26) Bright Chromium Plated, 626 (US26D) Satin Chromium Plated

Door Thickness: Adjustment Standard 1-3/8" to 1-3/4"; factory set for 1-3/4" doors.

Lock Chassis: Steel, zinc dichromated for corrosion resistance.

Backset: 2-3/4" standard. Optional: 2-3/8", 3-3/4" and 5".

Latchbolt: 1/2" throw latch with universalfloatingfront to fit both flat and beveled doors. 2-1/4" x 1-1/8" square corner front for 2-3/4" backset standard.

Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.

Strike: ANSI curved lip strike standard, 4-7/8" x 1-1/4" x 1-1/4" lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Warranty: Seven-year limited.

Model: Corbin Russwin CL3880, AZD, NZD, 605, 606, 612, 613, 625, 626, CL3880AZD, CL3880NZD,  CL3880NZD605, CL3880NZD606, CL3880NZD612, CL3880NZD613, CL3880NZD625, CL3880NZD626, CL3880AZD605, CL3880AZD606, CL3880AZD612, CL3880AZD613, CL3880AZD625, CL3880AZD626

Advantages

Lever Releasefor vandalresistance

Solid cast levers

ANSI Grade 2 certification

UL 3-hour fire rating

Independent lever returnsprings

Through-bolts on door forsolid attachment

Covers ANSI/DHI door prepA115.18 - 1994 SpiderCut Out

Certification/Compliance

ANSI Meets A156.2 Series 4000, Grade 2. Meets A117.1 Accessibility Code.

Federal Meets FF-H-106C. California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" of door face.

UL /ULc All locks listed for A label single doors. Letter F and UL symbol on latch front indicate listing.
