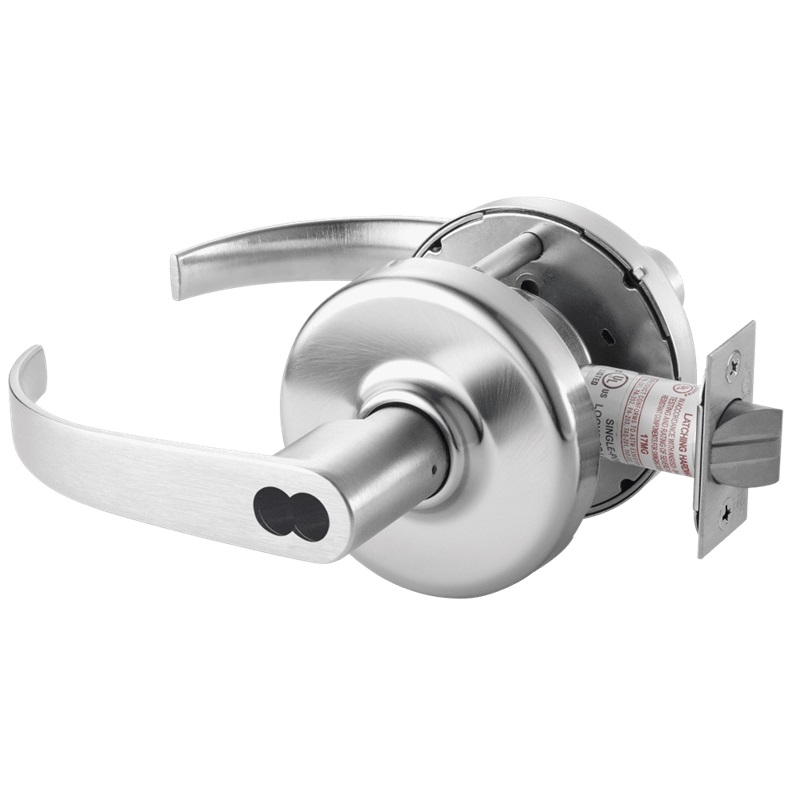

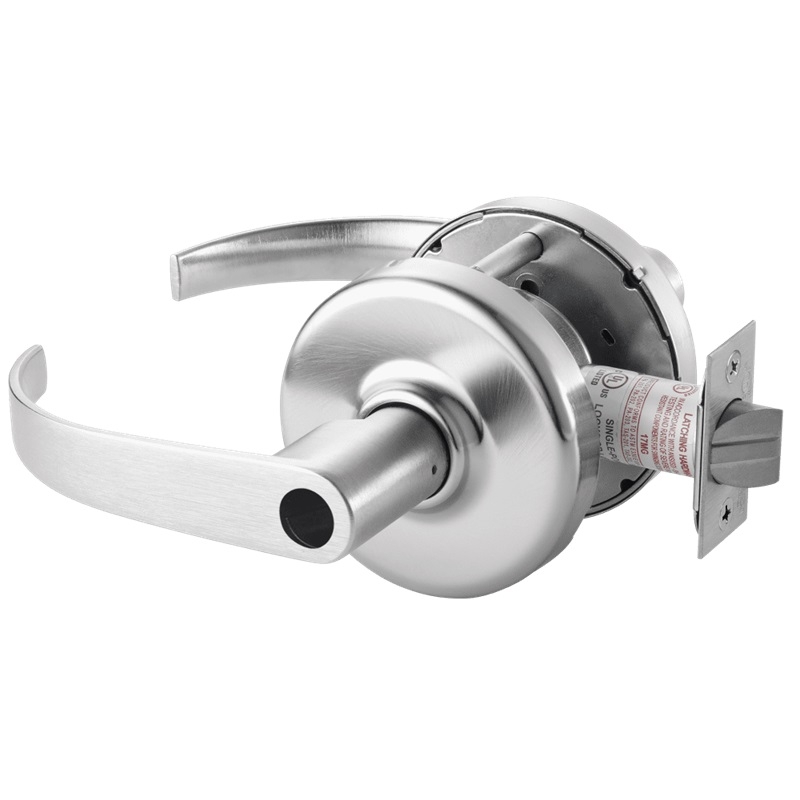

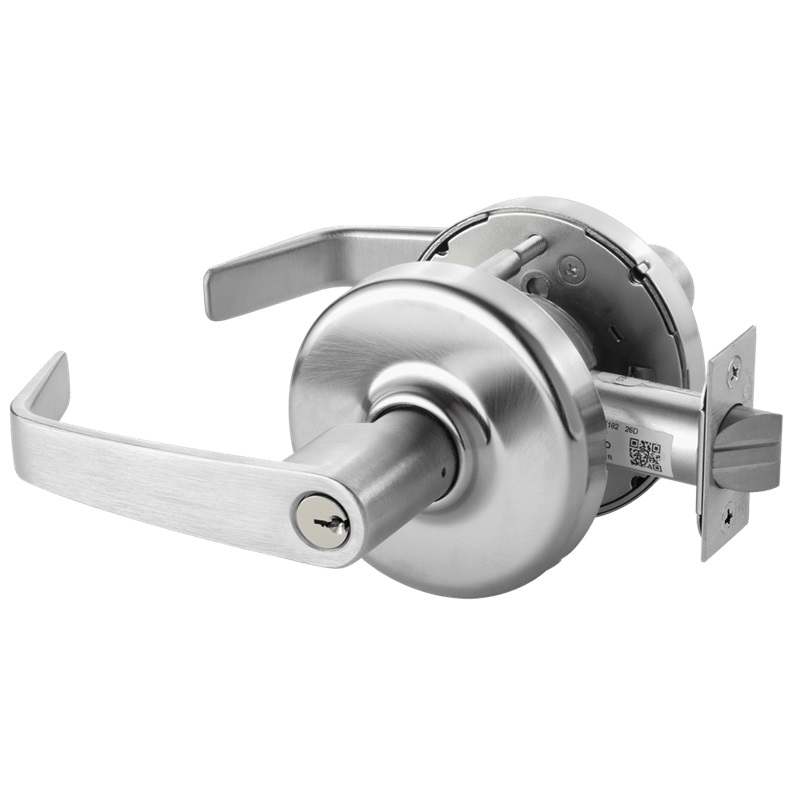

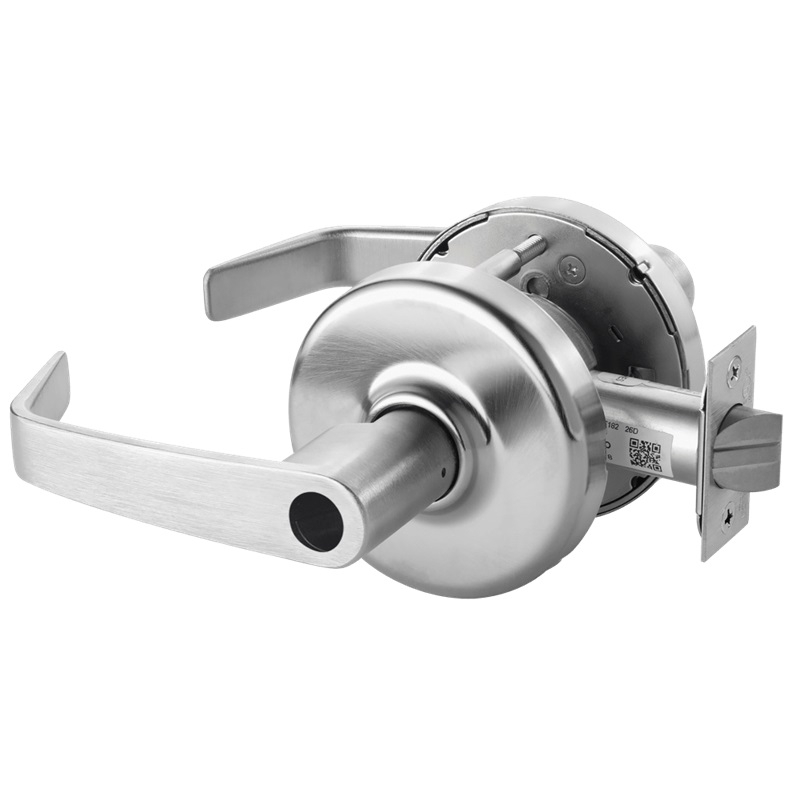

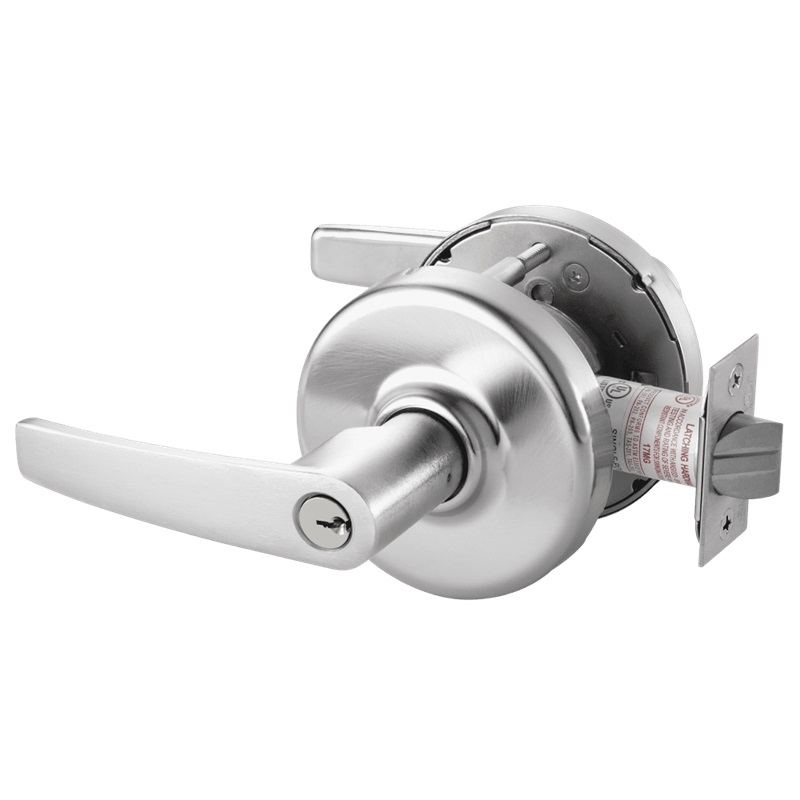

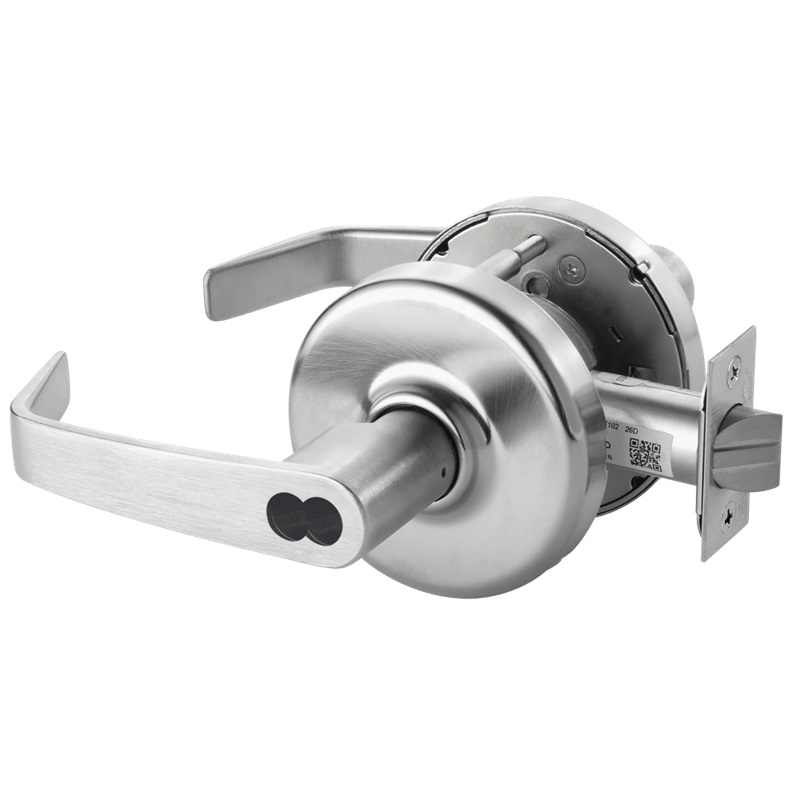

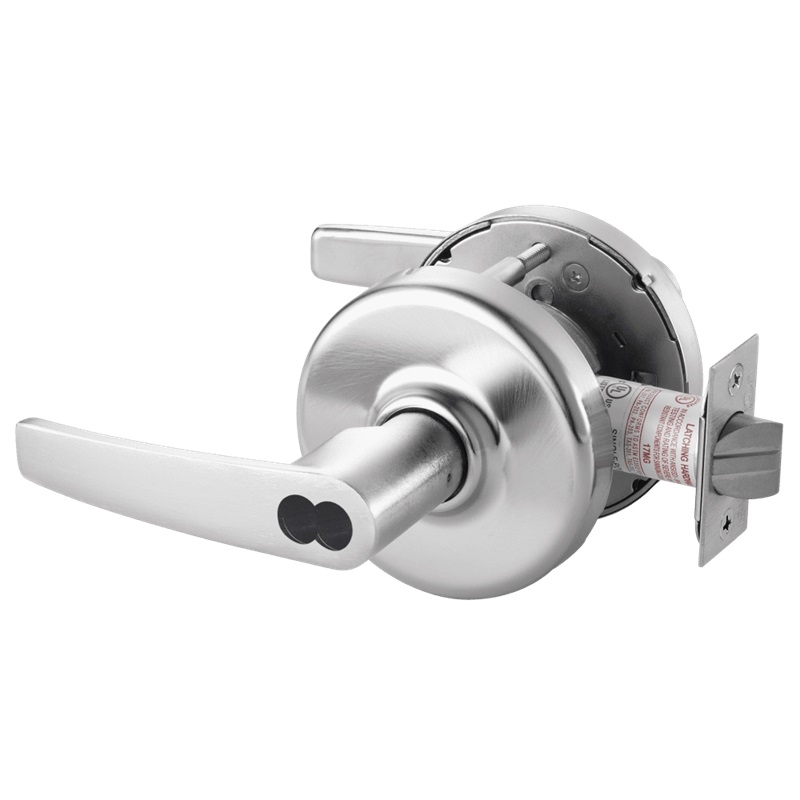

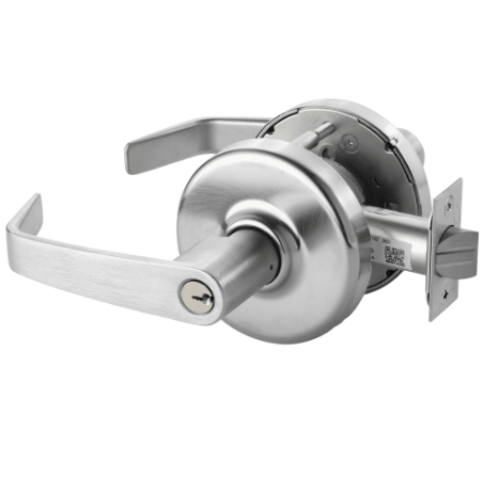

Corbin Russwin CLX3351 Entrance LeverCLX3351

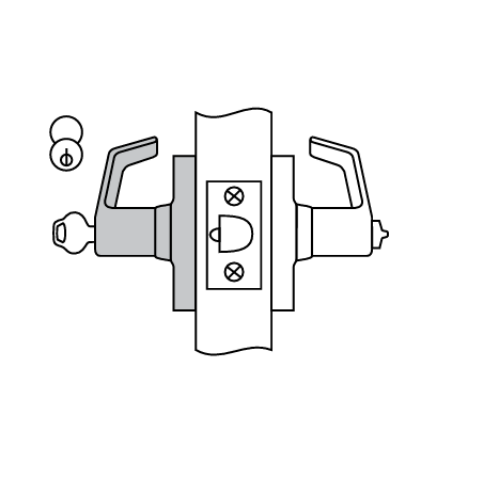

Entrance or Office.
Deadlocking latchbolt by lever either side, except when turn button locks outside lever. Pushing turn button in locks outside lever, requiring use of key outside to unlock. (Lever handle is freewheeling in locked position).
- Turning inside lever unlocks outside lever.
- Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.
- Inside lever always free.
ANSI No.:7F109
Applications :
Heavy duty commercial and institutional interior and exterior doors, Offices, Schools/Universities, Hospitals, Manufacturing facilities.

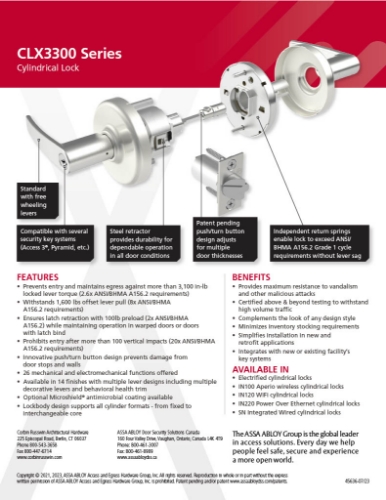

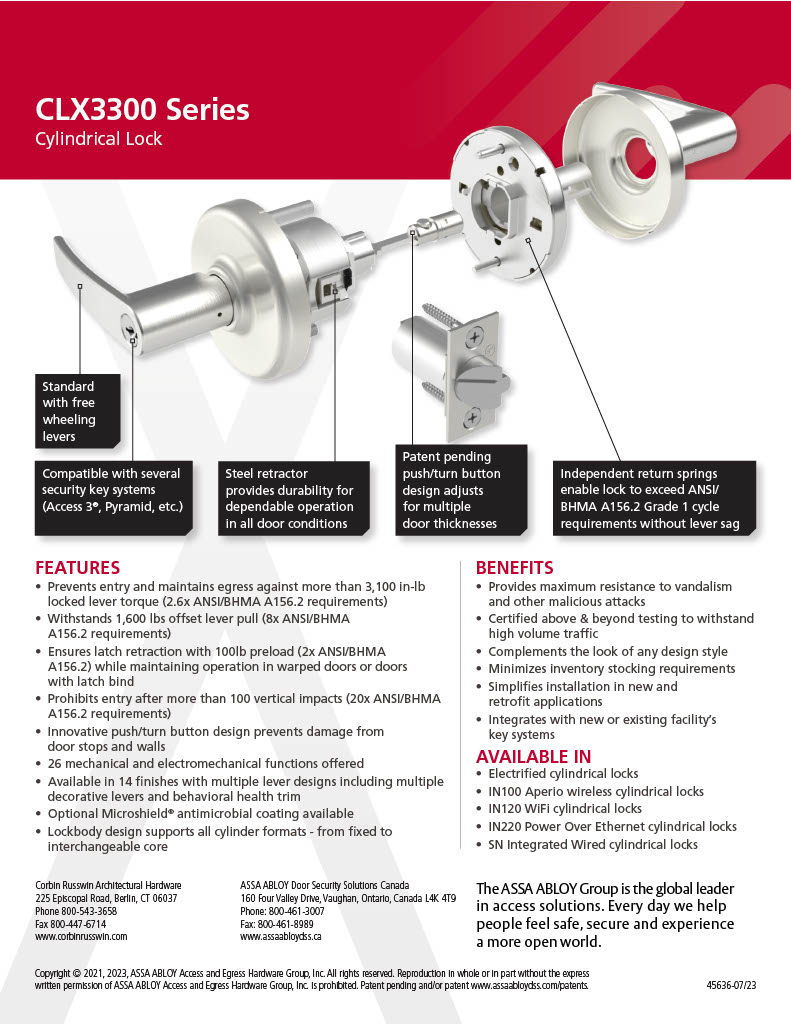

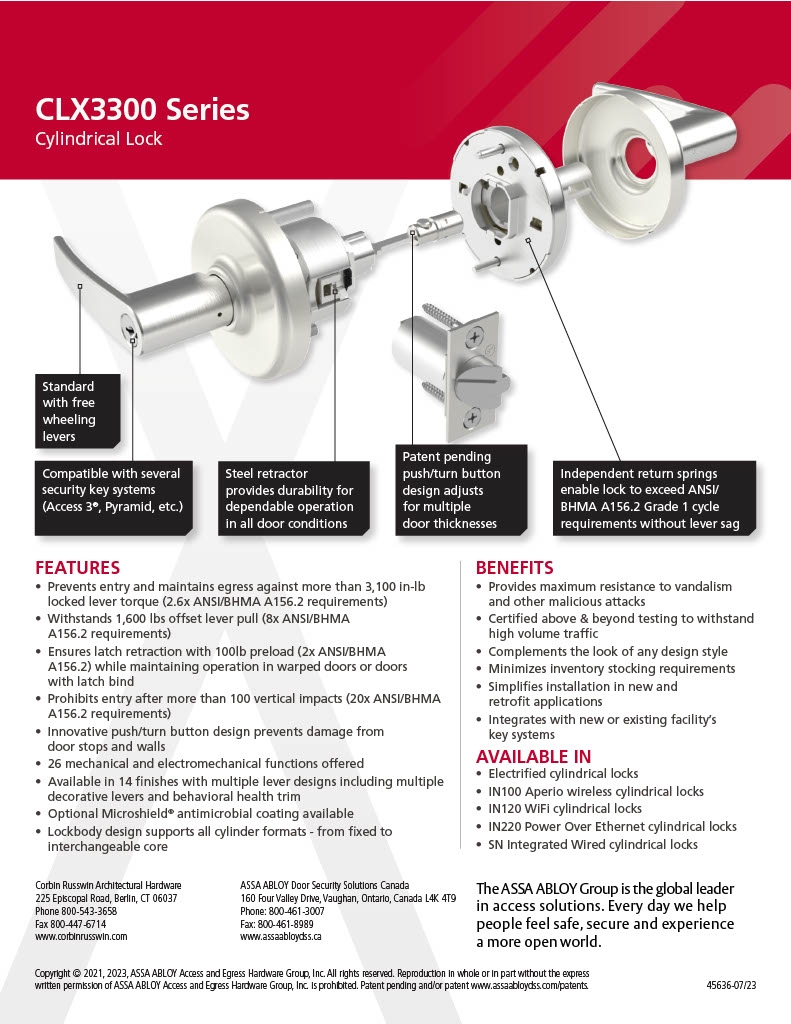

Strength & Durability:
- Exceeds 3,100 in-lb abusive locked lever torque with no entry while maintaining egress (2.6 times ANSI/BHMA A156.2 requirements).
- Exceeds 1,600 lbs offset lever pull with no entry for protection against attacks (8 times ANSI/BHMA A156.2 requirements).
- Latch retraction with 100lb preload (2 times ANSI/BHMA A156.2) while maintaining ANSI/BHMA requirements for operation in warped doors.
- No access with minimum 100 vertical impacts for protection against vandalism attempts (20 times ANSI/BHMA A156.2 requirements).

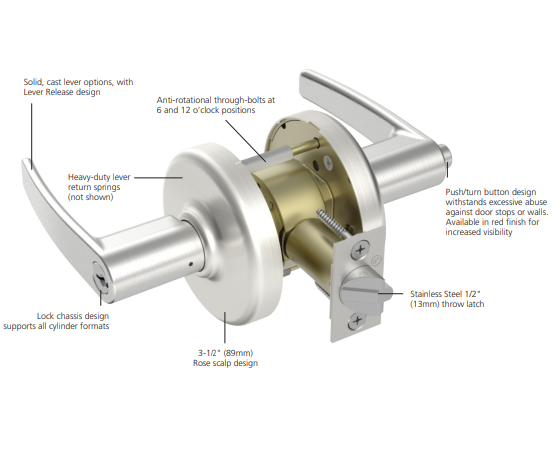

- Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag
- Innovative push/turn button design to withstand excessive abuse against door stops or walls.
Flexibility:
- Lock chassis design supports all cylinder formats allowing flexibility for from fixed core to interchangeable core cylinders.
- High Security and security key systems available (Access 3, Pyramid, etc.).
- Patent pending adjustable push/turn button for easy door thickness adjustment.
- Lever Release freewheeling levers standard for vandal resistance; rigid lever optional.
Broad Offering:
- Available with 26 mechanical functions.
- 14 finishes and MicroShield options.
- Multiple lever options including decorative designs.
Door Prep:
ANSI/BHMA A156.115.
Door Thickness:
- 1-3/4" (44mm) - 2" (51mm) standard.
- 1-3/8" (35mm) thick door, specify Quick Code D138 for Adapter plates.
- Over 2" (51mm) up to 2-1/4" (57mm), specify Quick Code D214.
Minimum Stile:4-1/2" (114mm).
Handing:Non-handed.
Backset:
- 2-3/4" (70mm) backset w/ 1-1/8" front (standard).
- 2-3/8" (60mm) backset w/ 1" wide front (specify Quick Code B238).
- 3-3/4" (95mm) backset w/ 1-1/8" front (specify Quick Code B334).
- 5" (127mm) backset w/ 1-1/8" front (specify Quick Code B500).
Latchbolt:
- Stainless steel, 1/2" (13mm) throw.
- Optional: Brass, 3/4" (19mm) throw deadlocking fire latch for pair of doors (specify Quick Code M16).
Front:
- Wrought brass, bronze, or stainless steel.
- Optional: rounded corners (specify Quick Code M13).
- 2-1/4" x 1-1/8" (57mm x 29mm) standard for 2-3/4" (70mm), 3-3/4" (95mm) and 5" (127mm) backset.
- 2-1/4" x 1" (57mm x 25mm) standard for 2-3/8" (60mm) backset.
- Accommodates flat doors and doors beveled 1/8" in 2" (3mm in 51mm).
Strike:
- Wrought brass or stainless steel.
- ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.
- Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder:Brass, 6-pin L4 keyway, 0-bitted standard.
Keys:Two nickel silver change keys per lock standard.
Masterkeying:Can be master keyed or grand master keyed - Construction key systems available.
Lead Lining:Lead provided between lockbody and spring housing (specify Quick Code M28).
Tactile Levers:Knurling (etching) or abrasive coating (surface tape) applied to backside of levers.
Warranty:Ten-year limited.
ANSI/BHMA:
- Certified ANSI/BHMA A156.2 (2017) Series 4000 - Grade 1.
- Certified ANSI/BHMA A156.41.
UL/cUL:UL/cUL listed to US and Canadian safety standards for 3 hour doors up to 4' x 10' (double doors require 41- option).
NFPA 80:Conforms for life safety and property protection, Standard for Fire Doors and Other Opening Protectives.
Positive Pressure:Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies.
ADA:All levers conform to ADA clear opening width requirements of ANSI A117.1.
California Stat Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face.
Windstorm/Hurricane:
All individual components of a total door opening are required to comply with each code. Refer to the Corbin Russwin Website (http://www.corbinrusswin.com/) for specific code compliance listings for both the lock hardware and other door components.
Model: Corbin Russwin, CLX3351, CLX3351NZD, CLX3351NZD605, CLX3351NZD606, CLX3351NZD612, CLX3351NZD613, CLX3351NZD625, CLX3351NZD626, CLX3351AZD, CLX3351AZD605, CLX3351AZD606, CLX3351AZD612, CLX3351AZD613, CLX3351AZD625, CLX3351AZD626, CLX3351PZD, CLX3351PZD605, CLX3351PZD606, CLX3351PZD612, CLX3351PZD613, CLX3351PZD625, CLX3351PZD626
