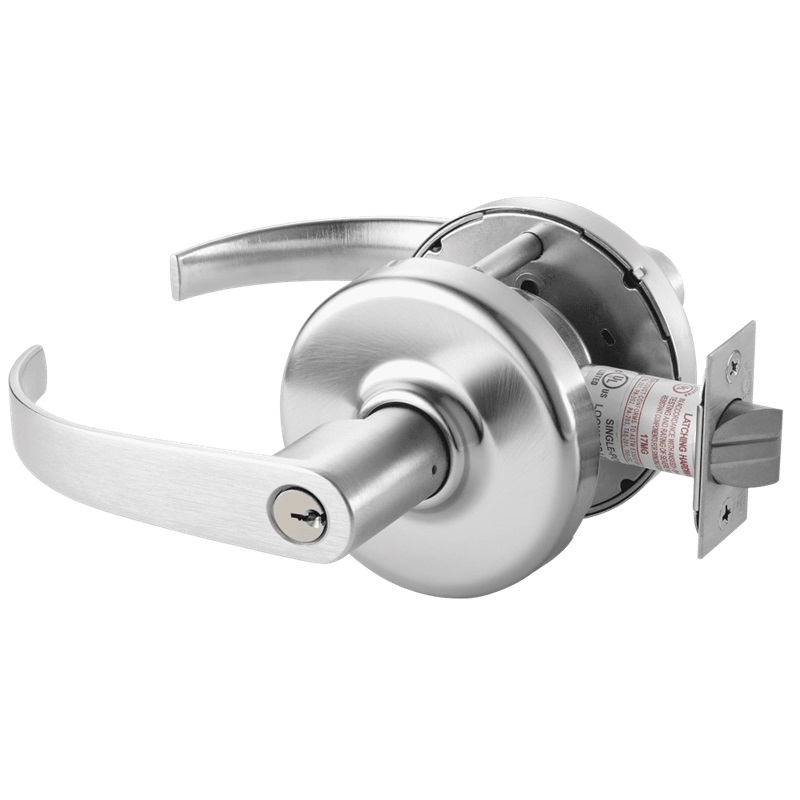

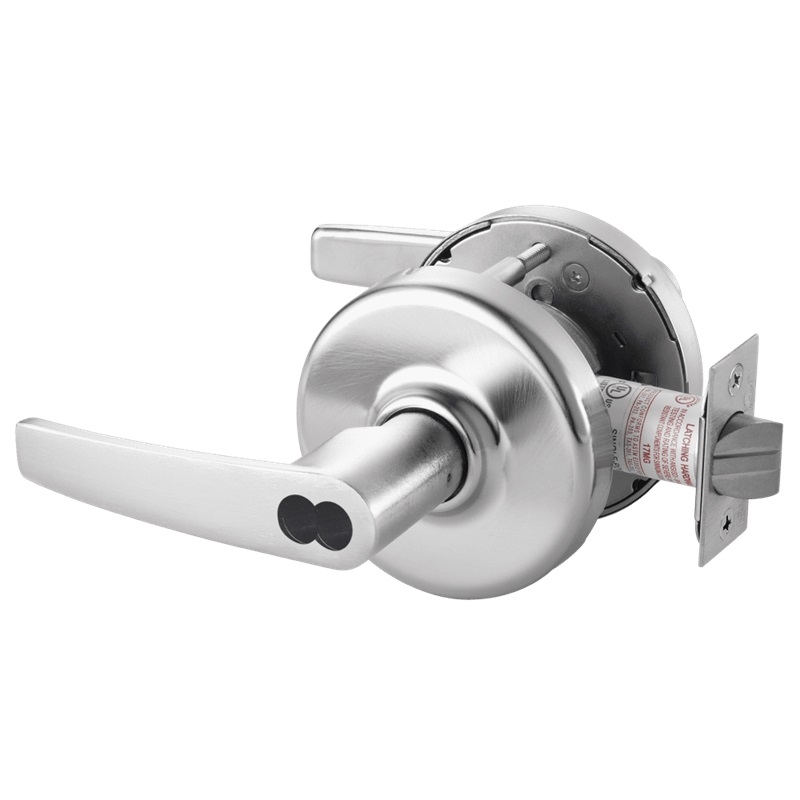

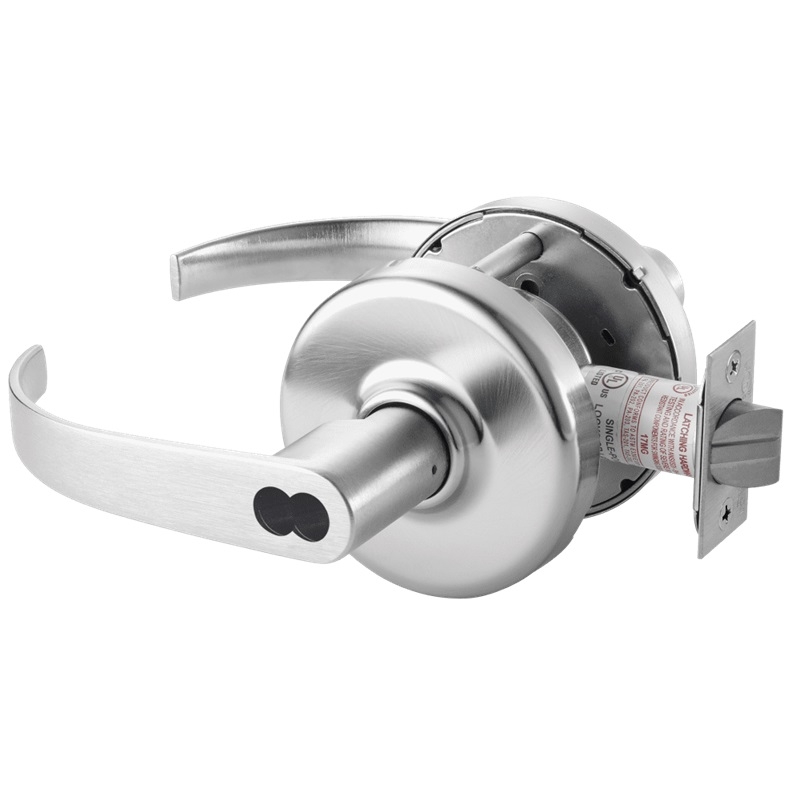

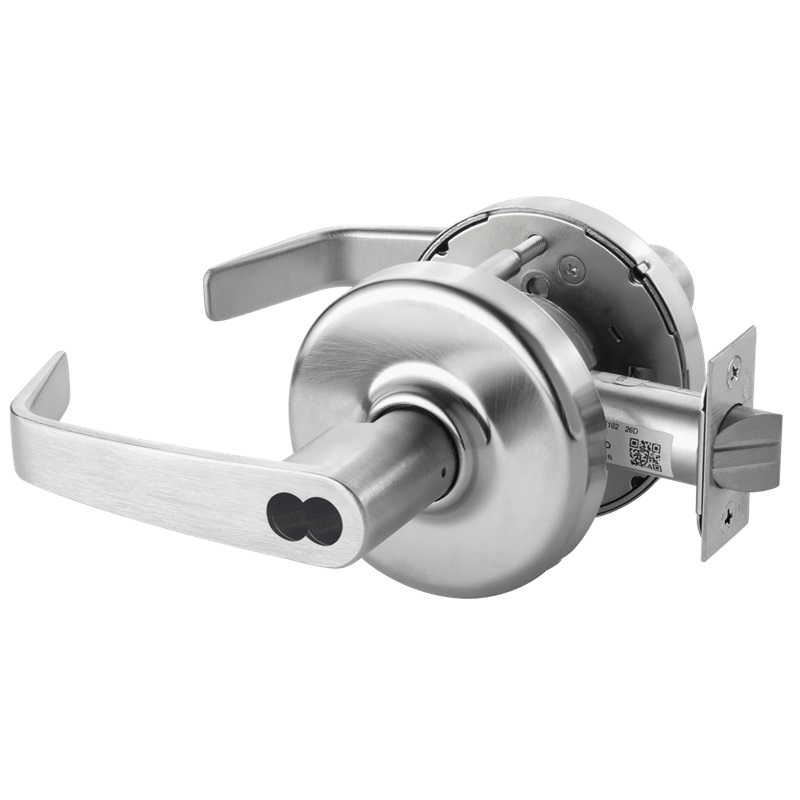

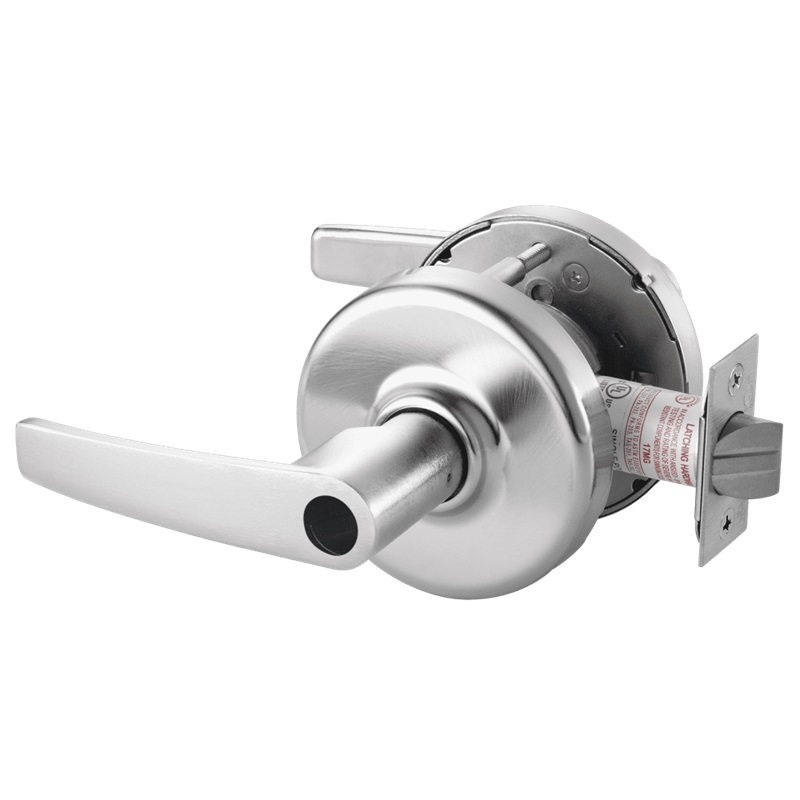

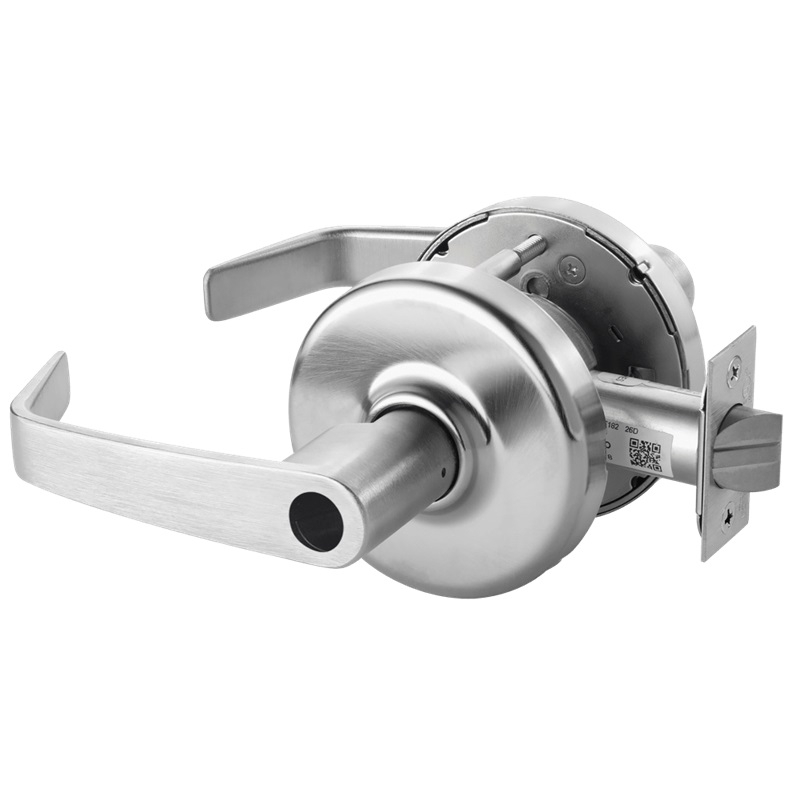

Corbin Russwin CLX3355 Grade 1 Classroom Cylindrical Lock

Corbin Russwin CLX3355 Classroom LeverCLX3355

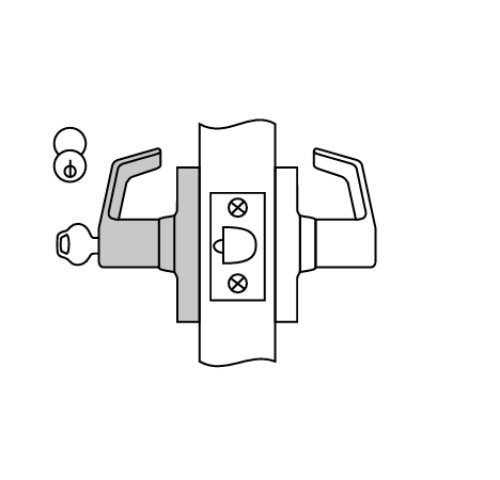

• Classroom.

 - Deadlocking latchbolt by lever either side, except when key outside locks outside lever (lever handle is freewheeling in locked position). -  Outside lever unlocked by key outside. - Inside lever always free.

ANSI No.:7F84

Applications :  Heavy duty commercial and institutional interior and exterior doors,  Offices,  Schools/Universities,  Hospitals, Manufacturing facilities.

Strength & Durability:

• Exceeds 3,100 in-lb abusive locked lever torque with no entry while maintaining egress (2.6 times ANSI/BHMA A156.2 requirements).
• Exceeds 1,600 lbs offset lever pull with no entry for protection against attacks (8 times ANSI/BHMA A156.2 requirements).
• Latch retraction with 100lb preload (2 times ANSI/BHMA A156.2) while maintaining ANSI/BHMA requirements for operation in warped doors.
• No access with minimum 100 vertical impacts for protection against vandalism attempts (20 times ANSI/BHMA A156.2 requirements).

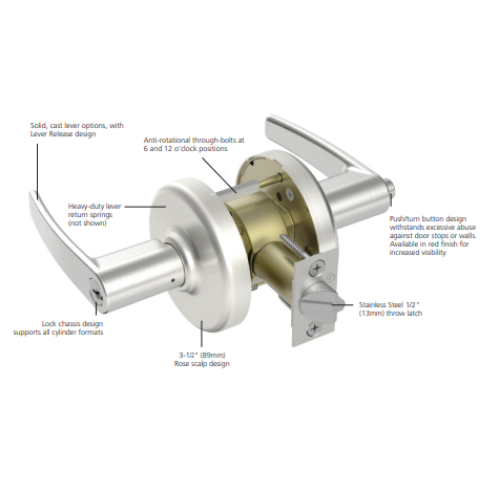

• Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag
• Innovative push/turn button design to withstand excessive abuse against door stops or walls.

Flexibility:

• Lock chassis design supports all cylinder formats allowing flexibility for from fixed core to interchangeable core cylinders.
• High Security and security key systems available (Access 3, Pyramid, etc.).
• Patent pending adjustable push/turn button for easy door thickness adjustment.
• Lever Release  freewheeling levers standard for vandal resistance; rigid lever optional.

Broad Offering:

• Available with 26 mechanical functions.
• 14 finishes and MicroShield options.
• Multiple lever options including decorative designs.

Door Prep: ANSI/BHMA A156.115. Door Thickness:   - 1-3/4" (44mm) - 2" (51mm) standard.   - 1-3/8" (35mm) thick door, specify Quick Code D138 for Adapter plates.   - Over 2" (51mm) up to 2-1/4" (57mm), specify Quick Code D214. Minimum Stile:4-1/2" (114mm). Handing:Non-handed. Backset:   - 2-3/4" (70mm) backset w/ 1-1/8" front (standard).   - 2-3/8" (60mm) backset w/ 1" wide front (specify Quick Code B238).   - 3-3/4" (95mm) backset w/ 1-1/8" front (specify Quick Code B334).   - 5" (127mm) backset w/ 1-1/8" front (specify Quick Code B500). Latchbolt:   - Stainless steel, 1/2" (13mm) throw.   - Optional: Brass, 3/4" (19mm) throw deadlocking fire latch for pair of doors (specify Quick Code M16). Front:   - Wrought brass, bronze, or stainless steel.   - Optional: rounded corners (specify Quick Code M13).   - 2-1/4" x 1-1/8" (57mm x 29mm) standard for 2-3/4" (70mm), 3-3/4" (95mm) and 5" (127mm) backset.   - 2-1/4" x 1" (57mm x 25mm) standard for 2-3/8" (60mm) backset.   - Accommodates flat doors and doors beveled 1/8" in 2" (3mm in 51mm). Strike:   - Wrought brass or stainless steel.   - ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.   - Optional strikes, lip lengths and ANSI wrought strike box available. Cylinder:Brass, 6-pin L4 keyway, 0-bitted standard. Keys:Two nickel silver change keys per lock standard. Masterkeying:Can be master keyed or grand master keyed - Construction key systems available. Lead Lining:Lead provided between lockbody and spring housing (specify Quick Code M28). Tactile Levers:Knurling (etching) or abrasive coating (surface tape) applied to backside of levers. Warranty:Ten-year limited.

ANSI/BHMA:   - Certified ANSI/BHMA A156.2 (2017) Series 4000 - Grade 1.   - Certified ANSI/BHMA A156.41. UL/cUL:UL/cUL listed to US and Canadian safety standards for 3 hour doors up to 4' x 10' (double doors require 41- option). NFPA 80:Conforms for life safety and property protection, Standard for Fire Doors and Other Opening Protectives. Positive Pressure:Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies. ADA:All levers conform to ADA clear opening width requirements of ANSI A117.1. California Stat Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face. Windstorm/Hurricane: All individual components of a total door opening are required to comply with each code. Refer to the Corbin Russwin Website (http://www.corbinrusswin.com/) for specific code compliance listings for both  the lock hardware and other door components.

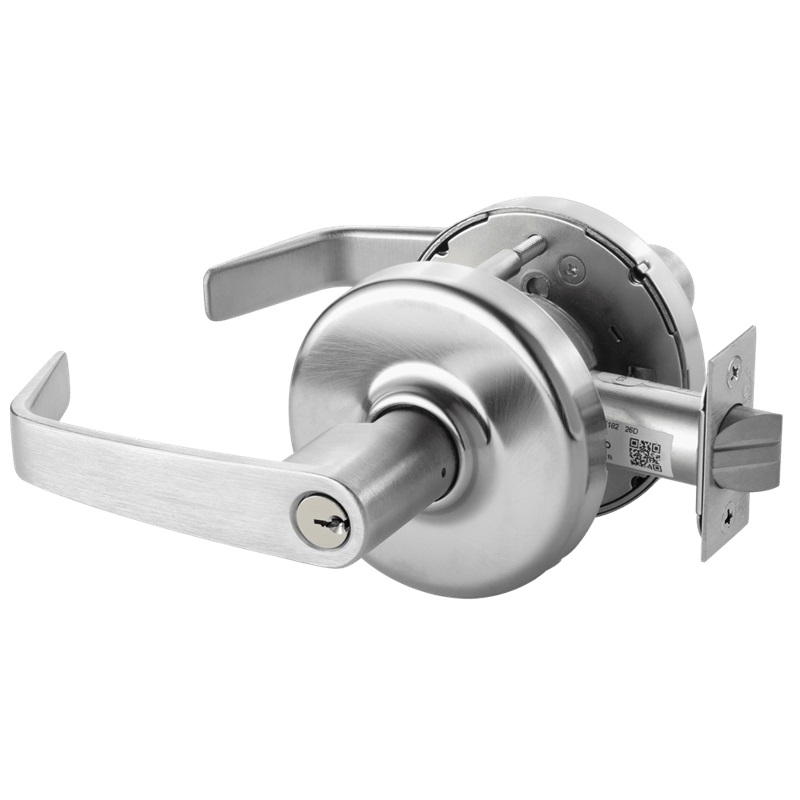

Model: Corbin Russwin, CLX3355, CLX3355NZD, CLX3355NZD605, CLX3355NZD606, CLX3355NZD612, CLX3355NZD613, CLX3355NZD625, CLX3355NZD626, CLX3355AZD, CLX3355AZD605, CLX3355AZD606, CLX3355AZD612, CLX3355AZD613, CLX3355AZD625, CLX3355AZD626, CLX3355PZD, CLX3355PZD605, CLX3355PZD606, CLX3355PZD612, CLX3355PZD613, CLX3355PZD625, CLX3355PZD626
