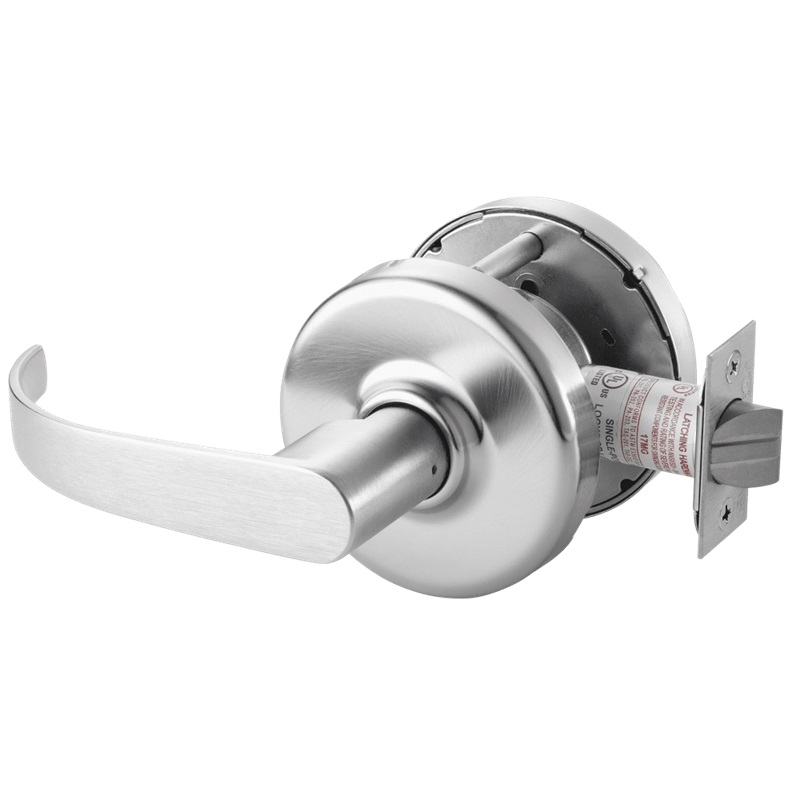

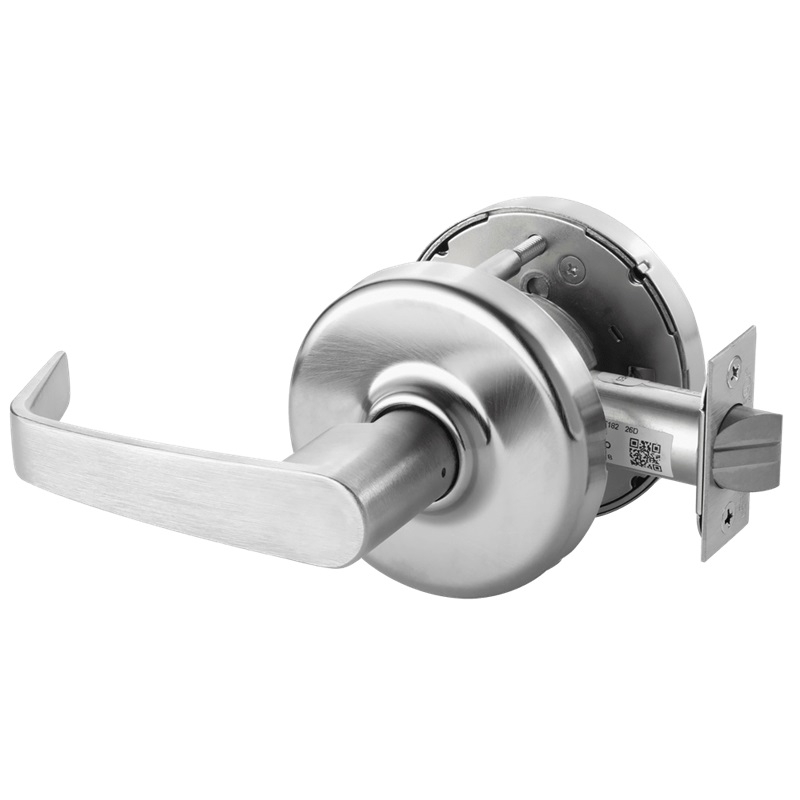

Corbin Russwin CLX3370 Grade 1 Passage Lever x Blank Plate Lock Cylindrical Lock

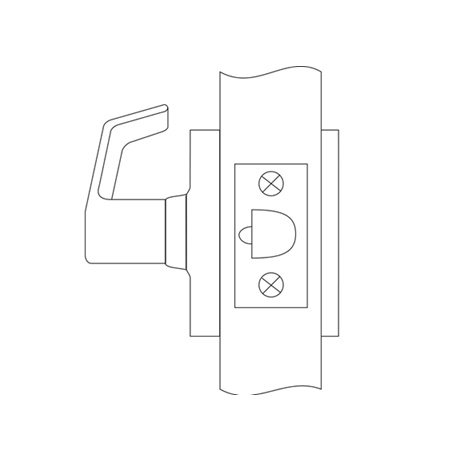

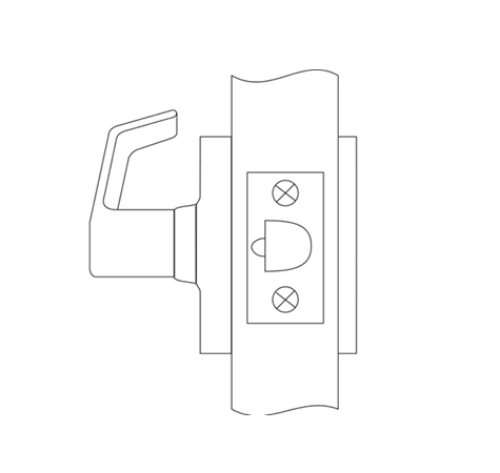

Function: CLX3380 - Passage Lever x Blank Plate

Deadlocking latchbolt by lever.Lever on one side; blank plate on other side.Lever always free.For single or double communicating doors.

ANSI No.: F111

Applications : Heavy duty commercial and institutional interior and exterior doors,  Offices,  Schools/Universities,  Hospitals, Manufacturing facilities.

Strength & Durability:

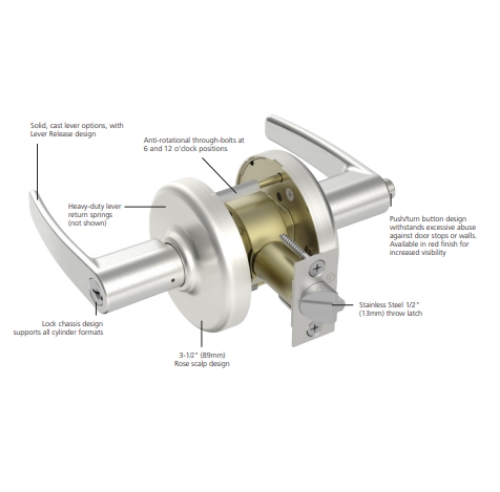

 Exceeds 3,100 in-lb abusive locked lever torque with no entry while maintaining egress (2.6 times ANSI/BHMA A156.2 requirements). Exceeds 1,600 lbs offset lever pull with no entry for protection against attacks (8 times ANSI/BHMA A156.2 requirements). Latch retraction with 100lb preload (2 times ANSI/BHMA A156.2) while maintaining ANSI/BHMA requirements for operation in warped doors. No access with minimum 100 vertical impacts for protection against vandalism attempts (20 times ANSI/BHMA A156.2 requirements). Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag Innovative push/turn button design to withstand excessive abuse against door stops or walls.

Flexibility:

 Lock chassis design supports all cylinder formats allowing flexibility for from fixed core to interchangeable core cylinders. High Security and security key systems available (Access 3, Pyramid, etc.). Patent pending adjustable push/turn button for easy door thickness adjustment. Lever Release freewheeling levers standard for vandal resistance; rigid lever optional.

Broad Offering:

 Available with 26 mechanical functions. 14 finishes and MicroShield options. Multiple lever options including decorative designs.

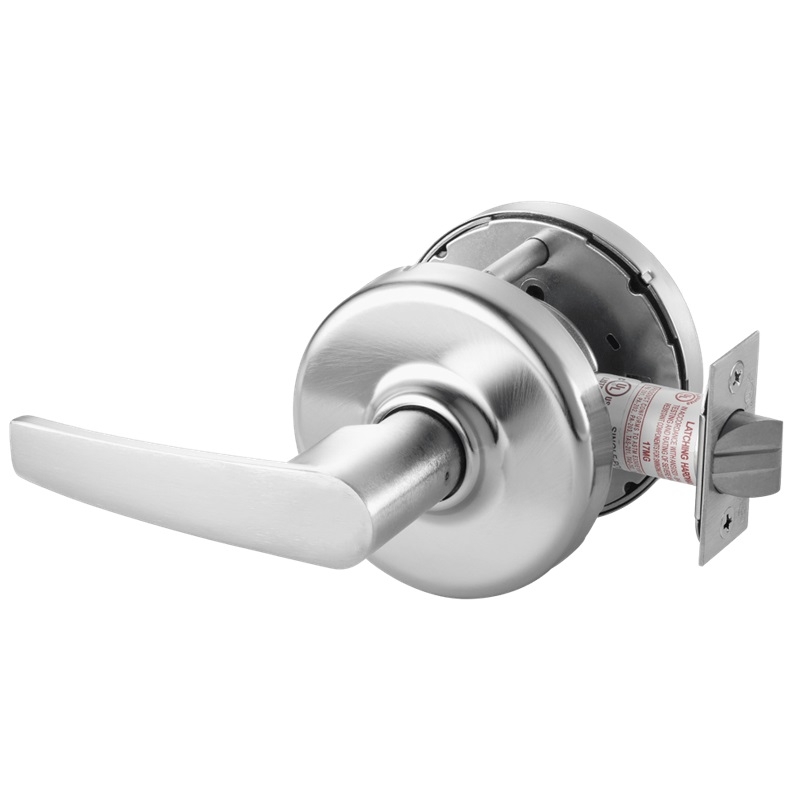

Model: Corbin Russwin CLX3300, CLX3380, CLX3380NZD, CLX3380NZD605, CLX3380NZD606, CLX3380NZD612, CLX3380NZD613, CLX3380NZD625, CLX3380NZD626, CLX3380AZD, CLX3380AZD605, CLX3380AZD606, CLX3380AZD612, CLX3380AZD613, CLX3380AZD625, CLX3380AZD626, CLX3380PZD, CLX3380PZD605, CLX3380PZD606, CLX3380PZD612, CLX3380PZD613, CLX3380PZD625, CLX3380PZD626

Door Prep: ANSI/BHMA A156.115.

Door Thickness:   - 1-3/4" (44mm) - 2" (51mm) standard.   - 1-3/8" (35mm) thick door, specify Quick Code D138 for Adapter plates.   - Over 2" (51mm) up to 2-1/4" (57mm), specify Quick Code D214. Minimum Stile: 4-1/2" (114mm). Handing: Non-handed. Backset:   - 2-3/4" (70mm) backset w/ 1-1/8" front (standard).   - 2-3/8" (60mm) backset w/ 1" wide front (specify Quick Code B238).   - 3-3/4" (95mm) backset w/ 1-1/8" front (specify Quick Code B334).   - 5" (127mm) backset w/ 1-1/8" front (specify Quick Code B500). Latchbolt:   - Stainless steel, 1/2" (13mm) throw.   - Optional: Brass, 3/4" (19mm) throw deadlocking fire latch for pair of doors (specify Quick Code M16). Front:   - Wrought brass, bronze, or stainless steel.   - Optional: rounded corners (specify Quick Code M13).   - 2-1/4" x 1-1/8" (57mm x 29mm) standard for 2-3/4" (70mm), 3-3/4" (95mm) and 5" (127mm) backset.   - 2-1/4" x 1" (57mm x 25mm) standard for 2-3/8" (60mm) backset.   - Accommodates flat doors and doors beveled 1/8" in 2" (3mm in 51mm). Strike:   - Wrought brass or stainless steel.   - ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.   - Optional strikes, lip lengths and ANSI wrought strike box available. Masterkeying: Can be master keyed or grand master keyed - Construction key systems available. Lead Lining: Lead provided between lockbody and spring housing (specify Quick Code M28). Tactile Levers: Knurling (etching) or abrasive coating (surface tape) applied to backside of levers. Warranty: Ten-year limited.

CertificationsEnvironmental Product Declaration (EPD) CSFM - California State Fire Marshal Approved (old) Florida Building Code Approved FL# 3067 UL listed and UL10c compliant Americans with Disabilities Act (ADA) Compliant UL-cUL Listed for use on fire doors having a rating up to and including 3-hours NFPA 80 Compliant Florida Building Code Windstorm Certified UL 437 listed when using Access 3 and Pyramid high-security UL 437 cylinders ANSI/BHMA A156.2, Series 4000, Grade 1Windstorm/Hurricane: All individual components of a total door opening are required to comply with each code. Refer to the Corbin Russwin Website (http://www.corbinrusswin.com/) for specific code compliance listings for both  the lock hardware and other door components.
